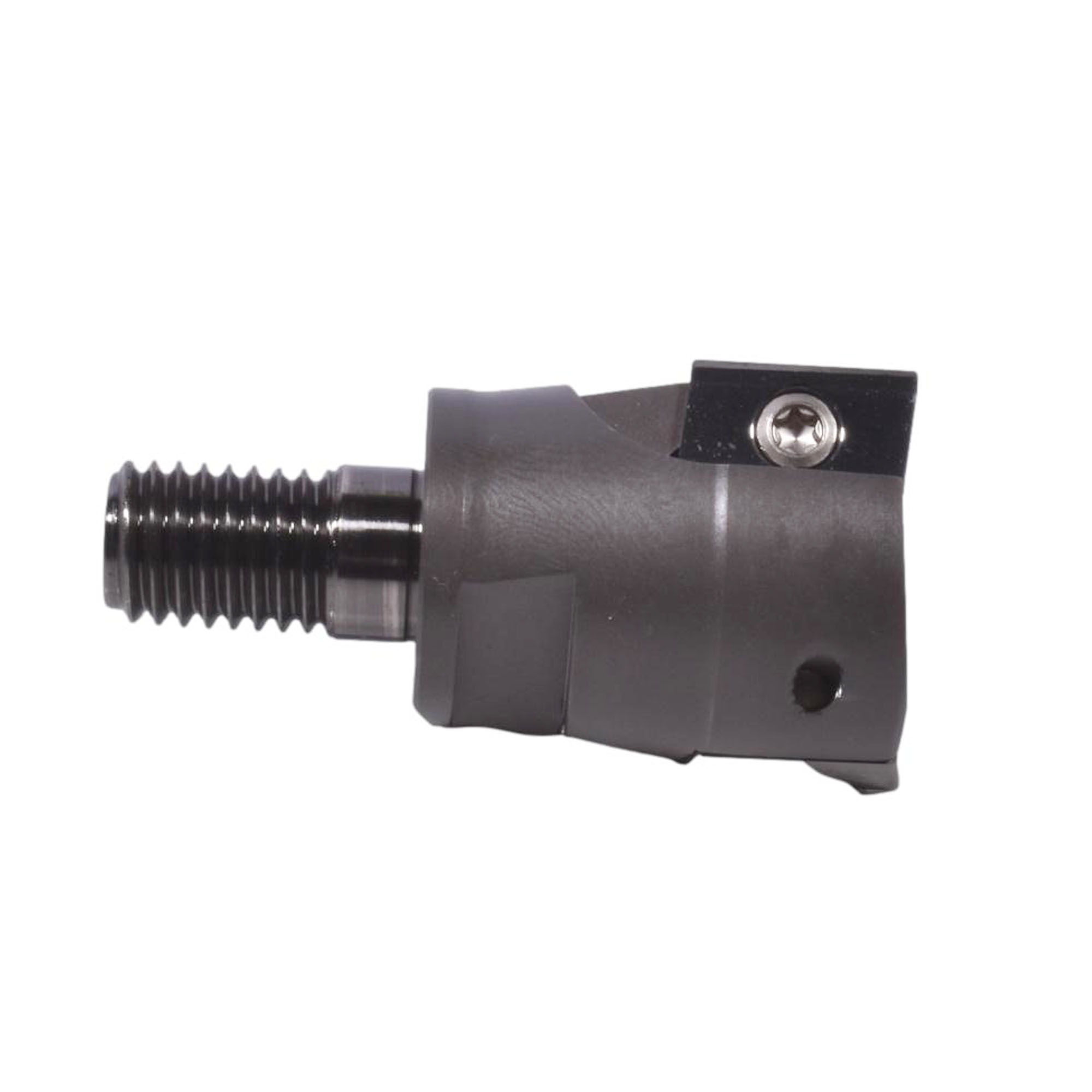

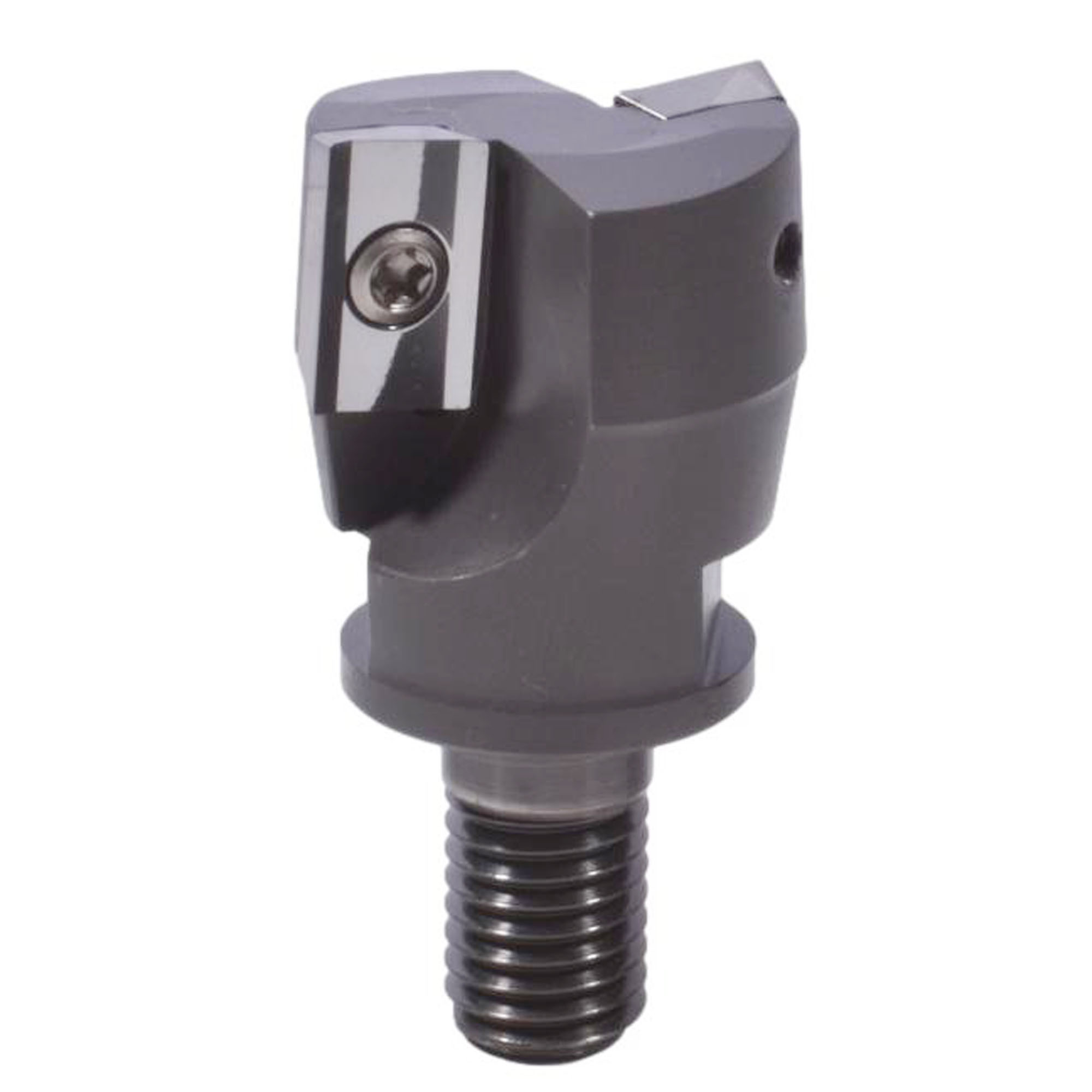

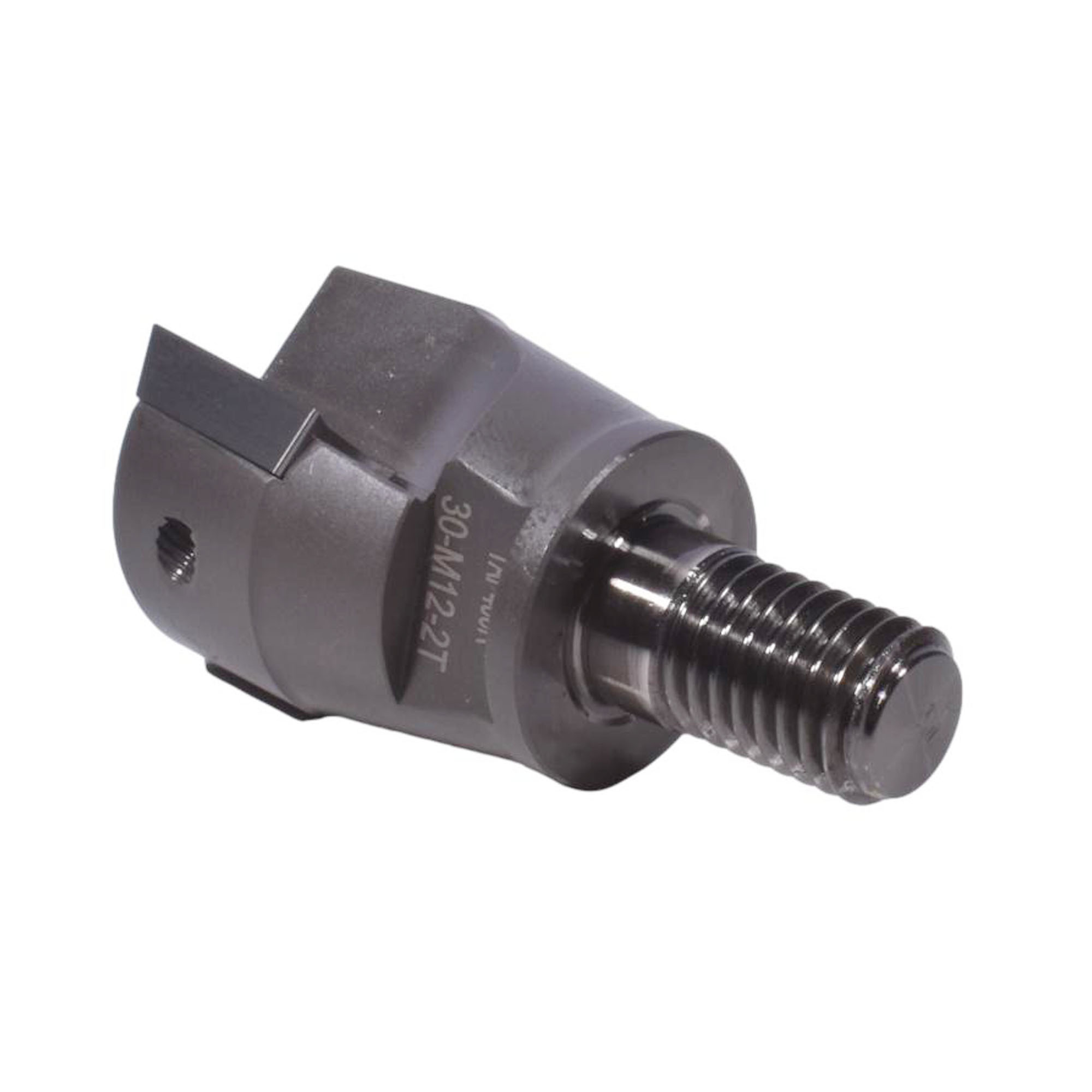

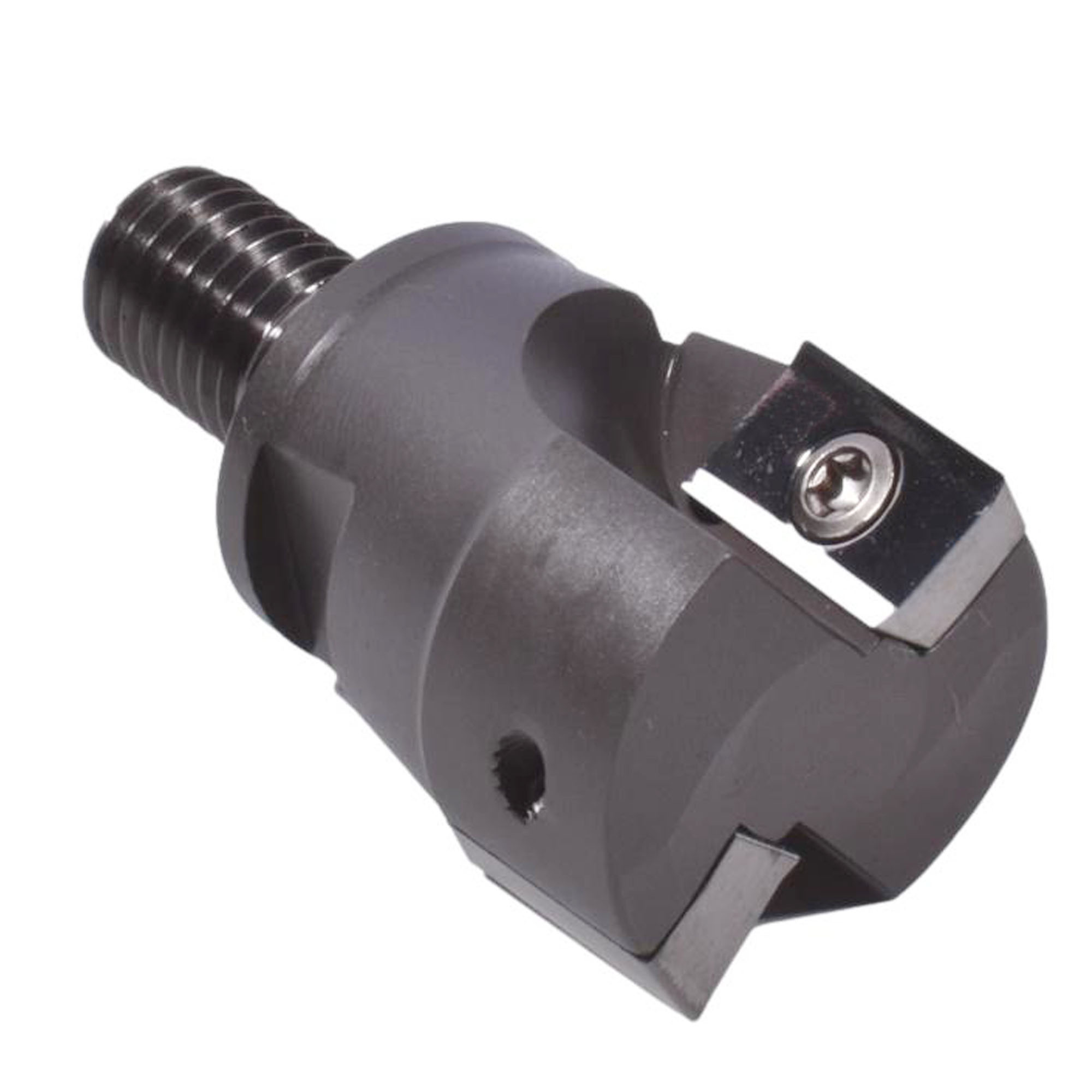

NEW 400R M12 MODULAR INSERT CUTTER 30MM +2PC APMT1604CARBIDE INSERTS ALUMINUM

In Stock

SKU: TAP400R302TA

$69.99

 NEW 400R M12 MODULAR INSERT CUTTER 30MM +2PC APMT1604 CARBIDE INSERTS

2PCS CARBIDE FOR ALUMINUM, KEY  INCLUDED

Qty
Compare

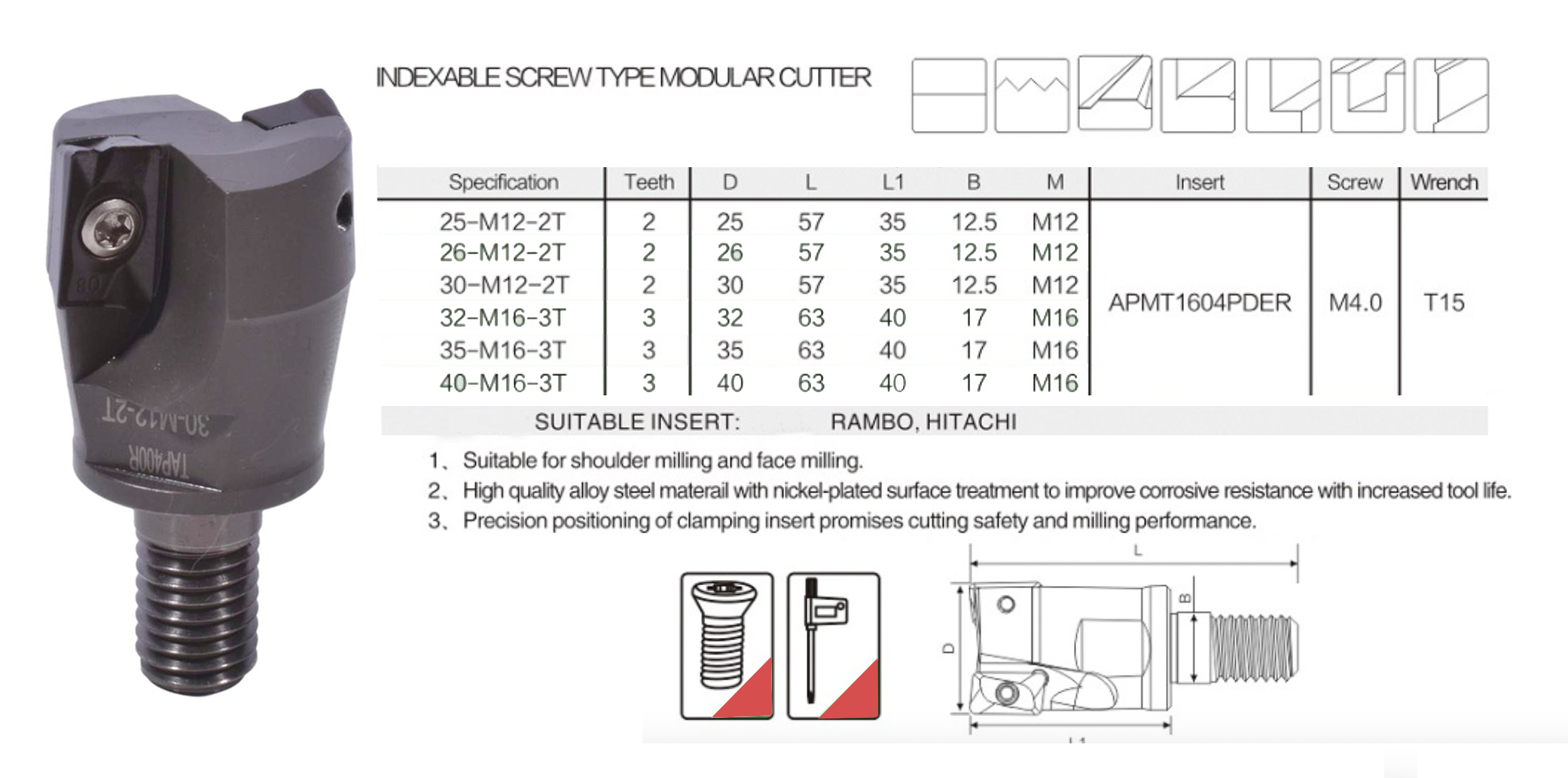

 New 400R M12 MODULAR INSERT CUTTER  30MM +2PC APMT1604 CARBIDE INSERTS

MODEL TAP400R30-M12-2T  RUN OUT (TIR) 0.0002″
HOLDER TYPE FACE MILL CUTTING   DIAMETER 30MM
SHANK TYPE M12  INSERT ACCEPT APMT1604



BT30/BT40/CAT40 arbor available

MODELTHREADDDCLORDER NO
BT30 M6 50LM6121750IGST30001
BT30 M6 100LM61217100IGST30002
BT30 M8 45LM8151745IGST30003
BT30 M8 50LM8151750IGST30004
BT30 M8 100LM81517100IGST30005
BT30 M10 45LM10192145IGST30006
BT30 M10 50LM10192150IGST30007
BT30 M10 100LM101921100IGST30008
BT30 M12 60LM12242560IGST30009
BT30 M12 100LM122426100IGST30010
BT30 M16 45LM16303345IGST30011
BT30 M16 60LM16303360IGST30012
BT30 M16 100LM163033100IGST30013
BT40 M8 70LM8151770IGST30014
BT40 M8 100LM81517100IGST30015
BT40 M8 150LM81522150IGST30016
BT40 M8 200LM81522200IGST30017
BT40 M10 70LM10192070IGST30018
BT40 M10 100LM101925100IGST30019
BT40 M10 150LM101925150IGST30020
BT40 M10 200LM101931200IGST30021
BT40 M12 70LM12242670IGST30022
BT40 M12 100LM122432100IGST30023
BT40 M12 150LM122437150IGST30024
BT40 M12 200LM122458200IGST30025
BT40 M16 70LM16303270IGST30026
BT40 M16 100LM163036100IGST30027
BT40 M16 150LM163041150IGST30028
BT40 M16 200LM163046200IGST30029
CAT40 M8 70LM8151770IGST30030
CAT40 M8 100LM81517100IGST30031
CAT40 M8 150LM81522150IGST30032
CAT40 M8 200LM81522200IGST30033
CAT40 M10 70LM10192070IGST30034
CAT40 M10 100LM101925100IGST30035
CAT40 M10 150LM101925150IGST30036
CAT40 M10 200LM101931200IGST30037
CAT40 M12 70LM12242670IGST30038
CAT40 M12 100LM122432100IGST30039
CAT40 M12 150LM122437150IGST30040
CAT40 M12 200LM122458200IGST30041
CAT40 M16 70LM16303270IGST30042
CAT40 M16 100LM163036100IGST30043
CAT40 M16 150LM163041150IGST30044
CAT40 M16 200LM163046200IGST30045

Carbide shank arbor available

MODELDIAOALMORDER
8M41008100M4IGST1001
10M510010100M5IGST1002
10M515010150M5IGST1003
12M610012100M6IGST1004
12M615012150M6IGST1005
12M620012200M8IGST1006
15M810015100M8IGST1007
15M815015150M8IGST1008
15M820015200M8IGST1009
16M815016150M8IGST1010
16M820016200M8IGST1011
16M825016250M8IGST1012
20M1015020150M10IGST1013
20M1020020200M10IGST1014
20M1025020250M10IGST1015
25M1215025150M12IGST1016
25M1220025200M12IGST1017
25M1225025250M12IGST1018
32M1615032150M16IGST1019
32M1620032200M16IGST1020
32M1625032250M16IGST1021
32M1630032300M16IGST1022
32M1635032350M16IGST1023

 Material Application

a. Quenched and tempered structural steel: The carbon content of this type of steel is generally about 0.25% to 0.55%. For structural parts of a given cross-sectional size, when quenched and tempered along the cross-section during quenching and tempering (quenching and tempering), the mechanics.The performance is good. If the hardening is not penetrated and free ferrite appears in the microstructure, the toughness decreases. For steels with a tendency to temper brittleness, such as manganese steel, chromium steel, nickel-chromium steel, etc., they should be cooled quickly after tempering. The quenching critical diameter of this type of steel increases with the increase in grain size and alloying element content. For example, 40Cr and 35SiMn steel are about 30-40mm, and 40CrNiMo and 30CrNi2MoV steel is about 60-100mm, which is often used in manufacturing Structural parts such as shafts and connecting rods with large loads.cat40 end mill holder

b. Surface hardened structural steel: used to manufacture hard and wear-resistant surface parts and flexible parts, such as gears and shafts. In order to increase the toughness of the core of the part, the carbon content in the steel should be low, generally 0.12 to 0.25%, and there is also an appropriate amount of alloy elements to ensure proper hardenability. Nitrided steel also needs to add alloy elements (such as Al, Cr, Mo, etc.) that are easy to form nitrides. Carburized or carbonitrided steel, after carburizing or carbonitriding at 850~950℃, quenched and used under low-temperature tempering (about 200℃). The nitrided steel is directly treated by nitriding (480~580℃), and it is no longer quenched and tempered.

Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Metric (mm)

Sales Unit

set

Product Category

Shoulder Mill Cutter
