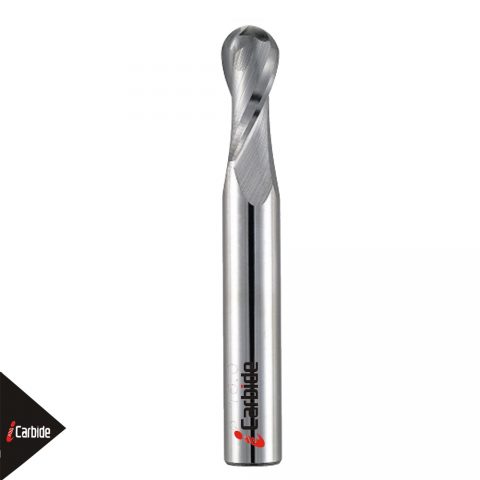

1/4″ 2FLUTE BALL NOSE SOLID CARBIDE END MILL

In Stock

SKU: ICB1001-1

$7.99

1/4″  2 FLUTE BALL NOSE SOLID CARBIDE END MILL

Use: For universal use in different materials (aluminum alloy steel or same class preferred)

Substrate: Submicron carbide grade with excellent T.R.S.

Tool Shank: h5 shank tolerance

Qty
Compare
ORDER NO ICB1011 MATERIAL MIRCO-TUNGSTEN
CUTTING TYPE BALL NOSE STUD CUTTING DIAMETER 1/4
NUMBER OF FLUTE 2 FLUTE LENGTH 1/2
FINISHING COATE NO SHANK DIAMETER 1/4
HELIX ANGLE 30 OVER LENGTH 2-1/2″
SHAPE BALL END SHANK TYPE ROUND
BRAND MADE IN TAIWAN CUTTING TYPE SINGLE END

1/4 ” 2 FLUTE BALL NOSE SOLID CARBIDE END MILL

Features

1/4″ 2FLUTE BALL NOSE SOLID CARBIDE END MILL

Use: For universal use in different materials (aluminum alloy steel or same class preferred)

Substrate: Submicron carbide grade with excellent T.R.S.
Tool Shank: h5 shank tolerance
Safe-Lock shank for pull out protection and productivity improvement

Chip breaker & evacuation geometry:
Unequal cutting edge angle and helix for vibration reduced machining
Neck for higher cutting depth
Power Mill end mills are fine balanced
Highest run-out accuracy (max. 5 µm)
Cutting diameter h9

Quality:
Consistent high and approved quality
100% cutting output inspection

Cutting Condition

DiameterVC(m/min)AP(mm)AE(mm)FEED (mm/min)RPM/MIN
1/81500.150.15200024000
3/162260.170.17250018000
1/43500.20.2280015000
3/84200.250.25300013000
1/24500.30.335008000

                                                                Tungsten Material Application



The commonly used cemented carbide has WC as the main component bai, and is divided into the following categories according to whether du is added to other carbides:
(1) Tungsten cobalt (WC+Co) hard alloy (YG)
It has high toughness of flexural strength and good thermal conductivity, but has a poor heat resistance and wear resistance. It is mainly used for processing cast iron and non-ferrous metals. Fine-grained YG cemented carbide (such as YG3X, YG6X), when the cobalt content is the same, its hardness and wear resistance are higher than YG3 and YG6, and its strength and toughness are slightly worse. It is suitable for processing hard cast iron and austenitic stainless steel. , Heat-resistant alloy, hard bronze, etc.








Related Products

ORDER NOD1(MM)L1(mm)LS(mm)D(mm)L(mm)TOOTH
ICB0011/81/81-1/21/81-3/42
ICB0023/163/81-1/23/161-3/42
ICB0031/43/81-3/41/42-1/22
ICB0043/83/41-3/41/22-1/22
ICB0055/165/161-3/45/162-1/22
ICB0061/23/41-3/41/22-1/22



Cutting Type:





Ionbond provides thin-film coating services and operates, includes PVD, PACVD, CVD, CVA, and CVI technologies,
including a broad range of DLC coatings. Please contact us for further information.
We look forward to serving you.

Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Inch (in)

Sales Unit

single

Product Category

Ball Nose End Mill

Flute Number

2
