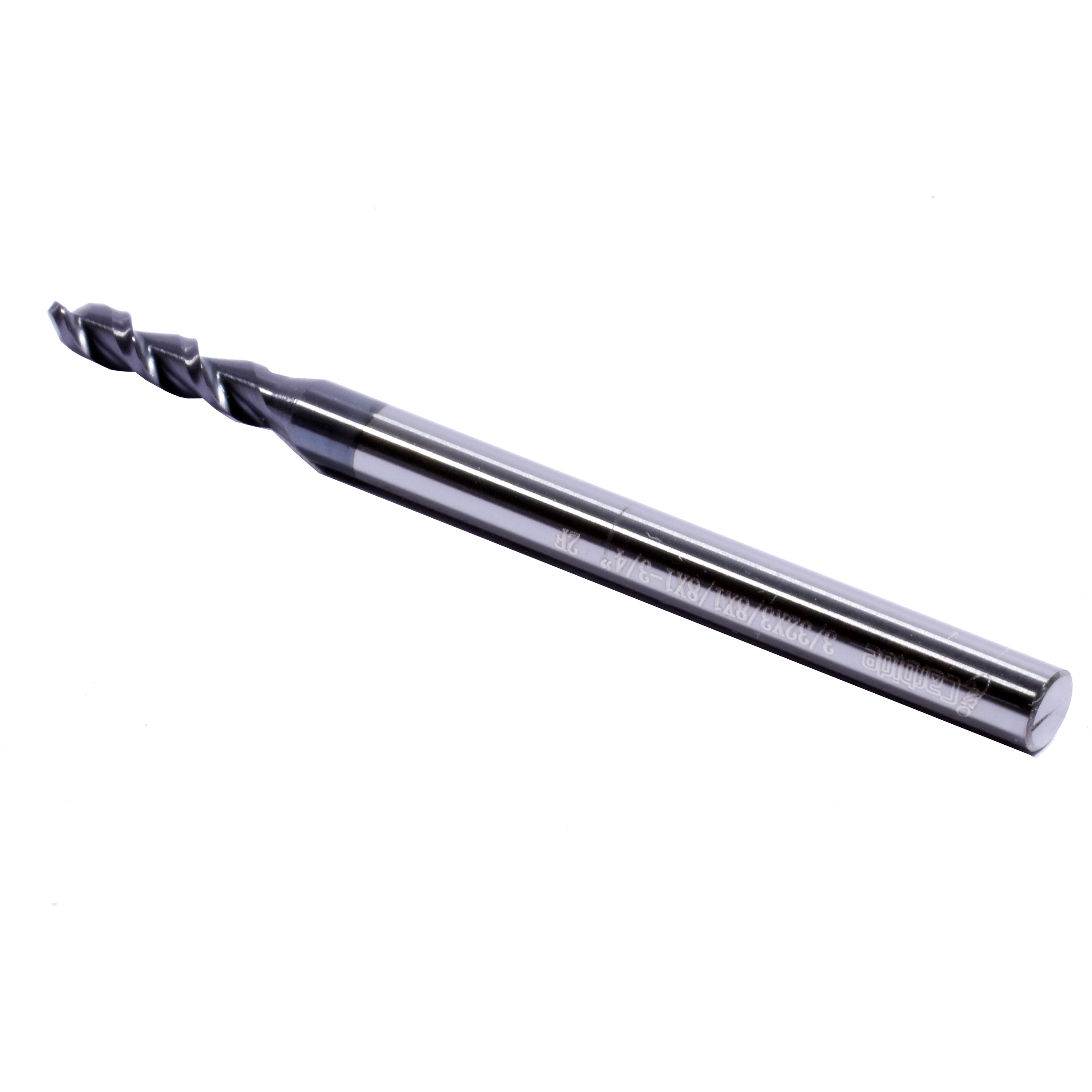

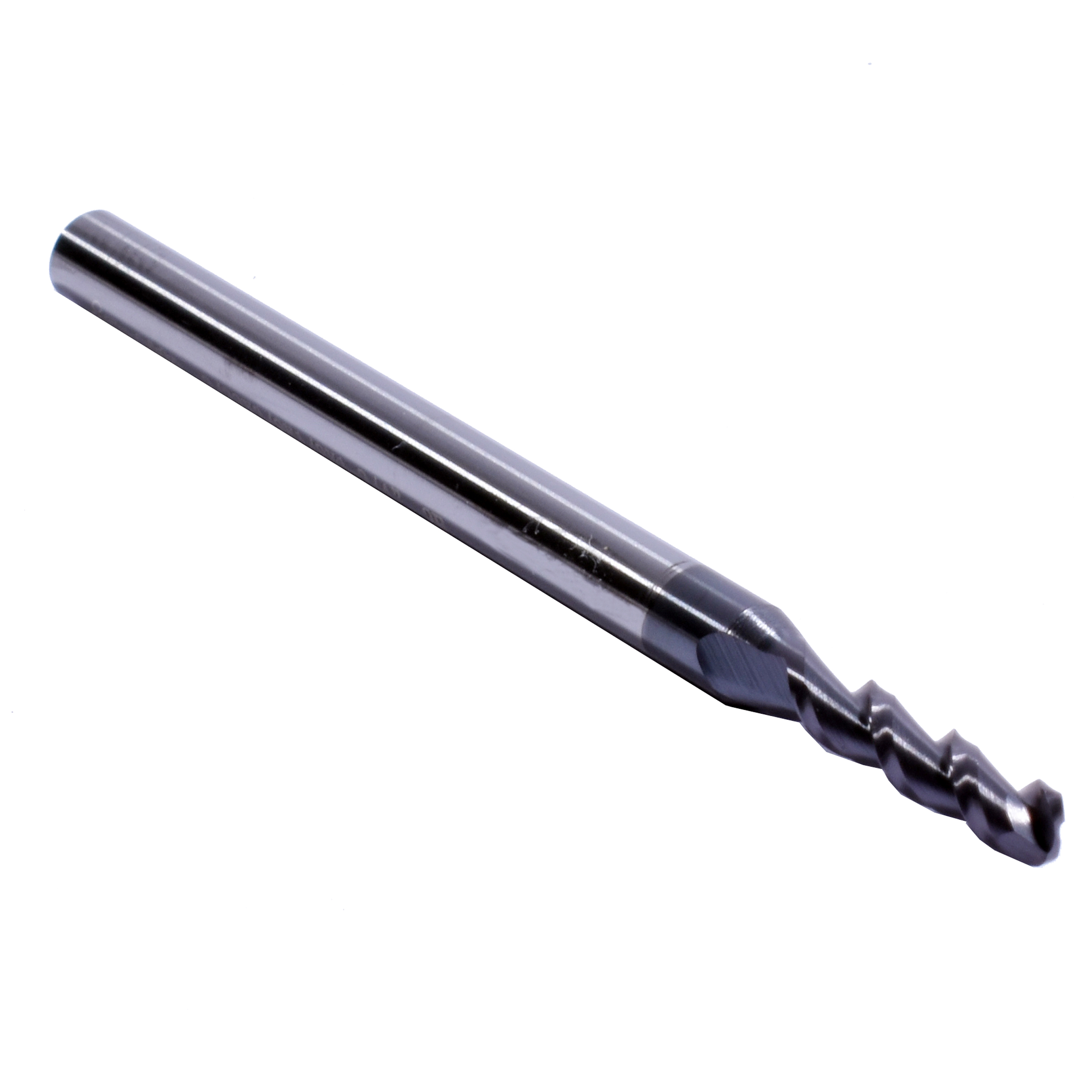

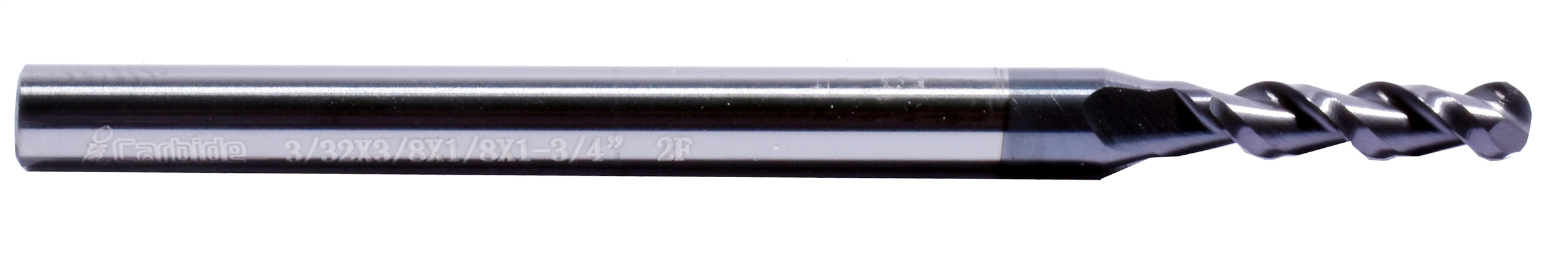

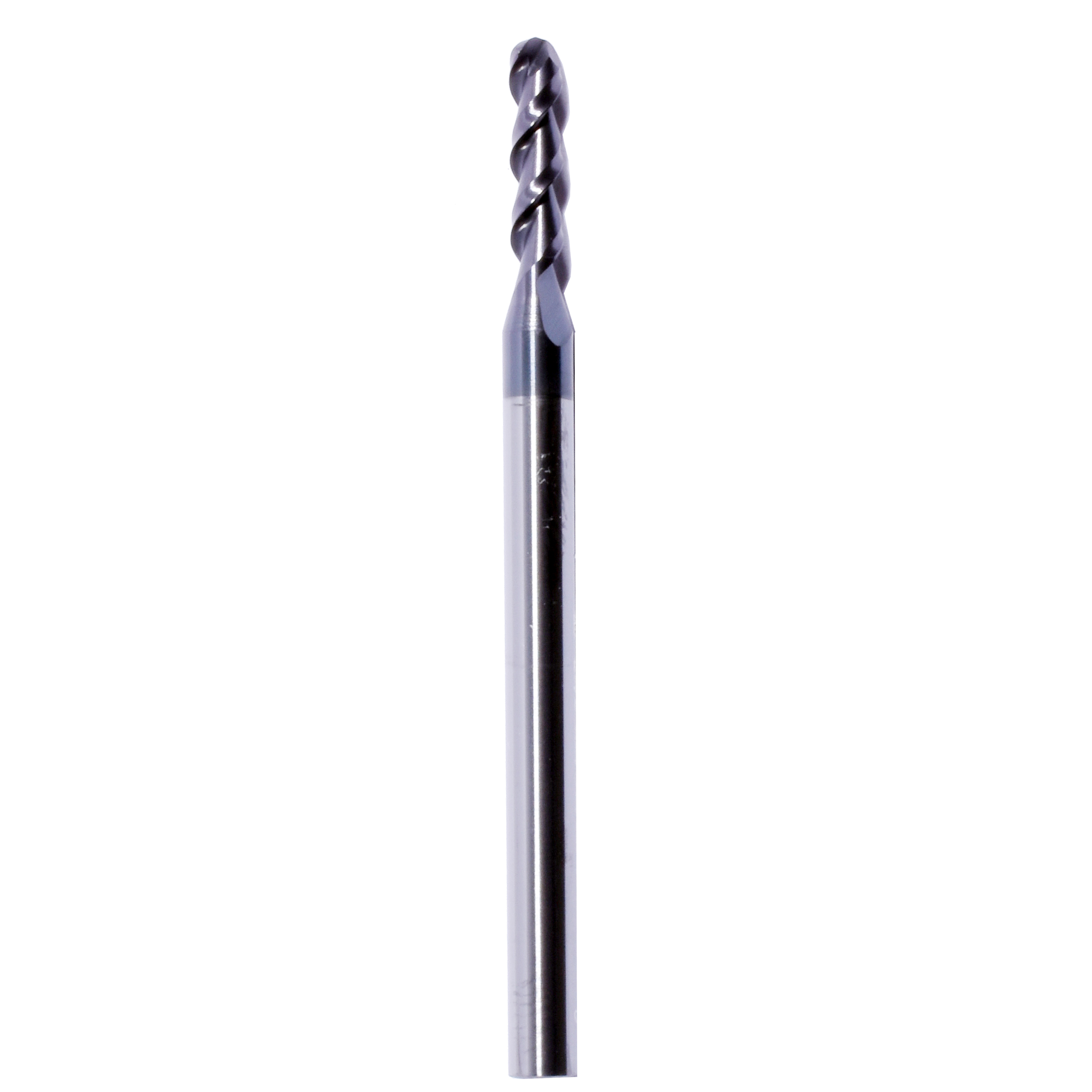

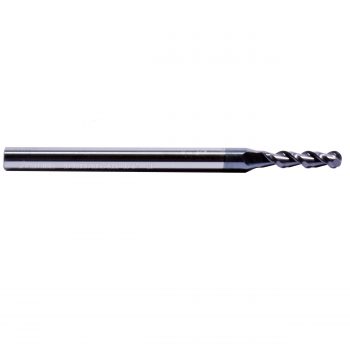

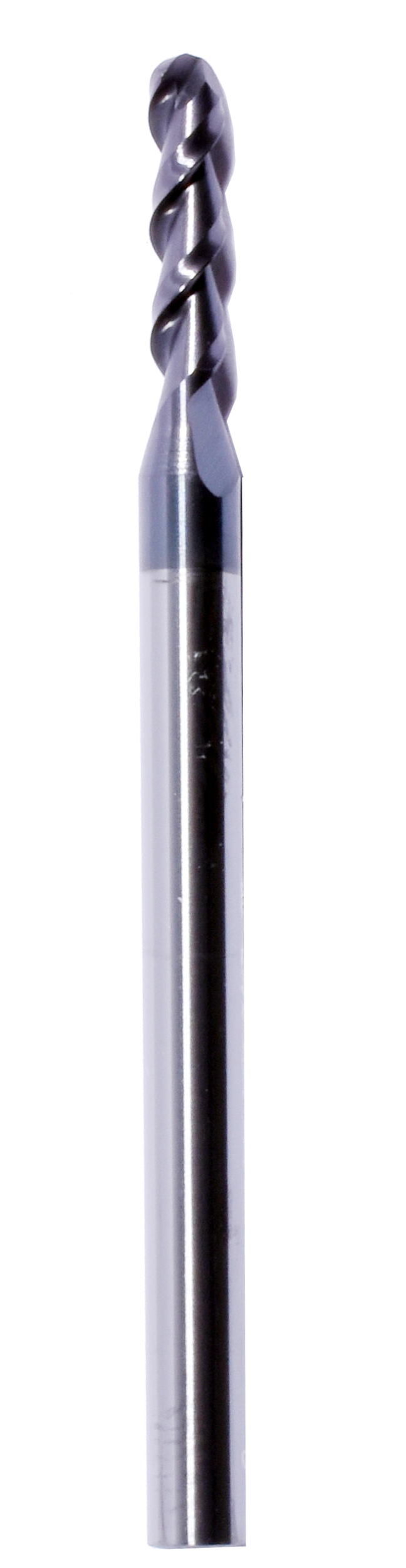

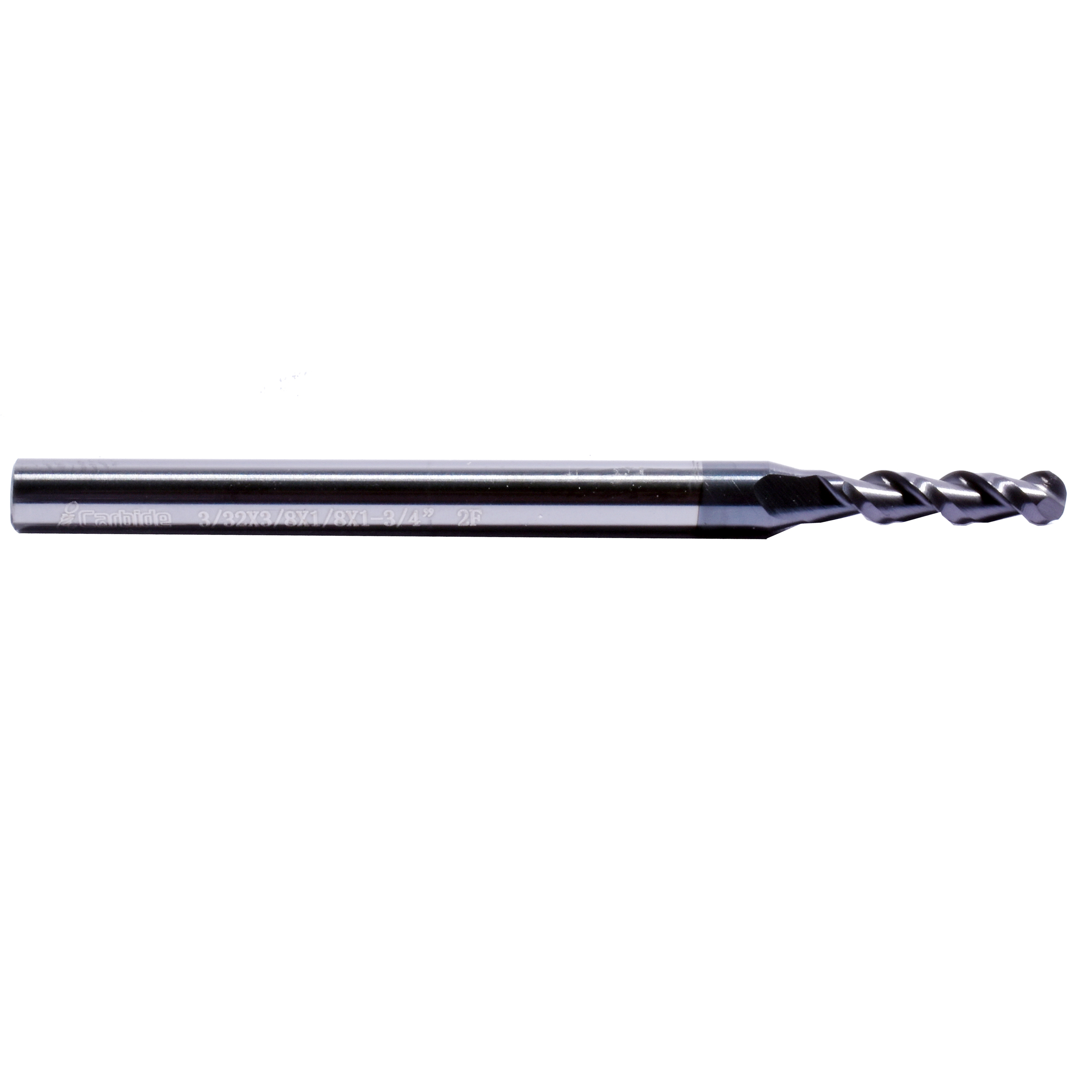

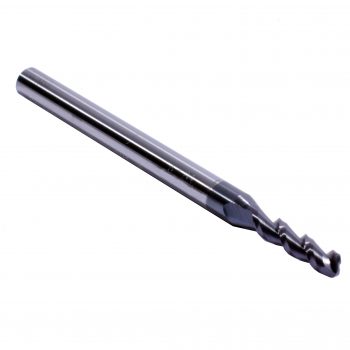

1/16X1-3/4″ 2FLUTE BALL NOSE SOLID CARBIDE END MILL FOR TITANIUM MILL CUTTER

In Stock

SKU: ICB1115-1

$11.99

1/16 x 1-3/4″ 2 FLUTE BALL NOSE  SOLID CARBIDE END MILL FOR TITANIUM

To be used on different materials (titanium Alloy steel, die-casting steel, iron, carbon steel, aluminum steel, brass, Inconel)

Qty
ORDER NO ICB1115 MATERIAL MIRCO-TUNGSTEN
CUTTING TYPE BALL NOSE  END MILL CUTTING DIAMETER 1/16
NUMBER OF FLUTE 4 FLUTE LENGTH 1/2
FINISHING COATE Altin SHANK DIAMETER 1/8
HELIX ANGLE 35 OVER LENGTH 1-3/4
SHAPE FLAT SIDE MILL SHANK TYPE ROUND
BRAND MADE IN TAIWAN CUTTING TYPE SINGLE END

1/16X1-3/4″ 2FLUTE BALL NOSE SOLID CARBIDE END MILL FOR TITANIUM

 Best For TITANIUM
And  to be used on different materials ( Alloy steel, die-casting steel, iron, carbon steel, aluminum steel, brass, Inconel, Bright steel, tool steel.)

The sharpness of the knife can be maintained after coating

High toughness and high rigidity

Self-lubricating function: a low affinity for cold welding, cutting edge

The surface is extremely smooth, and the chip flutes can be removed without chips during milling and drilling

Excellent smoothness on the guide vane and excellent alignment of the machined holes

Very suitable for processing aluminum, copper, titanium alloys and ALSi alloys with a silicon content of less than 10% (for products with higher silicon content, we recommend using diamond coating)



Cutting Condition

DiameterVC(m/min)AP(mm)AE(mm)FEED (mm/min)RPM/MIN
1/81500.150.15200024000
3/162260.170.17250018000
1/43500.20.2280015000
3/84200.250.25300013000
1/24500.30.335008000

Tungsten Material Tungsten  (WC+Co) hard alloy (YG)


It has high toughness of flexural strength and good thermal conductivity, but has a poor heat resistance and wear resistance. It is mainly used for processing cast iron and non-ferrous metals. Fine-grained YG cemented carbide  (such as YG3X, YG6X), when the cobalt content is the same, its hardness and wear resistance are higher than  YG3 and YG6, and its strength and toughness are slightly worse. It is suitable for processing hard cast iron and austenitic stainless steel. , Heat-resistant alloy, hard bronze, etc.

Related Products

[table “24” not found /]

Ionbond provides thin-film coating services and operates, includes PVD, PACVD, CVD, CVA, and CVI technologies,
including a broad range of DLC coatings. Please contact us for further information.
We look forward to serving you.





Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
