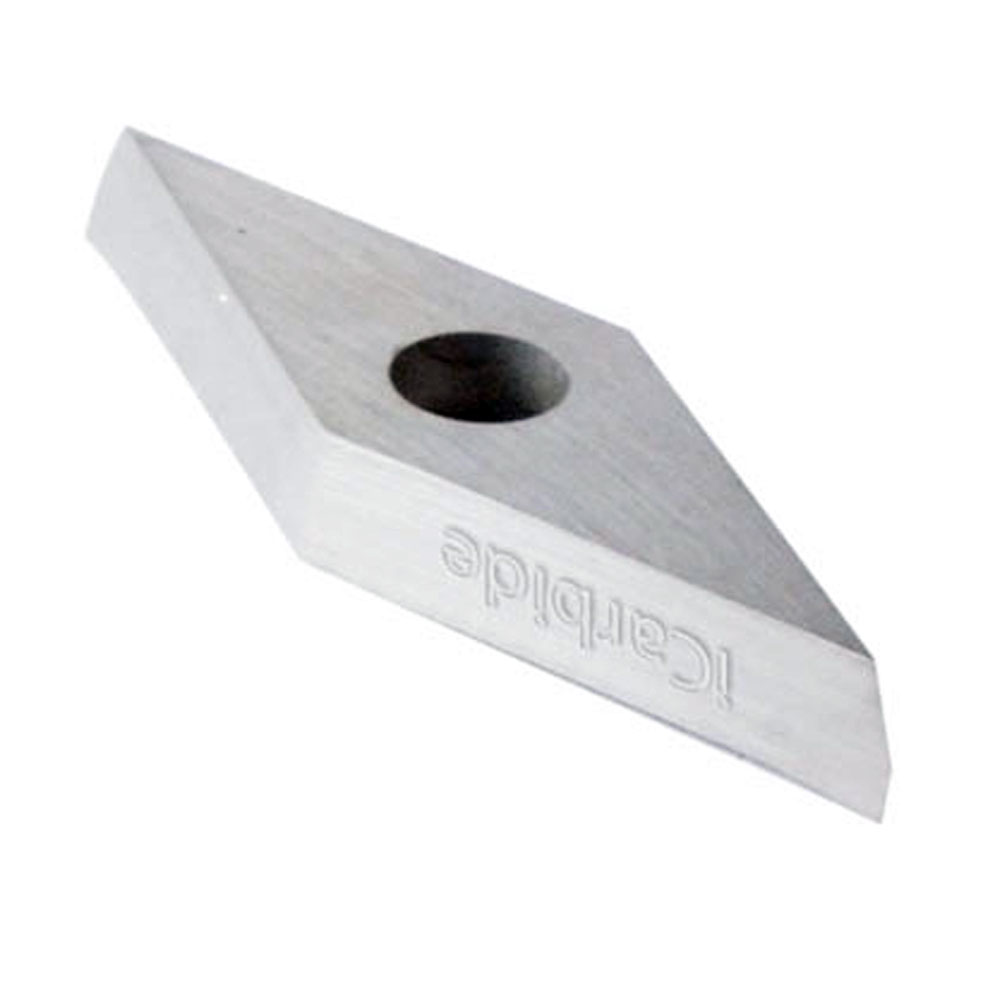

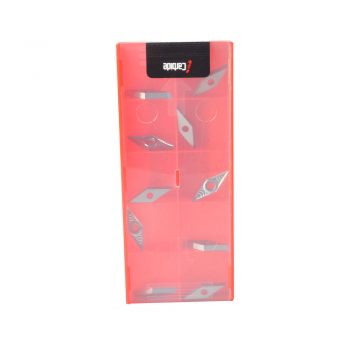

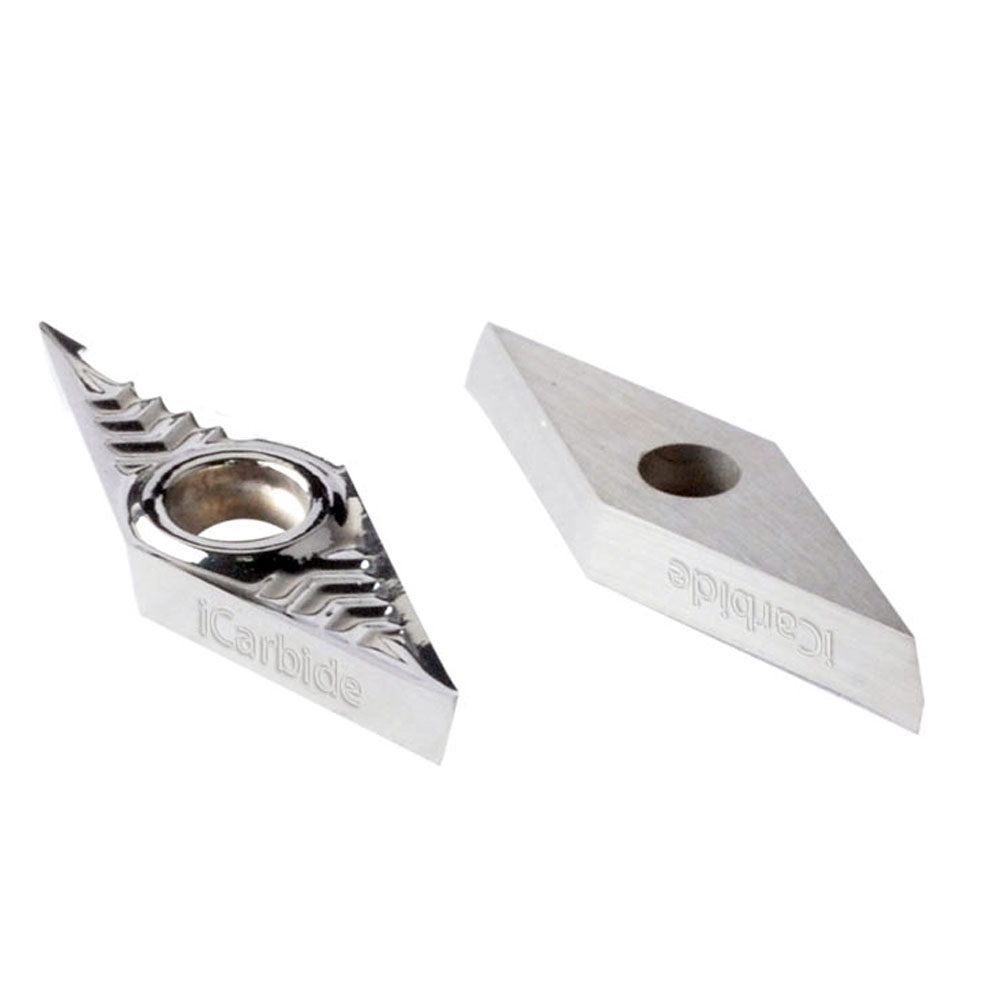

VCGT130302 IG101 CARBIDE INSERT TURNING INSERTS PACK OF 10

In Stock

SKU: ICM1303PM

$49.99

VCGT130302 IG101 CARBIDE INSERT TURNING INSERTS FOR ALUMINUM

Qty
Compare
ORDER NO ICM1303PM MATERIAL carbide
CUTTING TYPE TURNING INSERT INSERT SIZE VCGT130302
INSERT TYPE VCGT  DIAMETER 13
FINISHING COATE UNCOATED THICKNESS 1/8″
ISO STANDARD NO VCGT130302 THRU HOLE 3.4
ANSI NO VCGT130302 CORNER RADIUS 35°
CHIP BREAKER PM INSERT RADIUS 0.012″
BRAND iCarbide USA PACK 10PCS

VCGT110302 VCGT220.5 IG101 CARBIDE INSERT TURNING INSERTS



The end face and outer circle of the face milling cutter perpendicular to the tool holder have cutting edges, which are mainly used for plane milling. The outer cutting edge is the main cutting edge, and the cutting edge on the end face plays the same role as the scraper. Compared with sleeve end mills, face milling cutters have a shorter edge.

High-speed steel face milling cutters are generally used to machine flat surfaces of medium width. The standard milling cutter diameter ranges from 2″ to 10″. The cutting efficiency and machining quality of cemented carbide face milling cutters are higher than that of high-speed steel milling cutters. Therefore, cemented carbide face milling cutters are widely used to process planes.

carbide insert MILL INSERTS CARBIDE BITS

Cutting Grade and Condition

KMPSN
Cast IronStainless steelcarbon steelHeat-resistance alloyNonferrous steel
Workpiece materialCarbide Insert GradeV(SFPM)fn(mm/rev)
low carbon steel
soft steel
IG701
IG601
900(700-1200) 0.006(0.004-0.008)
stainless steelIG701700(600-1000) 0.006(0.004-0.008)
Tool steel IG701
IG201
700(600-1000) 0.006(0.004-0.008)
Cast ironIG701
IG601
IG201
700(400-1000) 0.006(0.004-0.008)
inconel steel IG701800(600-1000) 0.006(0.004-0.008)
ALumimum ,brass ,plastic, solf steelIG101900(80--1300) 0.008(0.004-0.008)

Tungsten Material Tungsten  (WC+Co) hard alloy (YG)


It has high toughness of flexural strength and good thermal conductivity, but has a poor heat resistance and wear resistance. It is mainly used for processing cast iron and non-ferrous metals. Fine-grained YG cemented carbide  (such as YG3X, YG6X), when the cobalt content is the same, its hardness and wear resistance are higher than  YG3 and YG6, and its strength and toughness are slightly worse. It is suitable for processing hard cast iron and austenitic stainless steel. , Heat-resistant alloy, hard bronze, etc.











Ionbond provides thin-film coating services and operates, includes PVD, PACVD, CVD, CVA, and CVI technologies,
including a broad range of DLC coatings. Please contact us for further information.

We look forward to serving you

carbide inserts carbide bit,vbmt insert,tcmt insert,dcmt insert
mill inserts,sandvik inserts,carbide insert chart,
apmt1604 /wnmg/tnmg insert,ccmt insert,ccmt060204,
carbide insert cnmg insertkennametal inserts,dcmt070204

Weight 0.2 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Inch (in)

Sales Unit

set

Product Category

Turning Insert

Insert Type

Diamond Turning Insert
