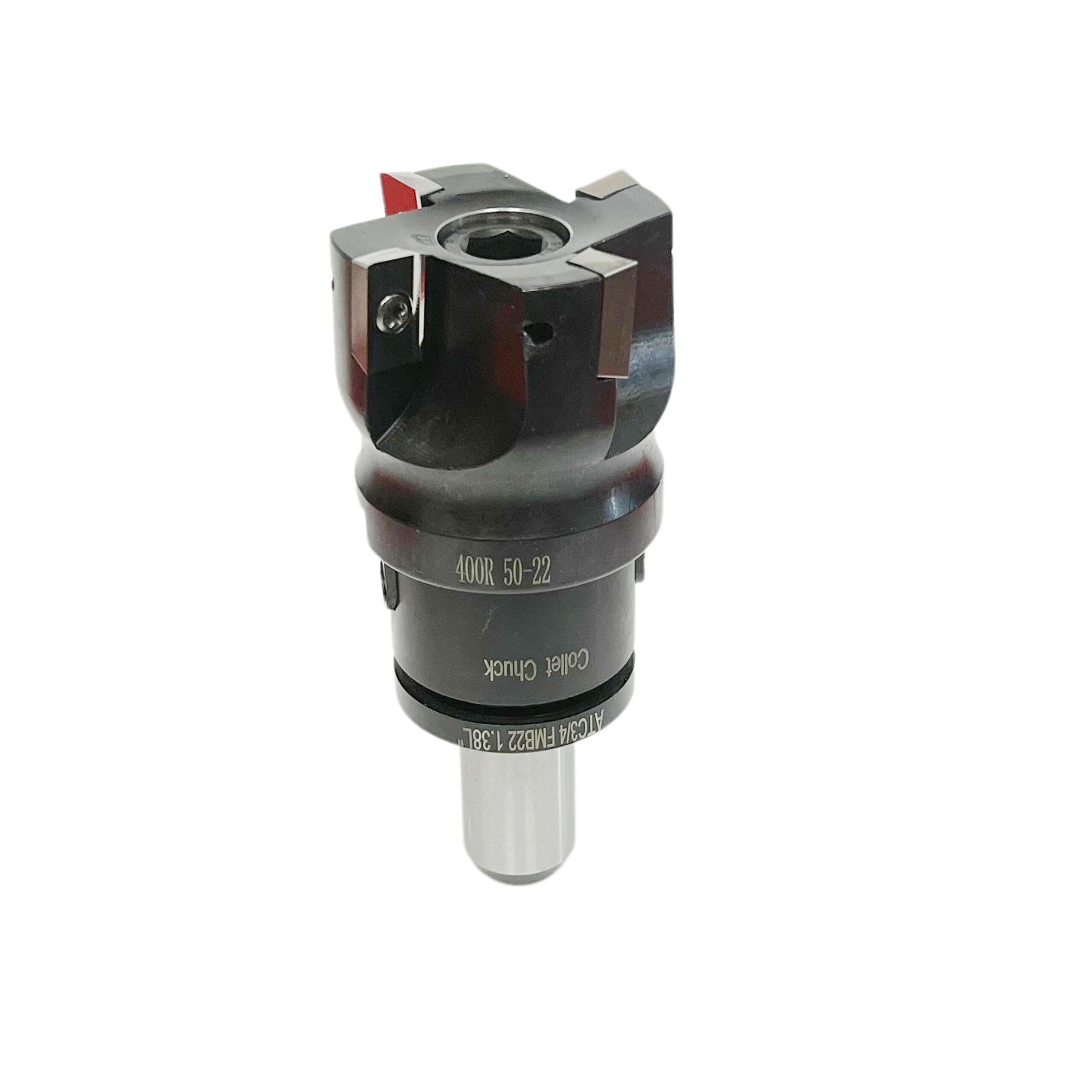

TTS 3/4 2-INCH FACE MILL CUTTER AND 4PCS APKT1604 CARBIDE INSERTS
MODEL | 2INCH FACE MILL | RUN OUT (TIR) | 0.002″ | FLANGE DIAMETER | 1.20″ |
HOLDER TYPE | FACE MILL CUTTER | CUTTING DIA | 2″ | CARBIDE INSERT | APKT1604 |
SHANK TYPE | STRAIGHT TOOL HOLDER | DRAWBAR THREAD | NO | THREAD | M4 |
BALANCE | MAX 10,000RPM | SHANK DIAMETER | 3/4 | COLOR | oxide black |
OVERALL LENGTH | 2.88″ | SHANK LENGTH | 1.38″ | ATC GROOVE | YES |
The flange is 1.5″ with a Groove for TTS Tormach machine
Made from alloy steel and hardness is HRC55
Keys and 4pcs carbide insert included
