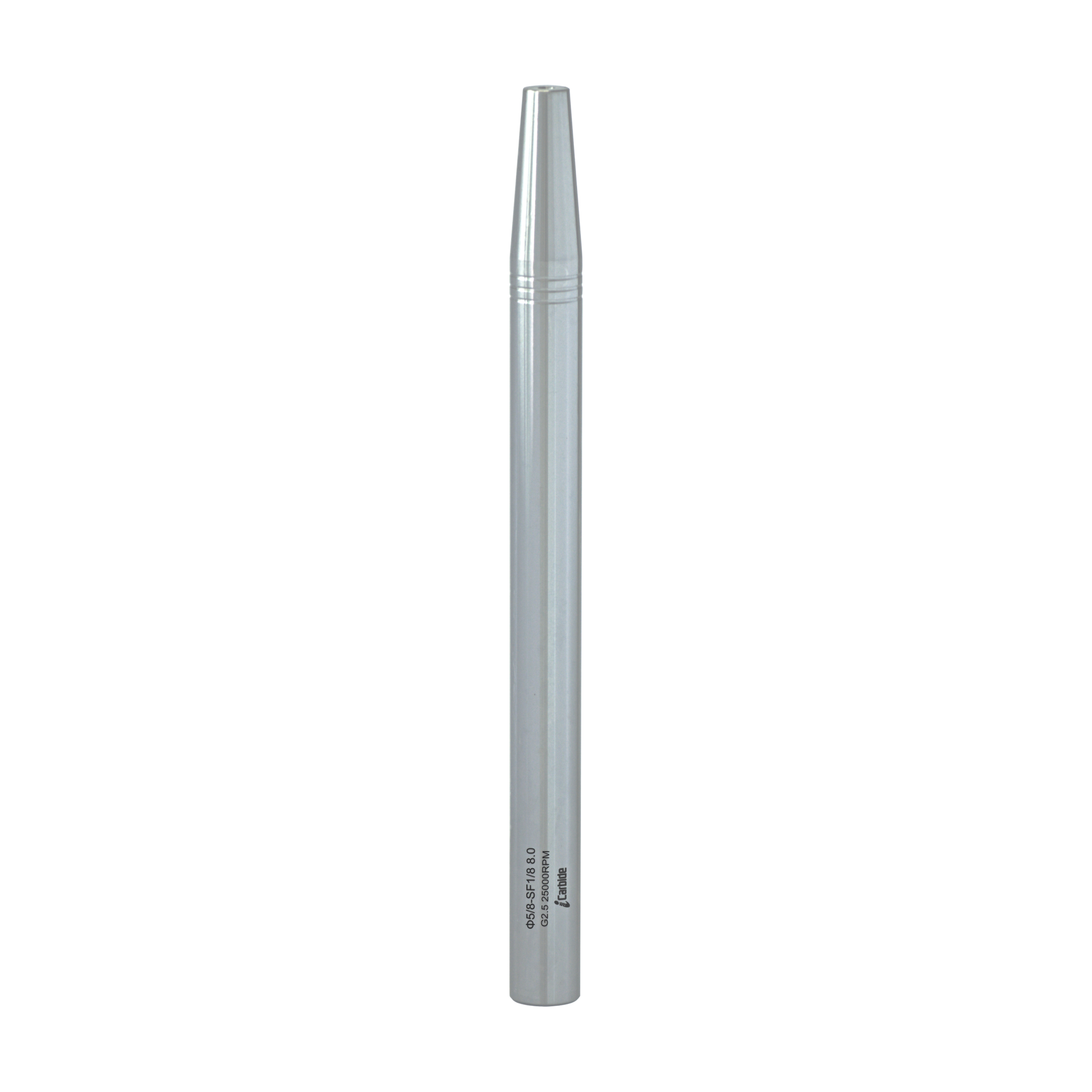

1/8″X8.0″ SHRINK FIT EXTENTIONS TOOL HOLDER
| MODEL | 1/8″X8.0″ EXTENTIONS | RUN OUT (TIR) | 0.0001″ | SHANK DIAMETER D | 5/8″ |
| HOLDER TYPE | SHRINK FIT | BORE DIAMETER | 1/8″ | BORE DEPTH | 0.5″ |
| SHANK TYPE | STRAIGHT SHANK | DRAWBAR THREAD | NO | NOSE DIAMETER d | 0.60″ |
| BALANCE | Yes G2.5 25000rpm | OVERALL LENGTH | 8″ | COOLANT | NO |
