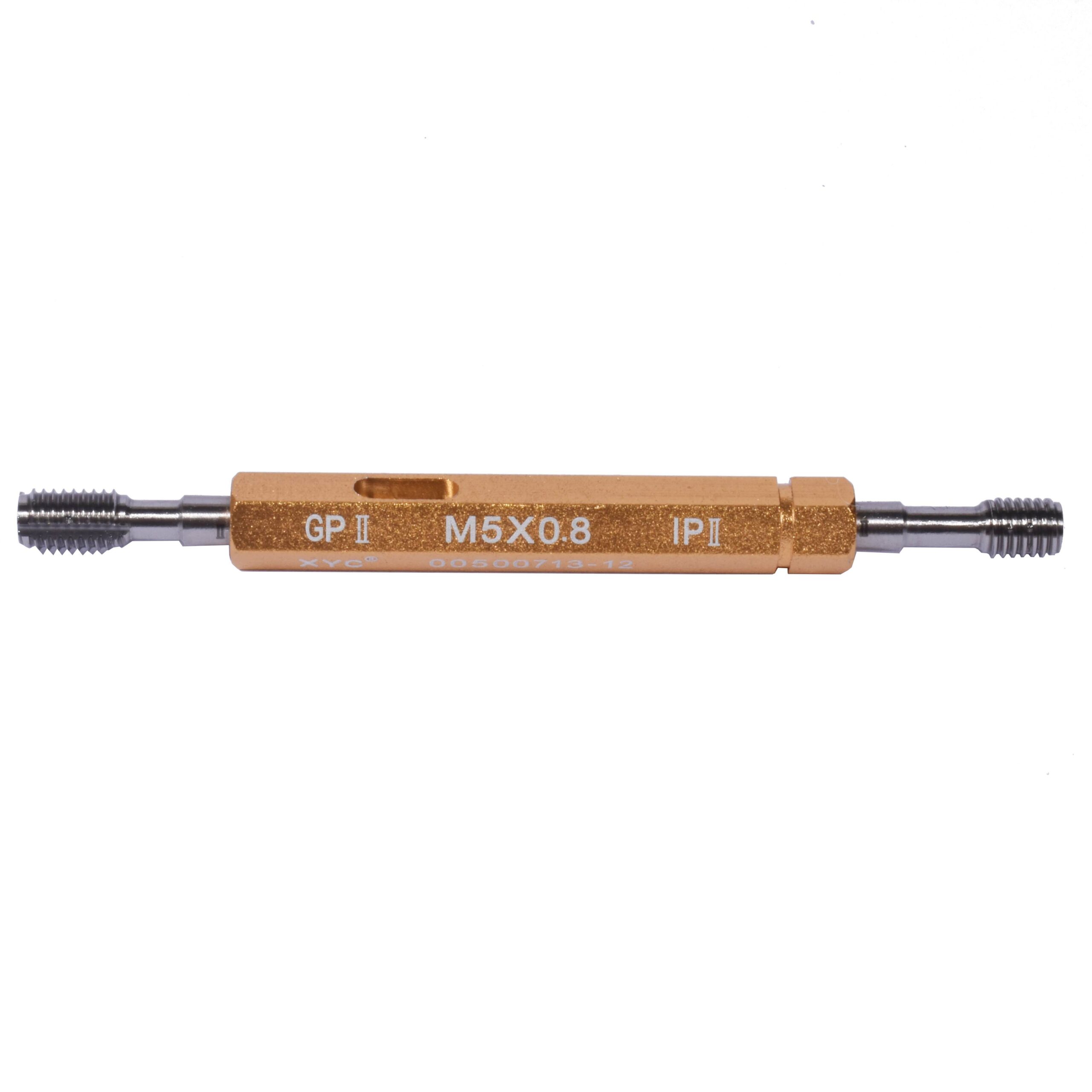

M5 X0.8 THREAD PLUG GAGE TOOL GO AND NOGO CLASS 6H

In Stock

SKU: ICTA508

$19.99

M5X 0.8 THREAD PLUG GAGE TOOL GO AND NOGO CLASS 2B

Qty
Compare

M5 X 0.8 THREAD PLUG GAGE TOOL GO AND NOGO CLASS 2B

MODEL M5X0.8  Pitch 0.8
CLASS GRADE 6H   OAL 70MM
THREAD GRINDING INSPECT YES



METRICINCH
Thread Gauge SizeGradeOrder NoThread Gauge SizeGradeOrder No
M1 * 0.255HICTA10014-40UNC2BICTA1029
M1.2 * 0.255HICTA10025-40UNC2BICTA1030
M1.4 * 0.36HICTA10036-32UNC2BICTA1031
M1.6 * 0.356HICTA10048-32UNC2BICTA1032
M1.7 * 0.356HICTA100510-24UNC2BICTA1033
M1.8 * 0.356HICTA100612-28UNC2BICTA1034
M2 * 0.46HICTA10071/4-20UNC2BICTA1035
M2.5 * 0.46HICTA10081/4-28UNF2BICTA1036
M2.6 * 0.456HICTA10095/16-18UNC2BICTA1037
M3 * 0.66HICTA10105/6-24UNF2BICTA1038
M3.5 * 0.66HICTA10113/8-16UNC2BICTA1039
M4 * 0.76HICTA10123/8-24 UNF2BICTA1040
M5 * 0.86HICTA10137/16-14UNC2BICTA1041
M6 * 16HICTA10147/16-20UNF2BICTA1042
M7*16HICTA10151/2-13UNC2BICTA1043
M8*1.256HICTA10161/2-20UNF2BICTA1044
M8*16HICTA10179/16-12UNC2BICTA1045
M10*1.56HICTA10185/8-11UNF2BICTA1046
M10*1.256HICTA10195/8-24UNEF2BICTA1047
M10*16HICTA1020W1/8-402BICTA1048
M12*1.756HICTA1021W5/32-322BICTA1049
M12*1.56HICTA1022W3/16-242BICTA1050
M12*1.256HICTA1023W1/4-202BICTA1051
M12*16HICTA1024W5/16-182BICTA1052
M14*1.56HICTA1025W3/8-162BICTA1053
M14*26HICTA1026W1/2-122BICTA1054
M16*26HICTA1027W5/8-112BICTA1055
M14*1.56HICTA1028



 Material Application

a. Quenched and tempered structural steel: The carbon content of this type of steel is generally about 0.25% to 0.55%. For structural parts of a given cross-sectional size, when quenched and tempered along the cross-section during quenching and tempering (quenching and tempering), the mechanics.The performance is good. If the hardening is not penetrated and free ferrite appears in the microstructure, the toughness decreases. For steels with a tendency to temper brittleness, such as manganese steel, chromium steel, nickel-chromium steel, etc., they should be cooled quickly after tempering. The quenching critical diameter of this type of steel increases with the increase in grain size and alloying element content. For example, 40Cr and 35SiMn steel are about 30-40mm, and 40CrNiMo and 30CrNi2MoV steel is about 60-100mm, which is often used in manufacturing Structural parts such as shafts and connecting rods with large loads.cat40 end mill holder

b. Surface hardened structural steel: used to manufacture hard and wear-resistant surface parts and flexible parts, such as gears and shafts. In order to increase the toughness of the core of the part, the carbon content in the steel should be low, generally 0.12 to 0.25%, and there is also an appropriate amount of alloy elements to ensure proper hardenability. Nitrided steel also needs to add alloy elements (such as Al, Cr, Mo, etc.) that are easy to form nitrides. Carburized or carbonitrided steel, after carburizing or carbonitriding at 850~950℃, quenched and used under low-temperature tempering (about 200℃). The nitrided steel is directly treated by nitriding (480~580℃), and it is no longer quenched and tempered.

Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
