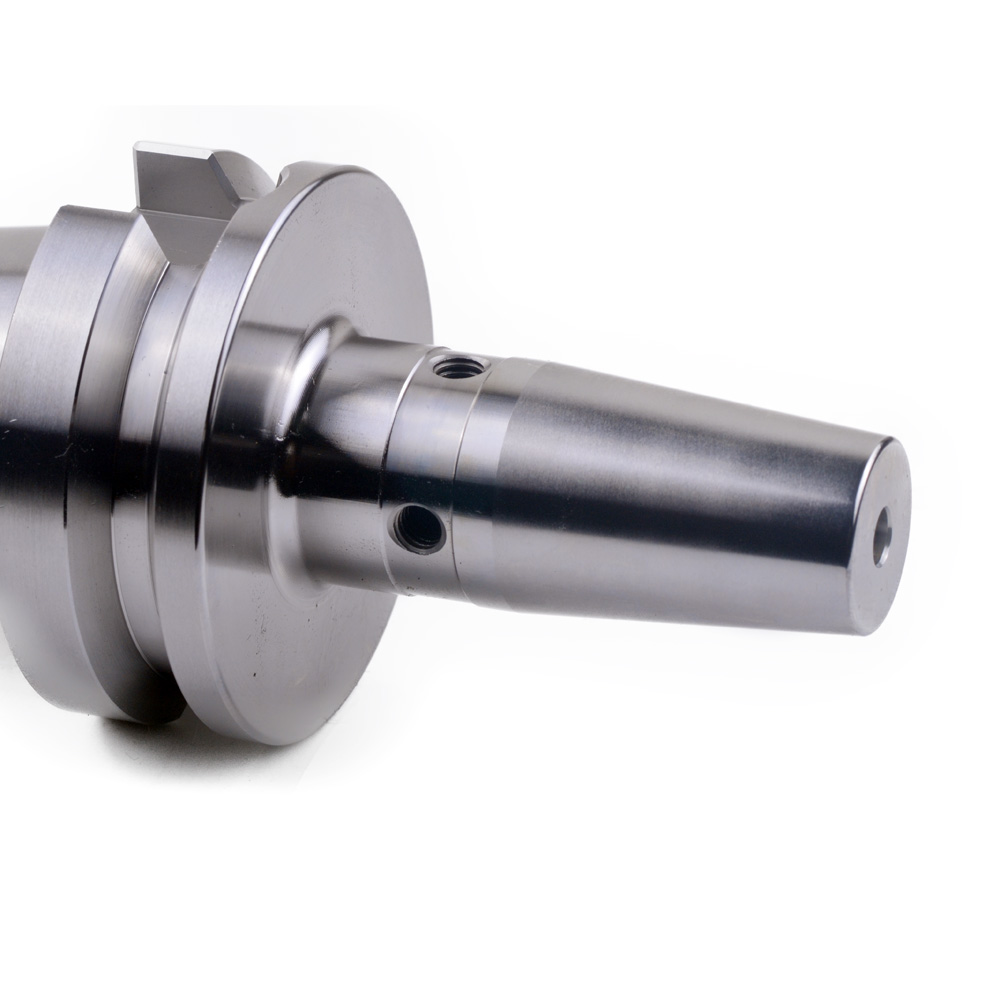

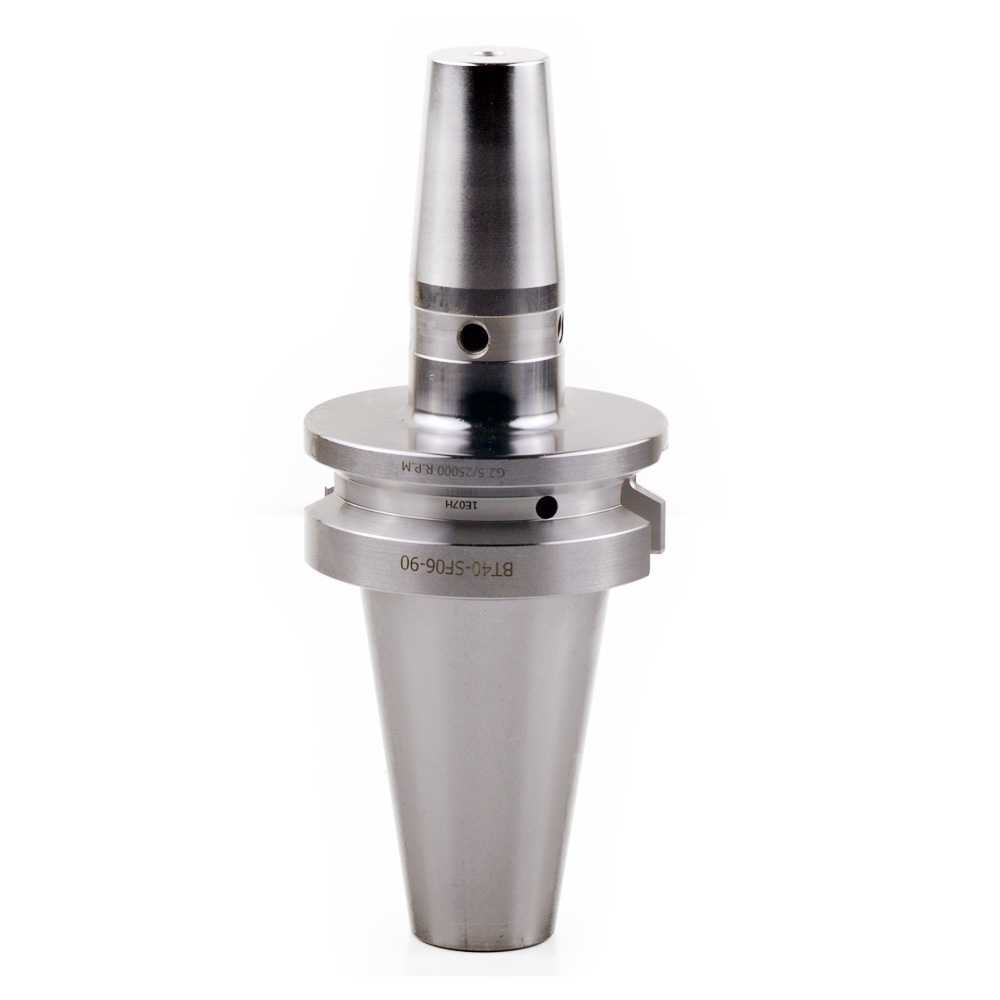

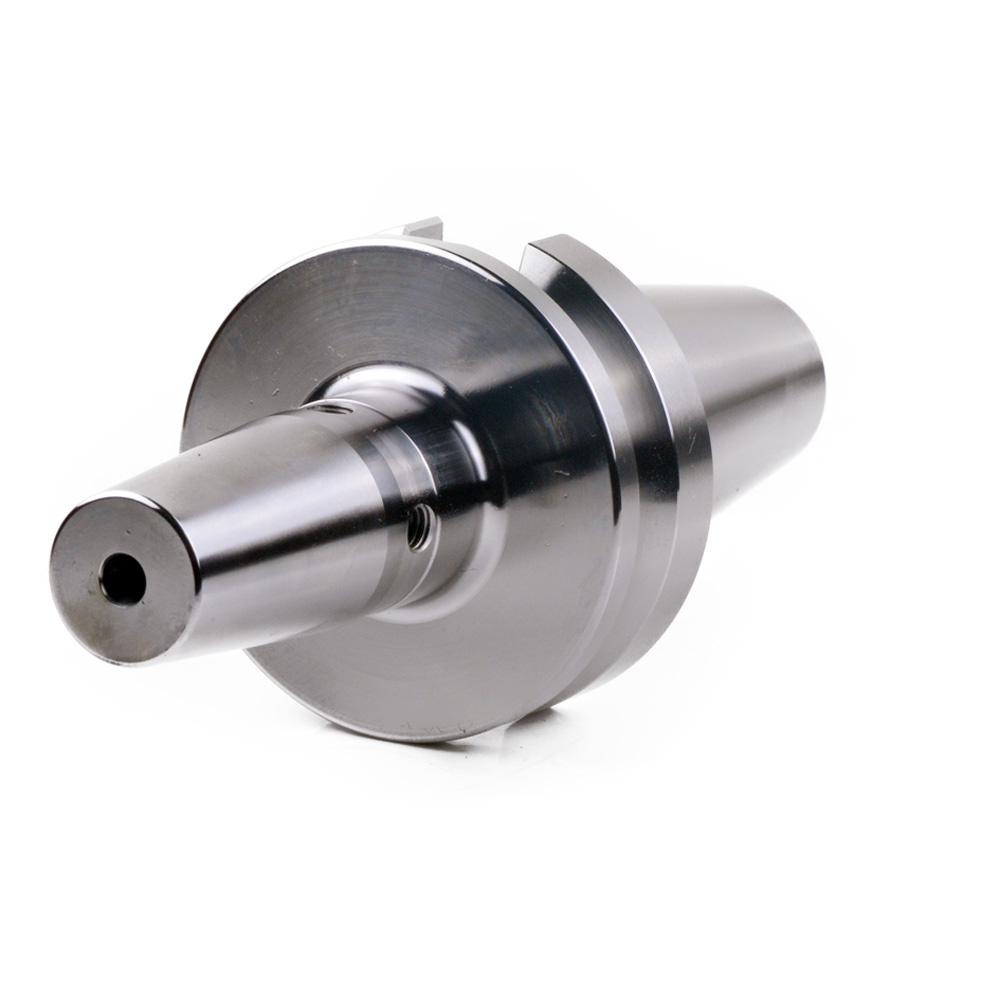

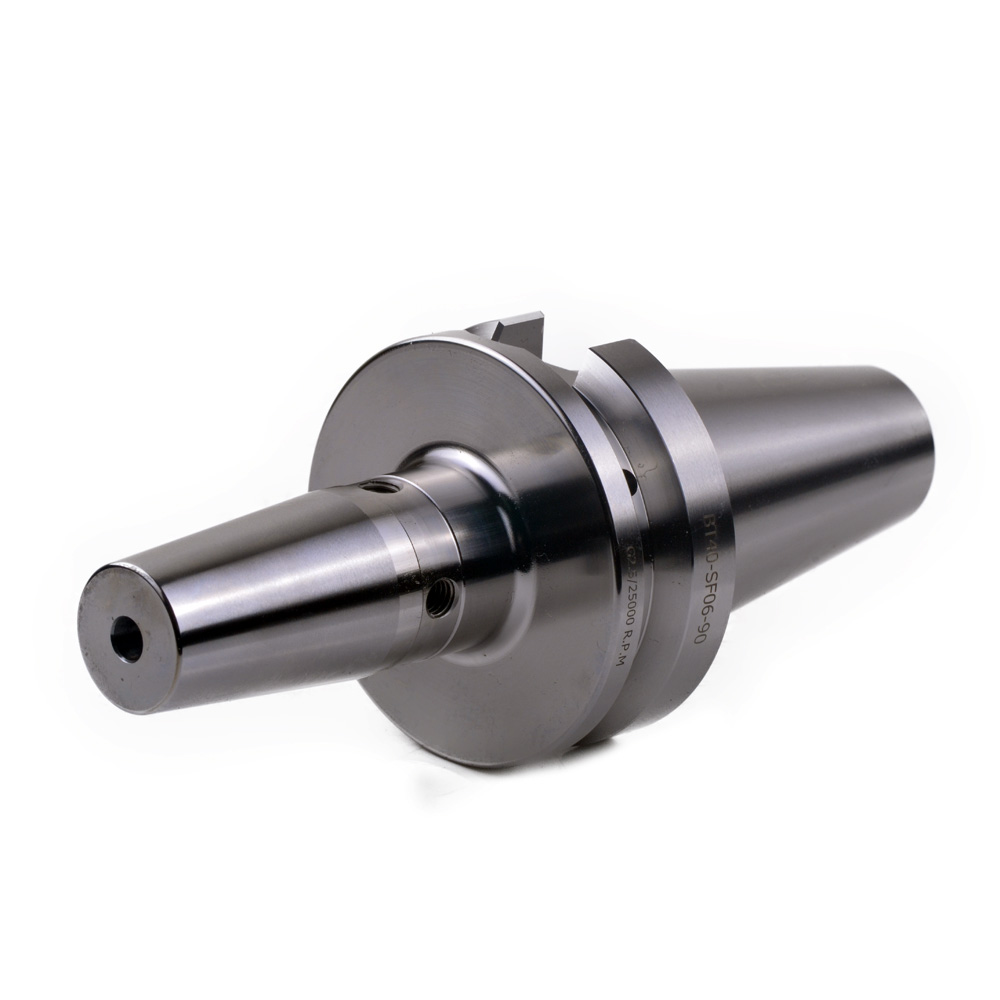

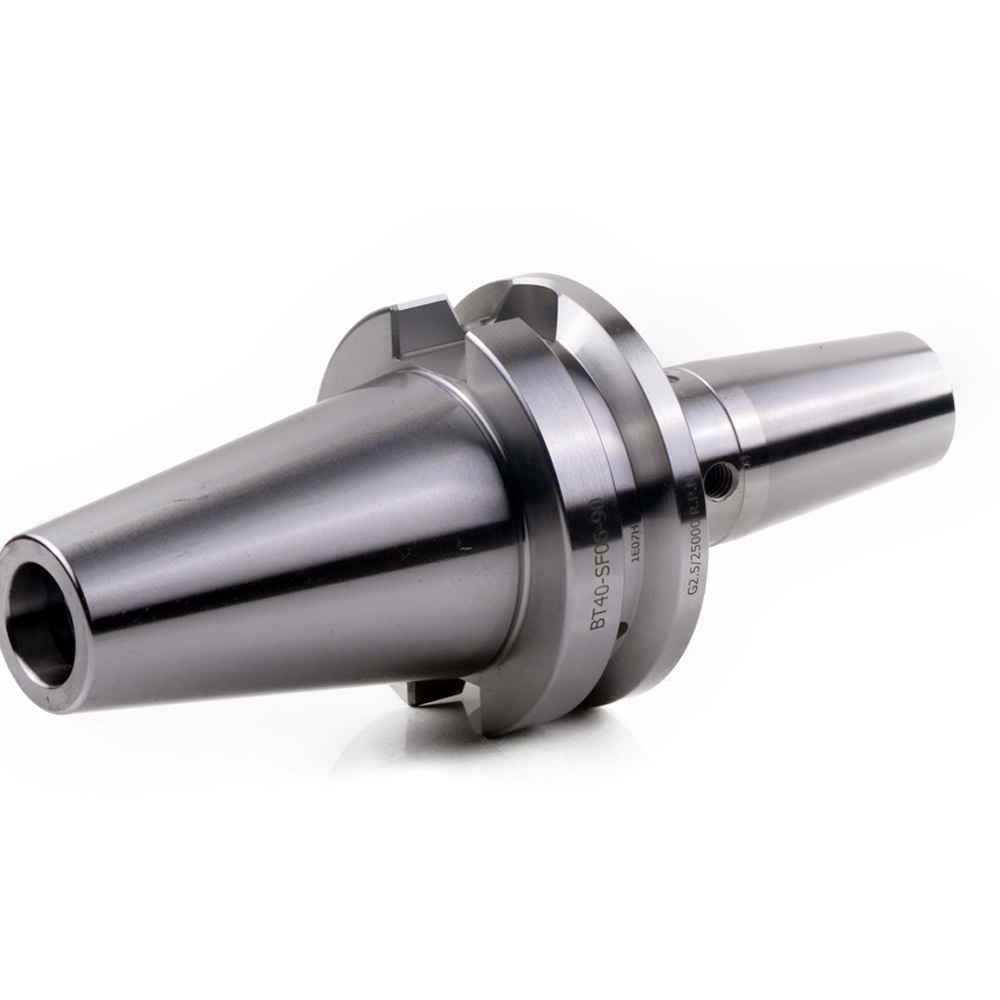

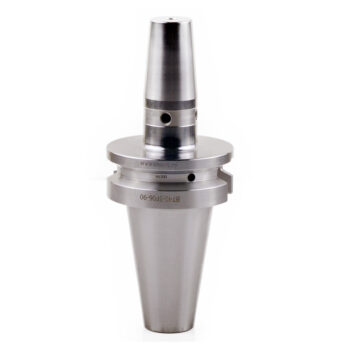

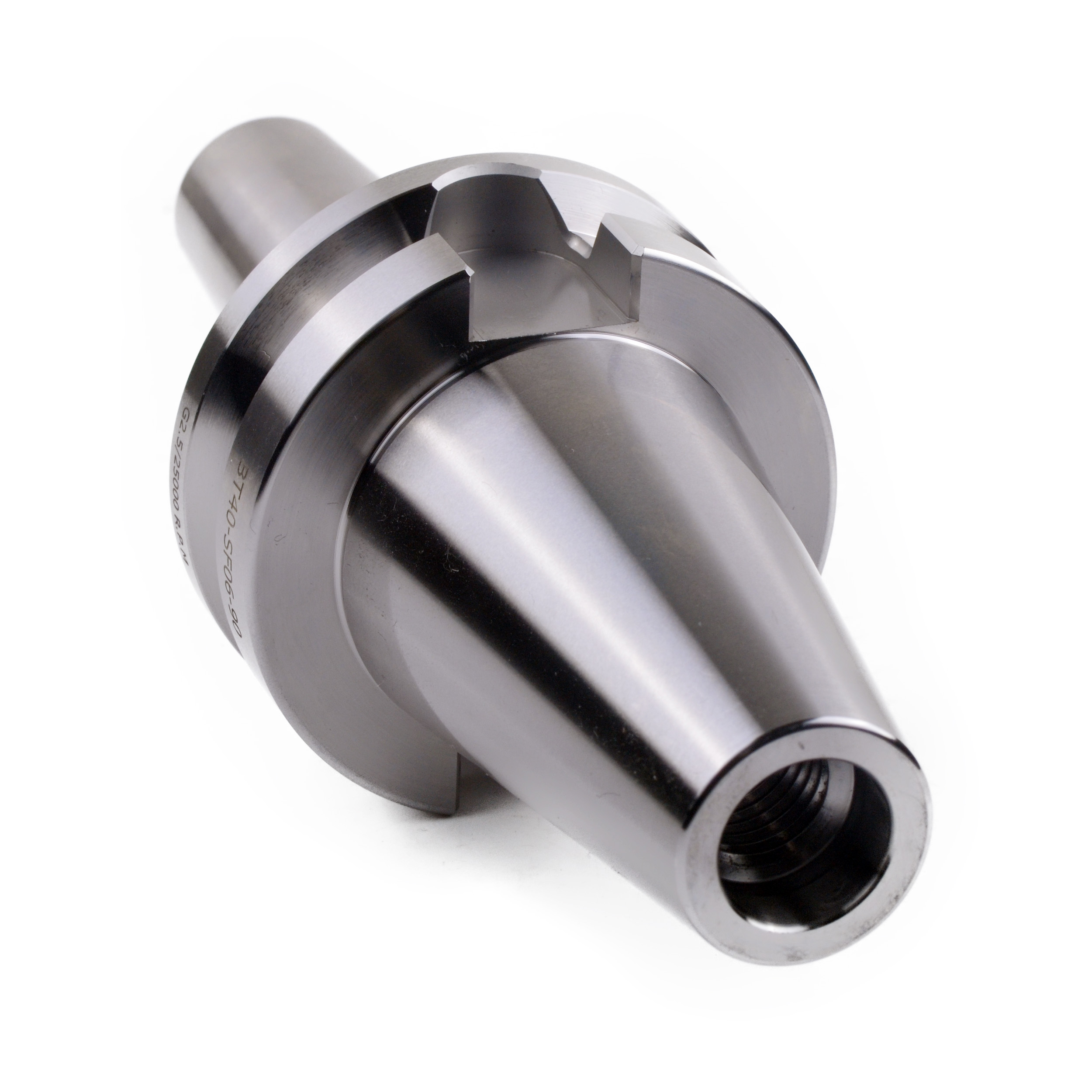

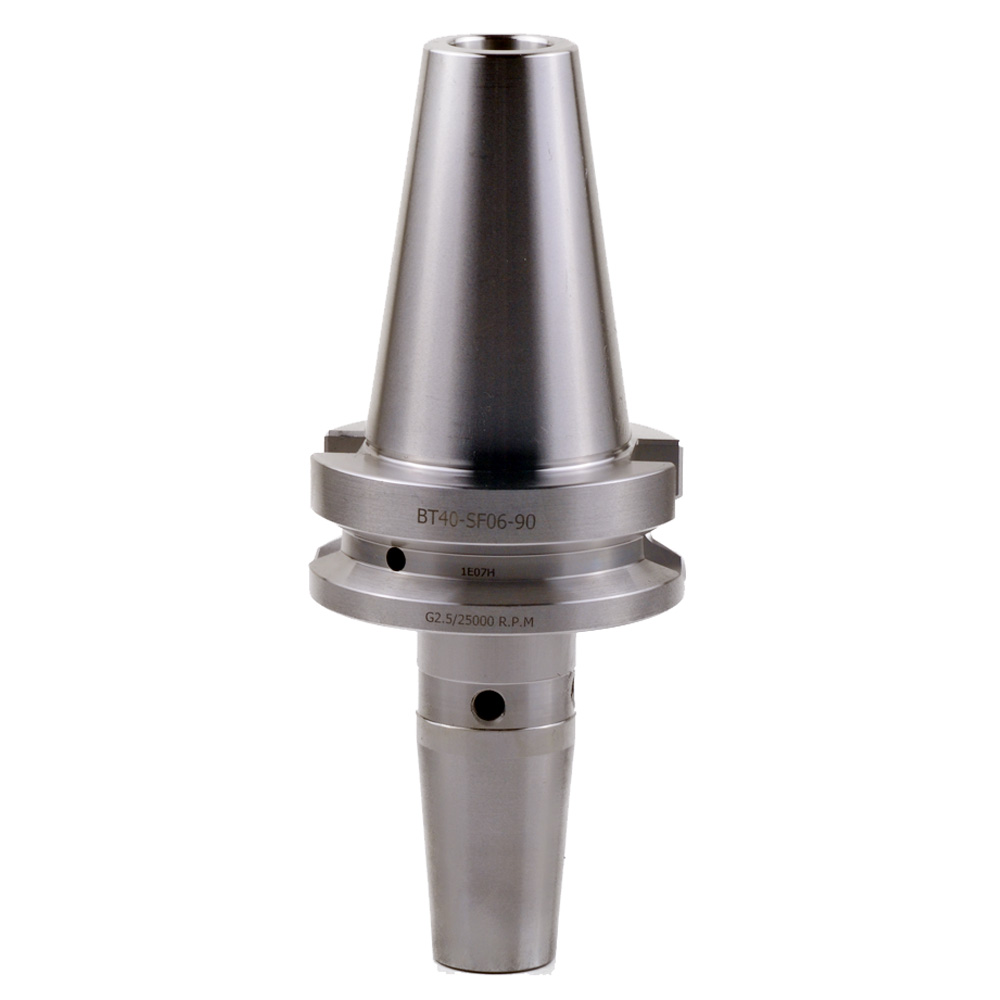

M16 BT40 6MM x3.15″ SHRINK FIT CHUCK TOOL HOLDER TIR0.0001″

In Stock

SKU: BT40SF0690

$99.99

M16 BT40 6MM x3.15″ SHRINK FIT TOOL HOLDER

High Precision Run-out: TIR 2μm or 0.0001″

Balance :G2.5  25,000rpm

Qty
Compare

M16 BT40 10MM x3.15″ SHRINK FIT TOOL HOLDER

MODEL BT40 SF06 80  RUN OUT (TIR) 0.0001″ NOSE  DIAMETER D 25MM
HOLDER TYPE SHRINK FIT BORE DIAMETER 6MM BORE DEPTH 22MM
SHANK TYPE BT40 DRAWBAR THREAD M16X2 NOSE  DIAMETER d 22MM
BALANCE G2.5 25000rpm Gage Length 3.15″ COOLANT NO

Shrink fit tool holder  for all BT40 spindle tool holder

The quality reach HAIMER shrink fit holder

Advantages of shrink tool holders:
1. Fast loading and unloading of tools, using heat shrinking machine to heat, 13KW high power can complete the tool installation and clamp within 5 seconds, cooling only 30 seconds, the unique water cooling device can prevent the accuracy of the tool holder from deteriorating.
2. High precision and small runout. The tool installation part does not have components such as nuts and collets required by collet chucks, simple and effective, cold shrinkage clamping is strong and stable, tool deflection ≤3μ, reducing tool wear and ensuring high precision during high-speed machining.

heat holder socks heat holder gloves heat holder thermal socks heat holder socks walmart ,High precision run out saving your cost-effective haimer shrink fit



SHRINK FIT TOOL HOLDER

Quality Control

















Material Application

H13 steel is the most widely used and most distinctive hot work die steel. Its main characteristics are:
(1) It has high hardenability and high compensation;
(2) Excellent thermal crack resistance, water cooling can be added in the workplace;
(3) It has medium abrasion resistance, and can also use infiltration carbon or nitriding process to increase its surface hardness, but it should slightly reduce the thermal crack resistance;
(4) Due to its reduced carbon content, the secondary hardening ability during tempering is poor;
(5) It can resist softening at higher temperatures, but the hardness drops rapidly when the use temperature is higher than 540°C (1000°F) (that is, the working temperature is 540°C);

Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Metric (mm)

Sales Unit

single

Product Category

Shrink Fit Tool Holder

Bore Diameter

6mm

Holder Type

BT40
