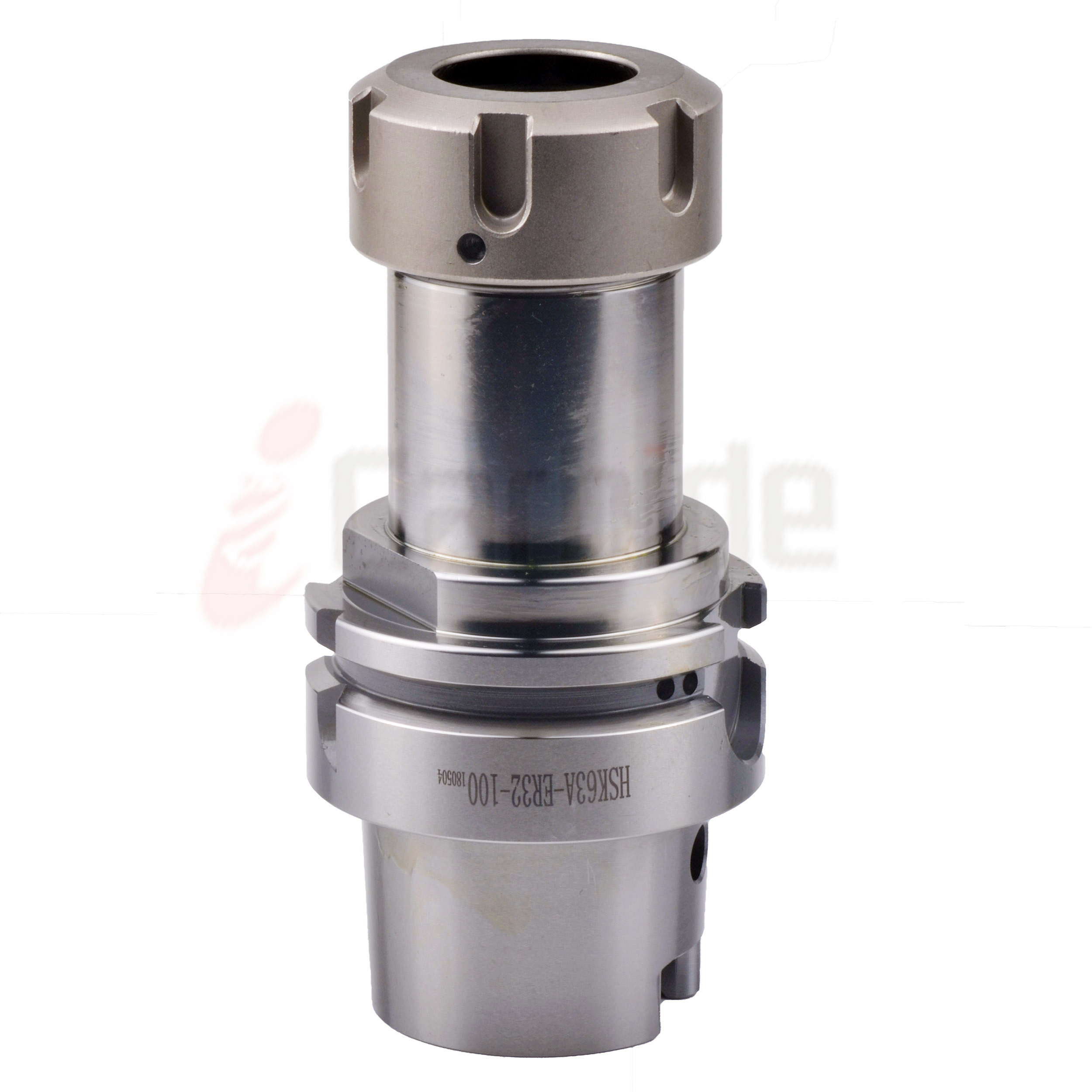

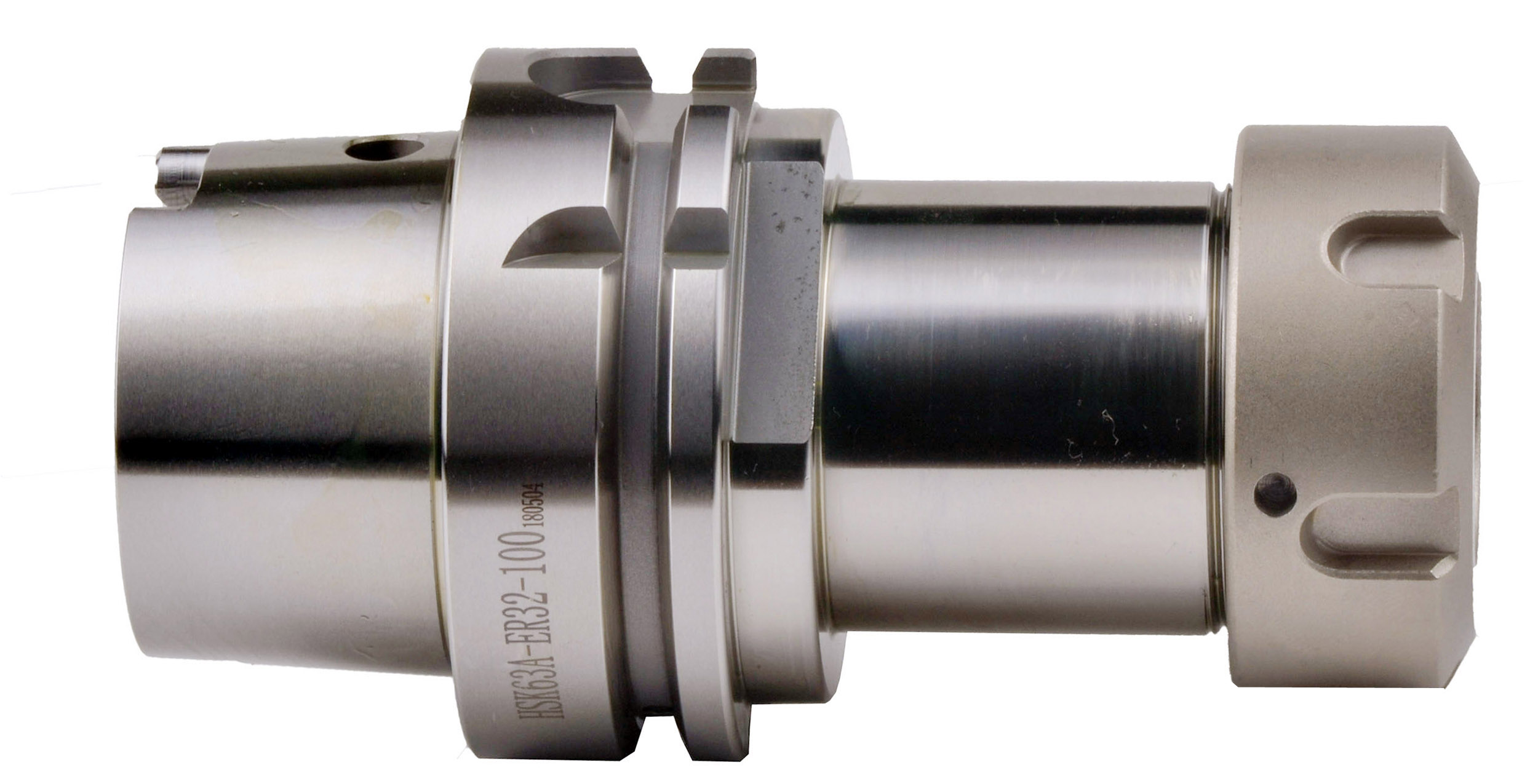

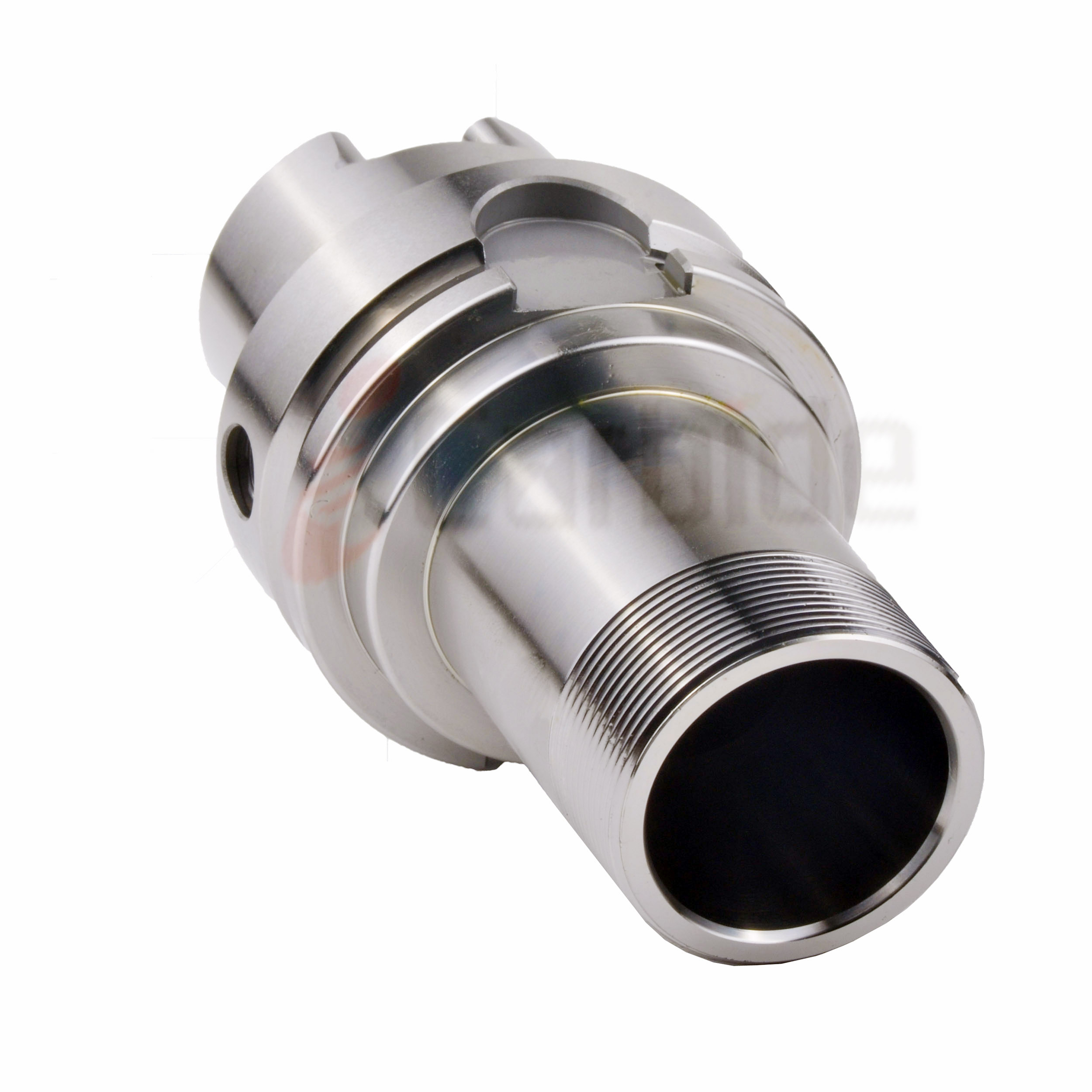

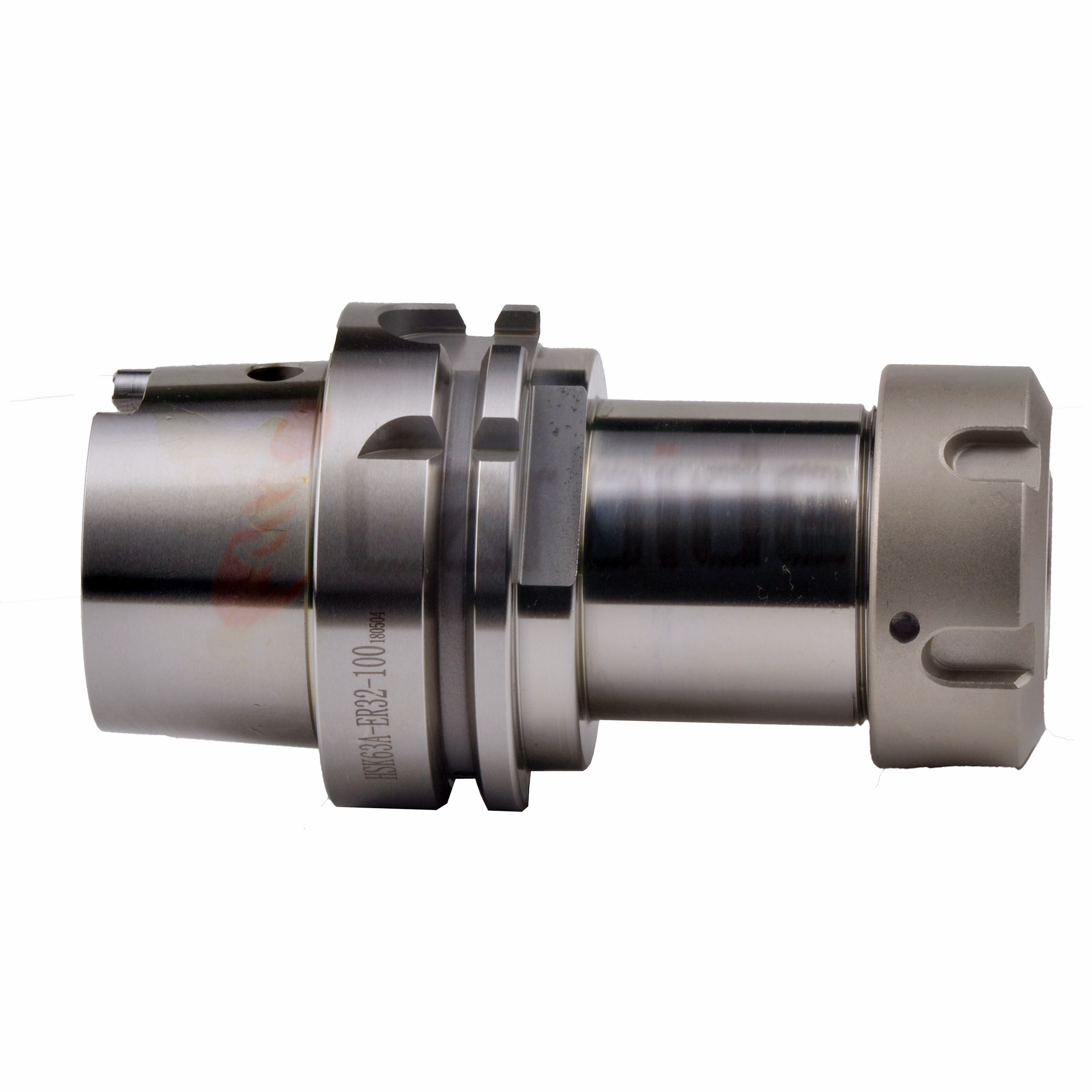

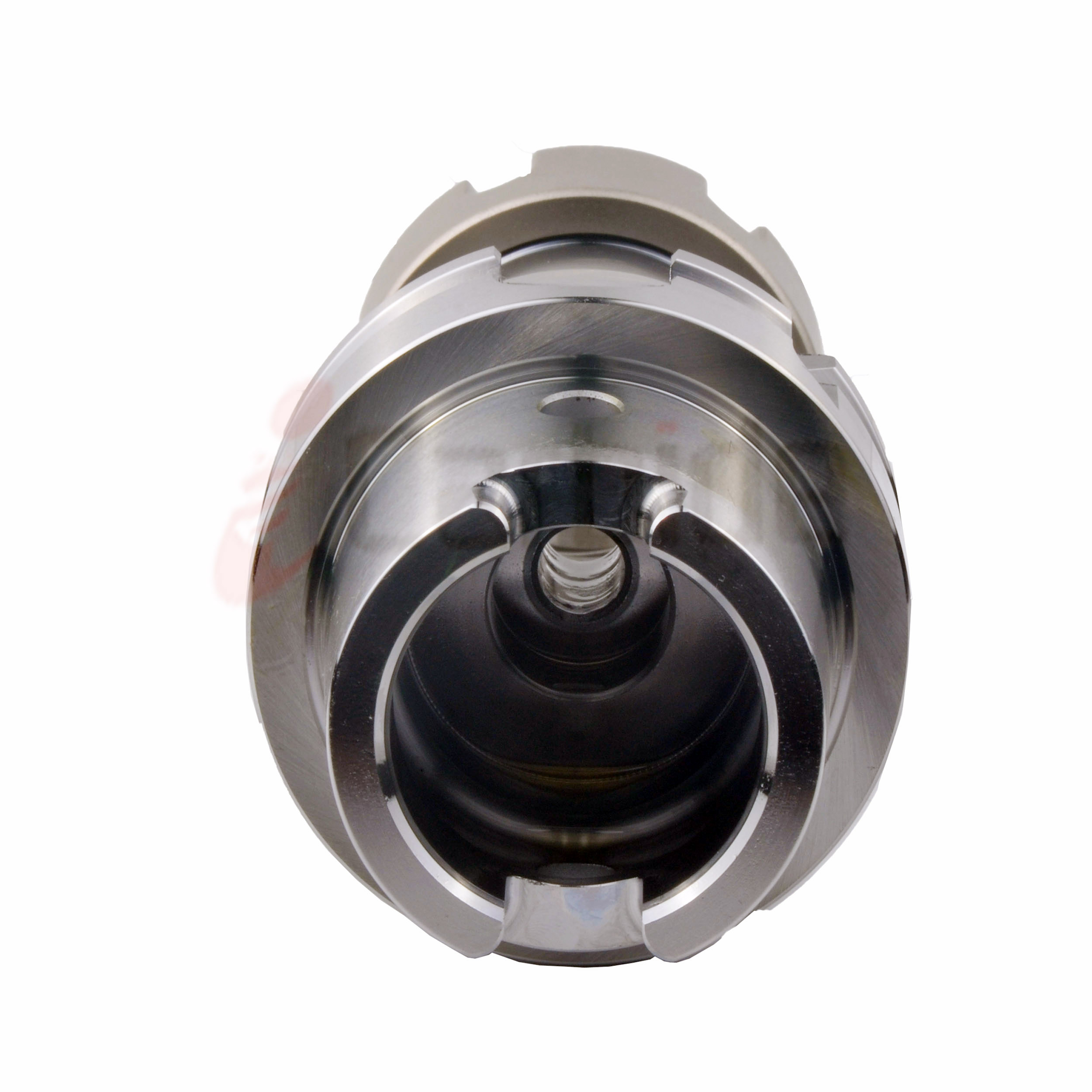

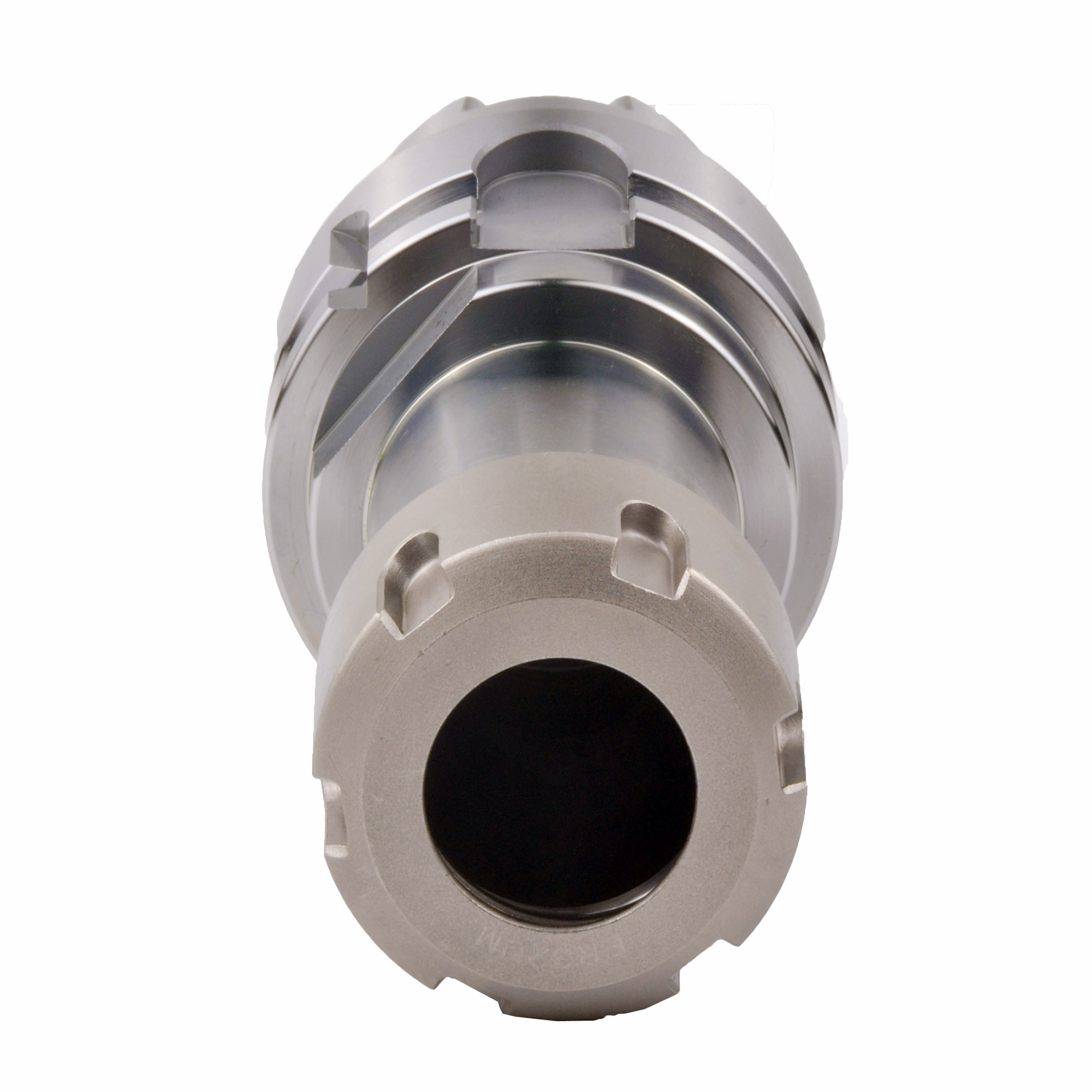

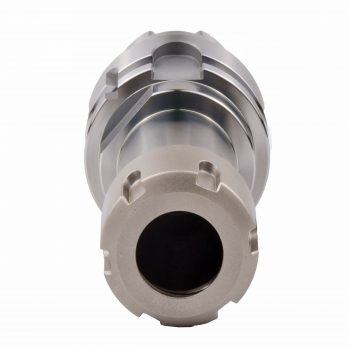

HSK63A ER32 COLLET CHUCK TOOL HOLDER

In Stock

SKU: HSK63AER32100

169.00$ 99.99$

HSK63A ER32 COLLET CHUCK TOOL HOLDER

High-Speed Cutting (G2.5 24,000rpm) Balance Available

HSK63A Tool Holder  High Precision Runout: TIR  5μm or 0.0002 ”





Qty

HSK63A ER32 COLLET CHUCK TOOL HOLDER

MODEL HSK63A ER32 100  RUN OUT (TIR) 0.0002″ NECK  DIAMETER D  1.5″
HOLDER TYPE ER COLLET CHUCK CLAMPING RANGE  3/32-3/4 CLAMPING SIZE ER32
SHANK TYPE HSK63A DRAWBAR THREAD M18x1 COLLET NUT ER32 UM
BALANCE G2.5 25,000rpm GAGE LENGTH 4″ COLOR SILVER

hsk63A er32 tool holder

High-Speed Cutting (G2.5 24,000rpm) Balance

High Precision Runout: TIR  5μm or 0.0002

Hardened:  surface HRC58 inside is HRC45

Protection: silver coated





Automatically grinding outside arbor and er collet taper





Parameters Table

HSK63A ER32 COLLET CHUCK TOOL HOLDER

HSK63F TAPER 2.87° TAPER D1 TAPER LENGTH FLANGE DIAMETER
DRAWBAR THREAD M18x1 40mm 32mm 63mm



 Material Application

a. Quenched and tempered structural steel: The carbon content of this type of steel is generally about 0.25% to 0.55%. For structural parts of a given cross-sectional size, when quenched and tempered
along the cross-section during quenching and tempering (quenching and tempering), the mechanics
The performance is good. If the hardening is not penetrated and free ferrite appears in the microstructure, the toughness decreases. For steels with a tendency to temper brittleness,
such as manganese steel, chromium steel, nickel-chromium steel, etc., they should be cooled quickly
after tempering. The quenching critical diameter of this type of steel increases with the increase in grain size and alloying element content. For example, 40Cr and 35SiMn steel are about 30-40mm,
and 40CrNiMo and 30CrNi2MoV steel is about 60-100mm, which is often used in manufacturing Structural
parts such as shafts and connecting rods with large loads.

b. Surface hardened structural steel: used to manufacture hard and wear-resistant surface parts and flexible parts, such as gears and shafts. In order to increase the toughness of the core of the part,
the carbon content in the steel should be low, generally 0.12 to 0.25%, and there is also an appropriate amount of alloy elements to ensure proper hardenability. Nitrided steel also needs to add alloy elements (such as Al, Cr, Mo, etc.) that are easy to form nitrides. Carburized or carbonitrided steel, after carburizing or carbonitriding at 850~950℃, quenched and used under low-temperature tempering (about 200℃). The nitrided steel is directly treated by nitriding
(480~580℃), and it is no longer quenched and tempered.



er collet chuck cat40 er32 HSK63A TOOL HOLDER er collet er32 collet set er20 collet sizes er50 collet chuck er20 collet chuck
er collet holder cat40 er16 hsk63f tool holder er20 collet er16 collet hsk63f er32 er40 collet er32 collet chuck
Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
