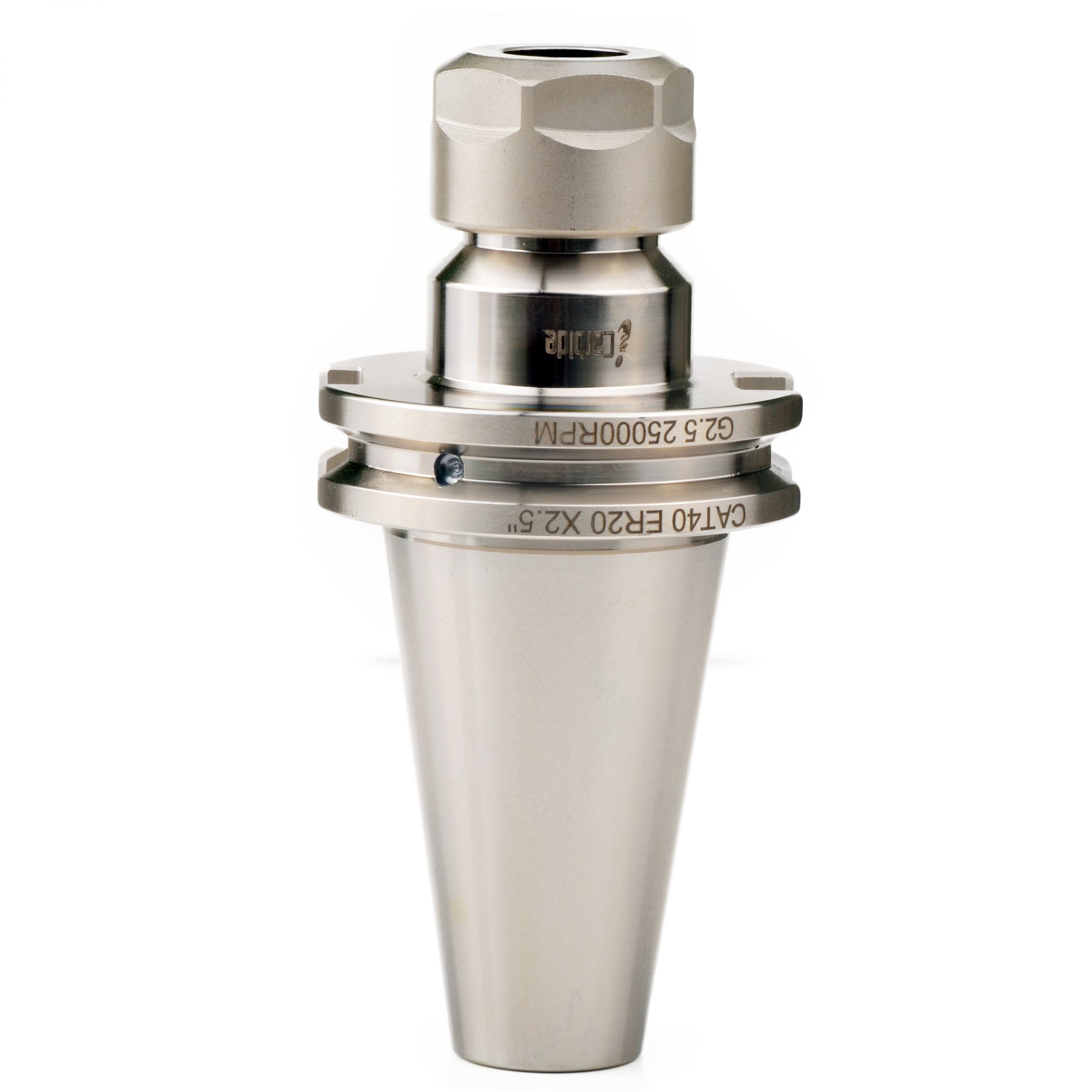

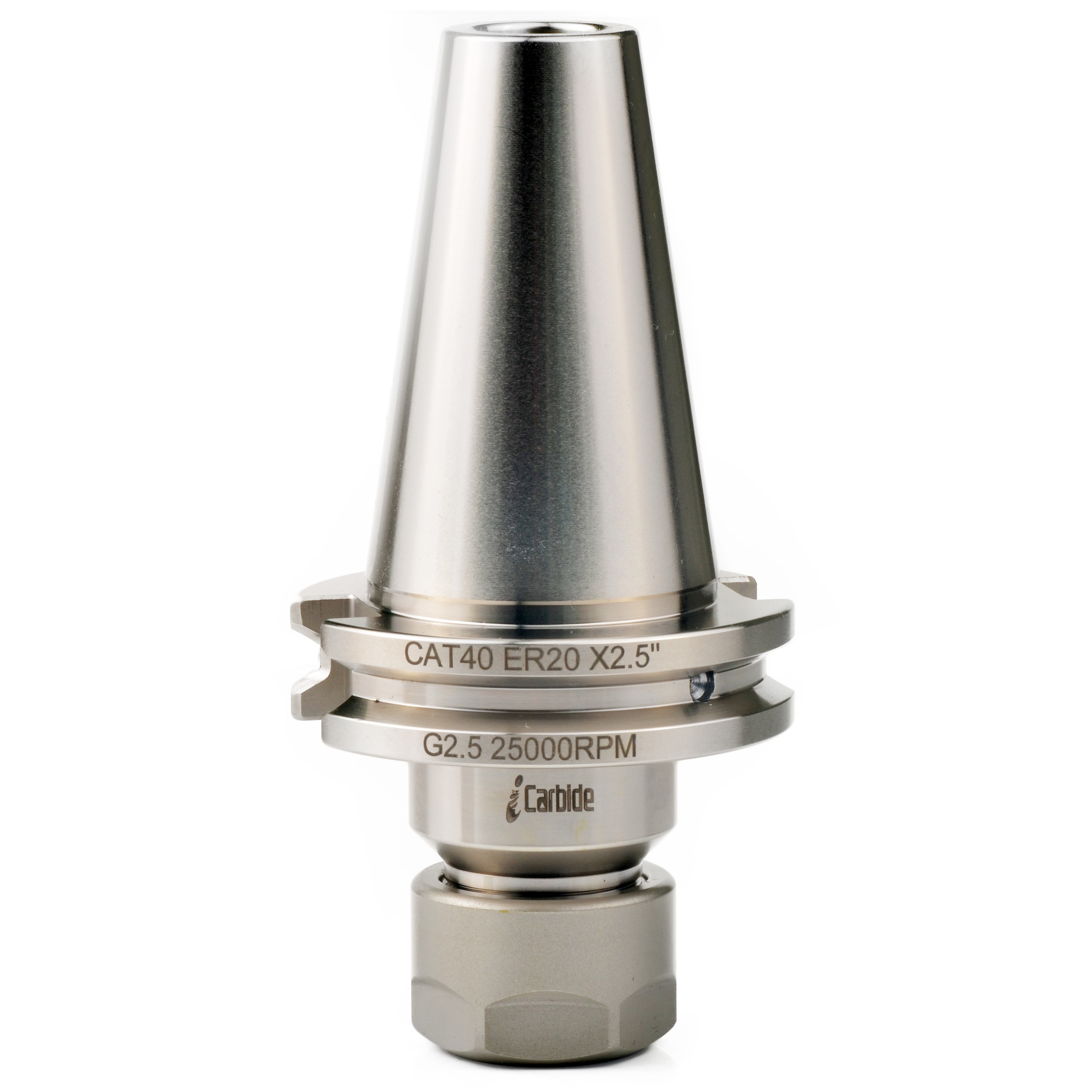

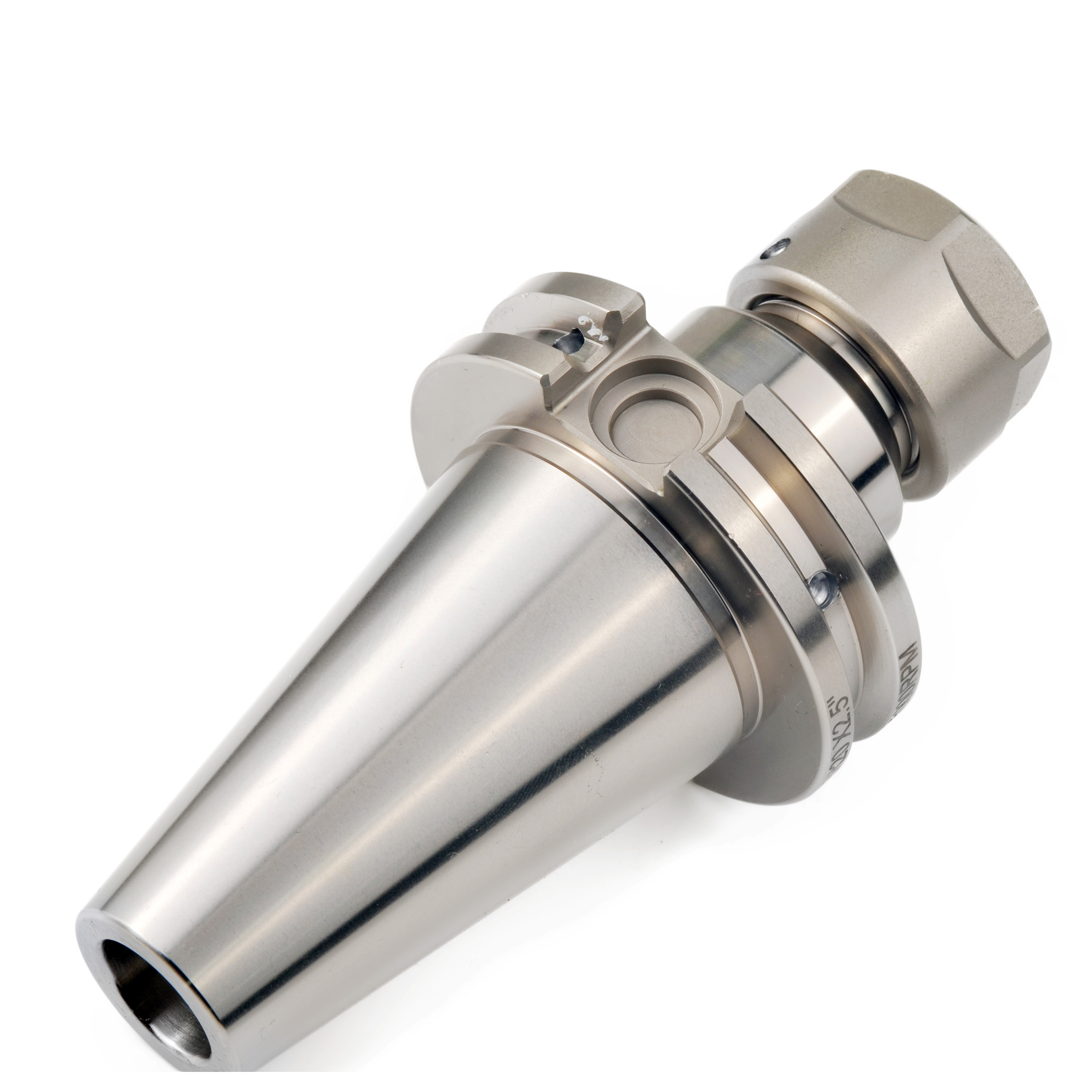

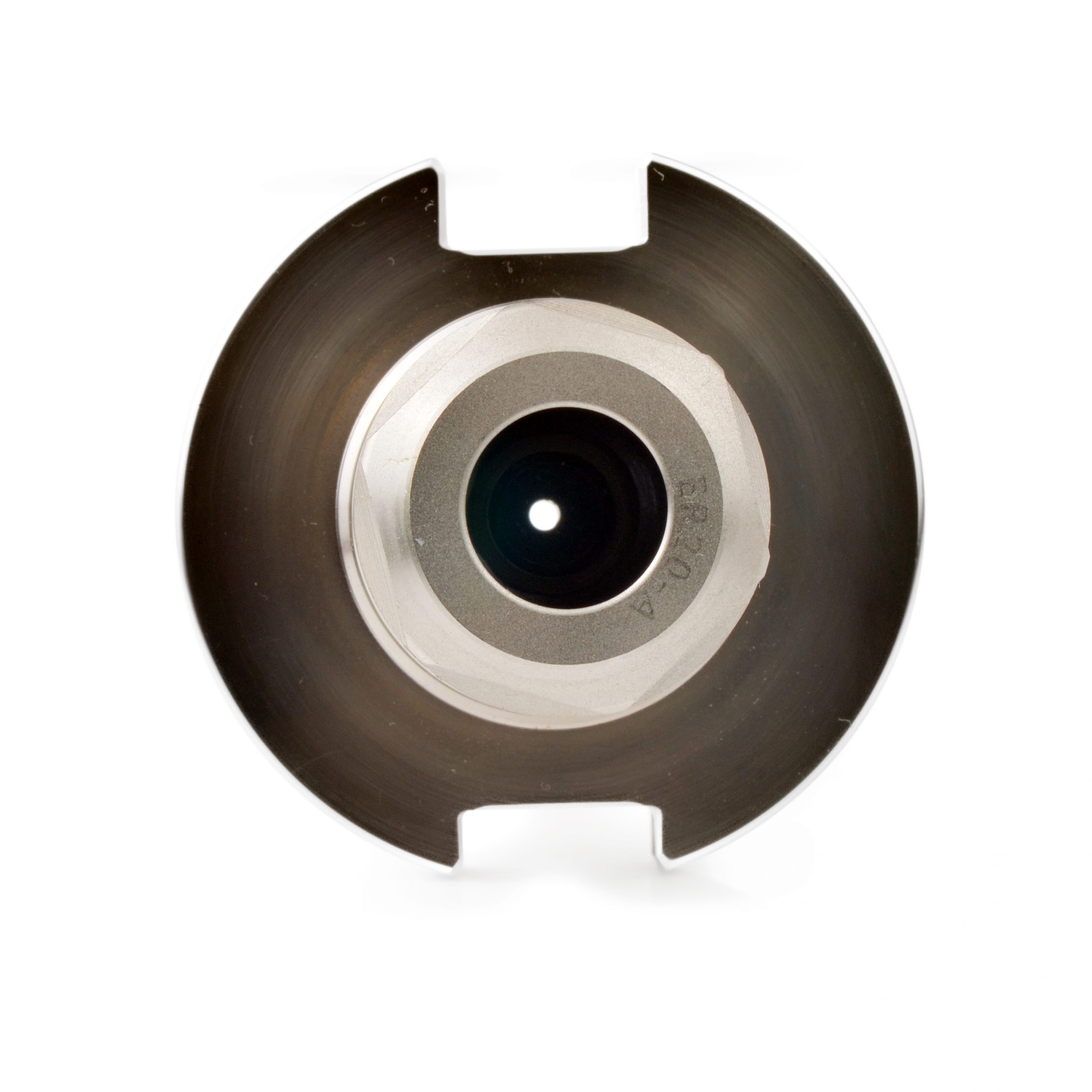

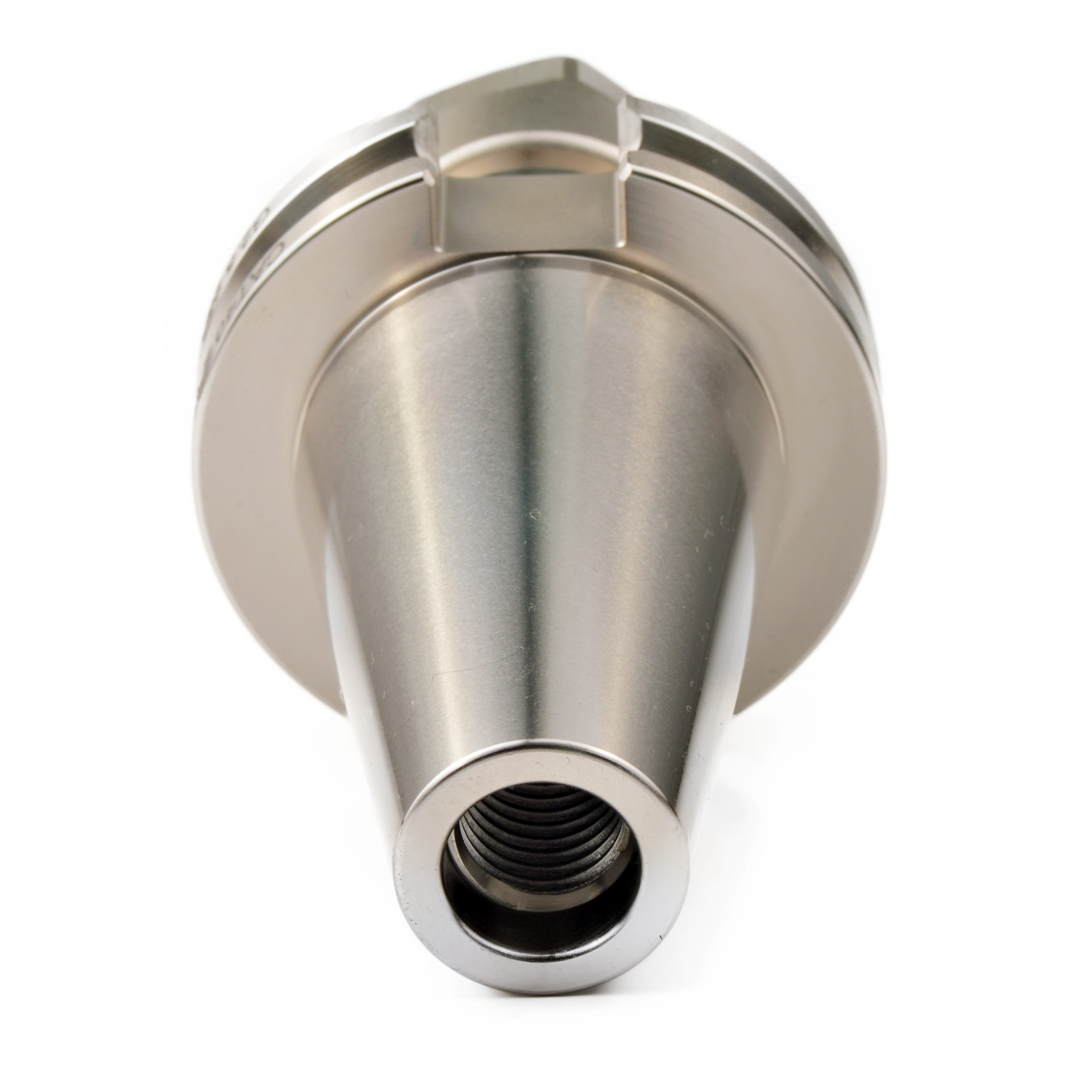

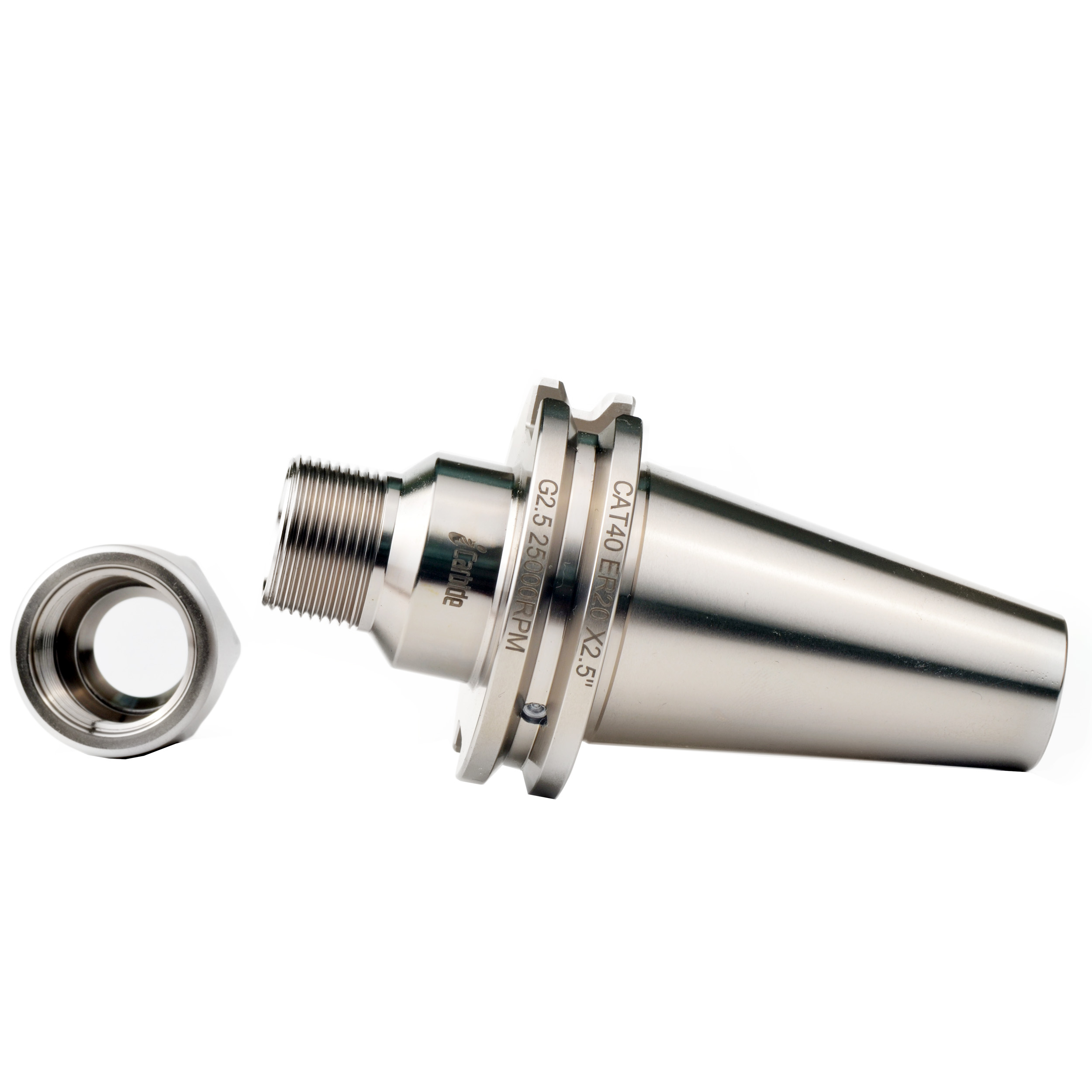

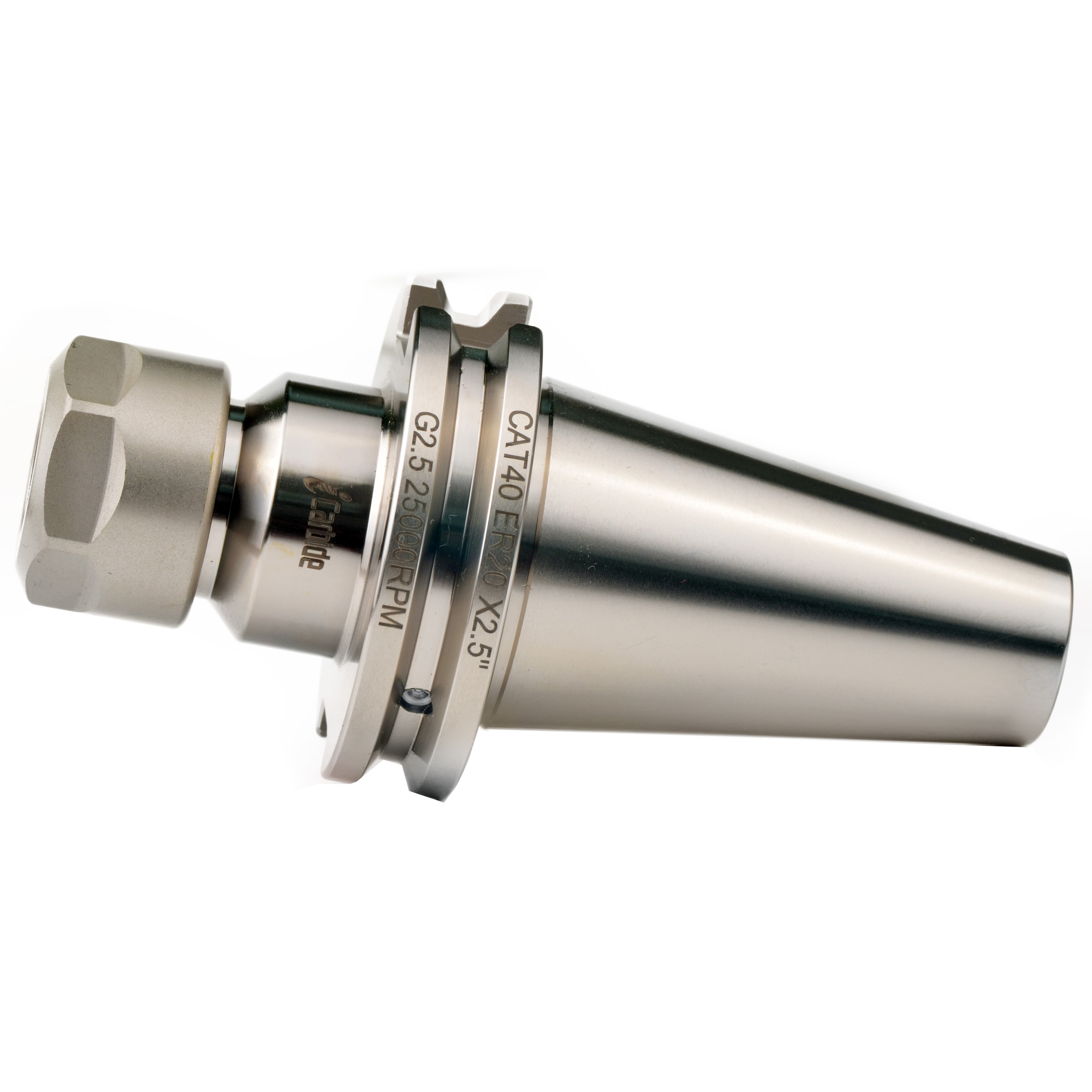

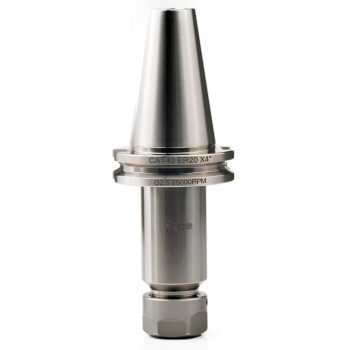

High Precision CAT40 ER20 2.5″ Collet Chuck Tool Holder G2.5 25000rpm

In Stock

SKU: SCAT4020250

$49.99

For all CAT40 Spindle Machine Collet Chuck Tool Holder

High-Speed Cutting (G2.5 25000rpm) Balance Available

High Precision Runout: TIR  5μm or 0.00015 ”



Qty
Compare

CAT40 ER COLLET CHUCK  TOOL HOLDER

MODEL CAT40-ER20-2.5″  RUN OUT (TIR) 0.00015″ NECK  DIAMETER D 1.33″
HOLDER TYPE ER COLLET CHUCK CLAMPING RANGE  1/16-1/2″ CLAMPING SIZE ER20
SHANK TYPE CAT40 DRAWBAR THREAD 5/8-11″ COLLET NUT ER20 HEX NUT
BALANCE G2.5 25000rpm Gage Length 2.5″ COOLANT YES



High-Speed Cutting (G2.5 25000rpm) Balance

High Precision Runout: TIR  5μm or 0.00015

Hardened:  surface HRC58 inside is HRC45

Protection: oxide black







Drawings & Parameters Table



CAT40 TAPER TAPER D1 L1 FLANGE D
DRAWBAR THREAD CAT40 5/8-11 UNC 1.75″ 2.69″ 2.5″



Related Tool Holder

Order NoModel (Silver Coated)L1(inch)D(inch)BalanceRun Out(TIR)
IC0001CAT40 ER16 2.5"2.51.1G2.5 /25000rpm0.003μm
IC0002CAT40 ER16 4"41.1G2.5 /25000rpm0.003μm
IC0003CAT40 ER16 6"61.1G2.5 /25000rpm0.003μm
IC0004CAT40 ER20 2.5"2.51.34G2.5 /25000rpm0.003μm
IC0005CAT40 ER20 4"41.34G2.5 /25000rpm0.003μm
IC0006CAT40 ER20 6"61.34G2.5 /25000rpm0.003μm
IC0007CAT40 ER25 2.5"2.51.65G2.5 /25000rpm0.003μm
IC0008CAT40 ER25 4"41.65G2.5 /25000rpm0.003μm
IC0009CAT40 ER25 6"61.65G2.5 /25000rpm0.003μm
IC0010CAT40 ER32 2.5"2.51.97G2.5 /25000rpm0.003μm
IC0011CAT40 ER32 4"41.97G2.5 /25000rpm0.003μm
IC0012CAT40 ER32 6"61.97G2.5 /25000rpm0.003μm
IC0013CAT40 ER40 4"42.48G2.5 /25000rpm0.003μm
IC0014CAT40 Er32 0.5"0.50.75G2.5 /25000rpm0.003μm
IC0015CAT40 ER11M 6"60.75G2.5 /25000rpm0.003μm
IC0016CAT40 ER11M 4"40.75G2.5 /25000rpm0.003μm
IC0017CAT40 ER16M 2"20.87G2.5 /25000rpm0.003μm
IC0018CAT40 ER16M 4"40.87G2.5 /25000rpm0.003μm
IC0019CAT40 ER20M 2"21.1G2.5 /25000rpm0.003μm
IC0020CAT40 ER20M 4"41.1G2.5 /25000rpm0.003μm
Weight 2.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Inch (in)

Sales Unit

single

Product Category

Collet Chuck Tool Holder

Collet Series

ER20

Holder Type

CAT40
