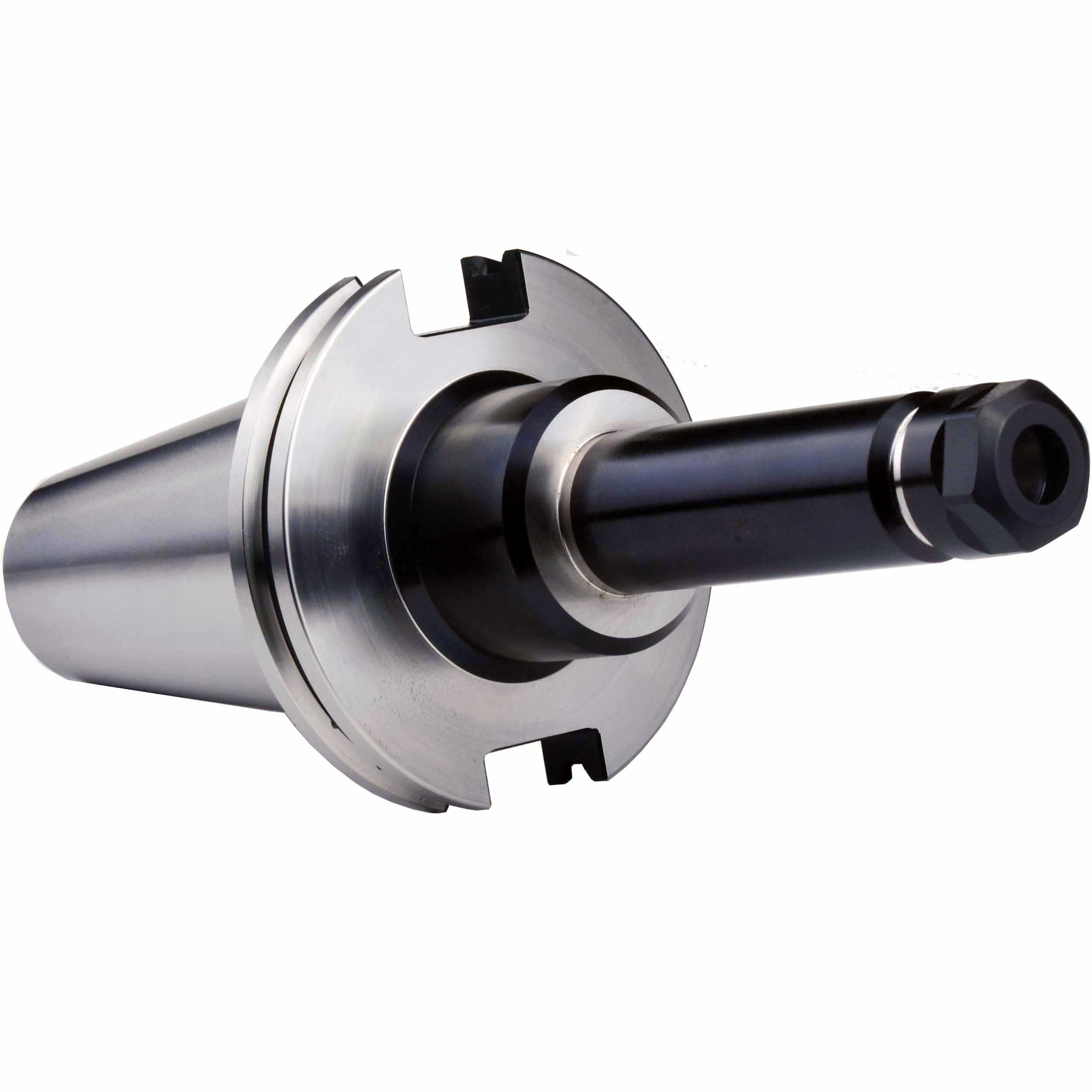

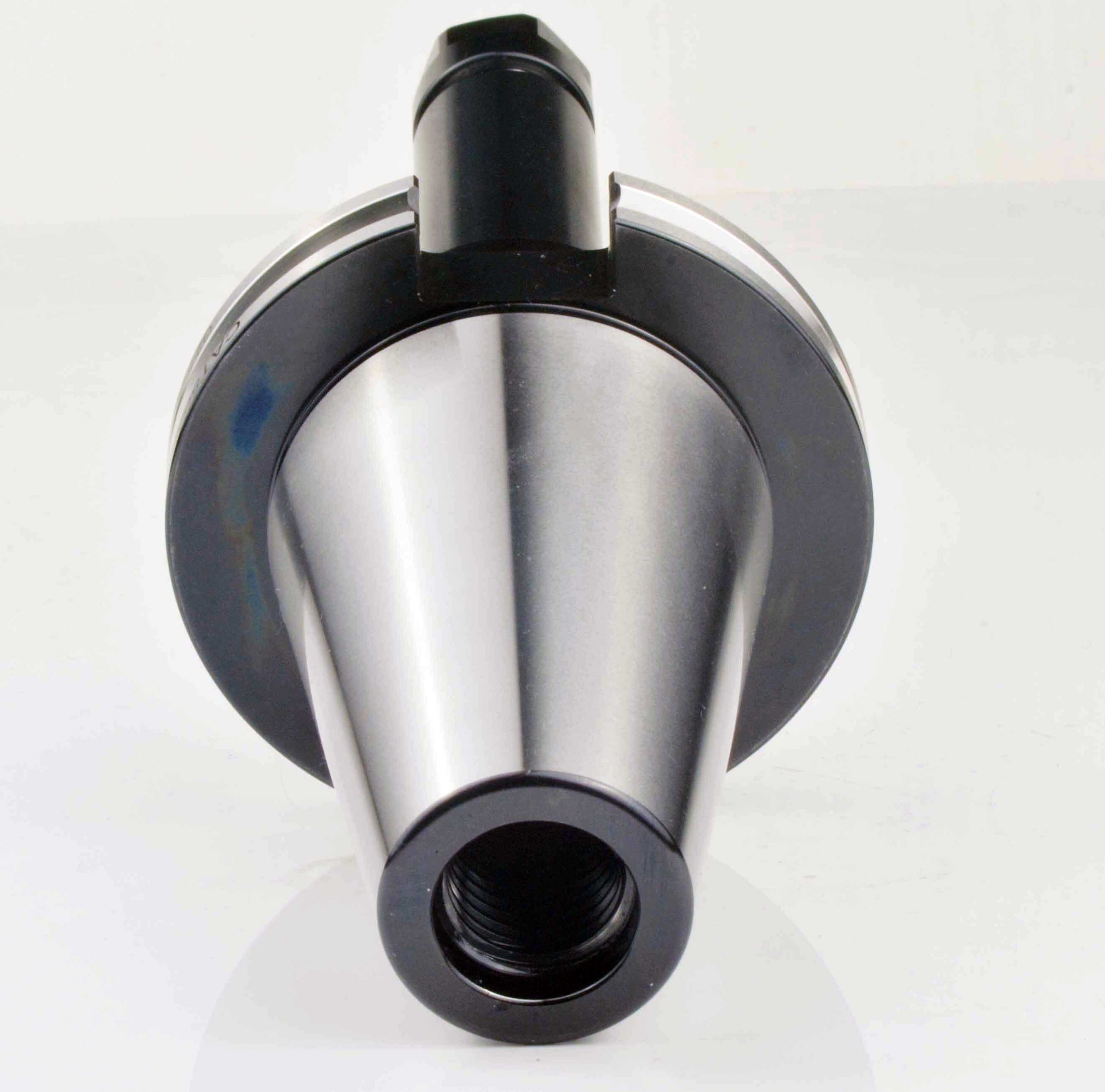

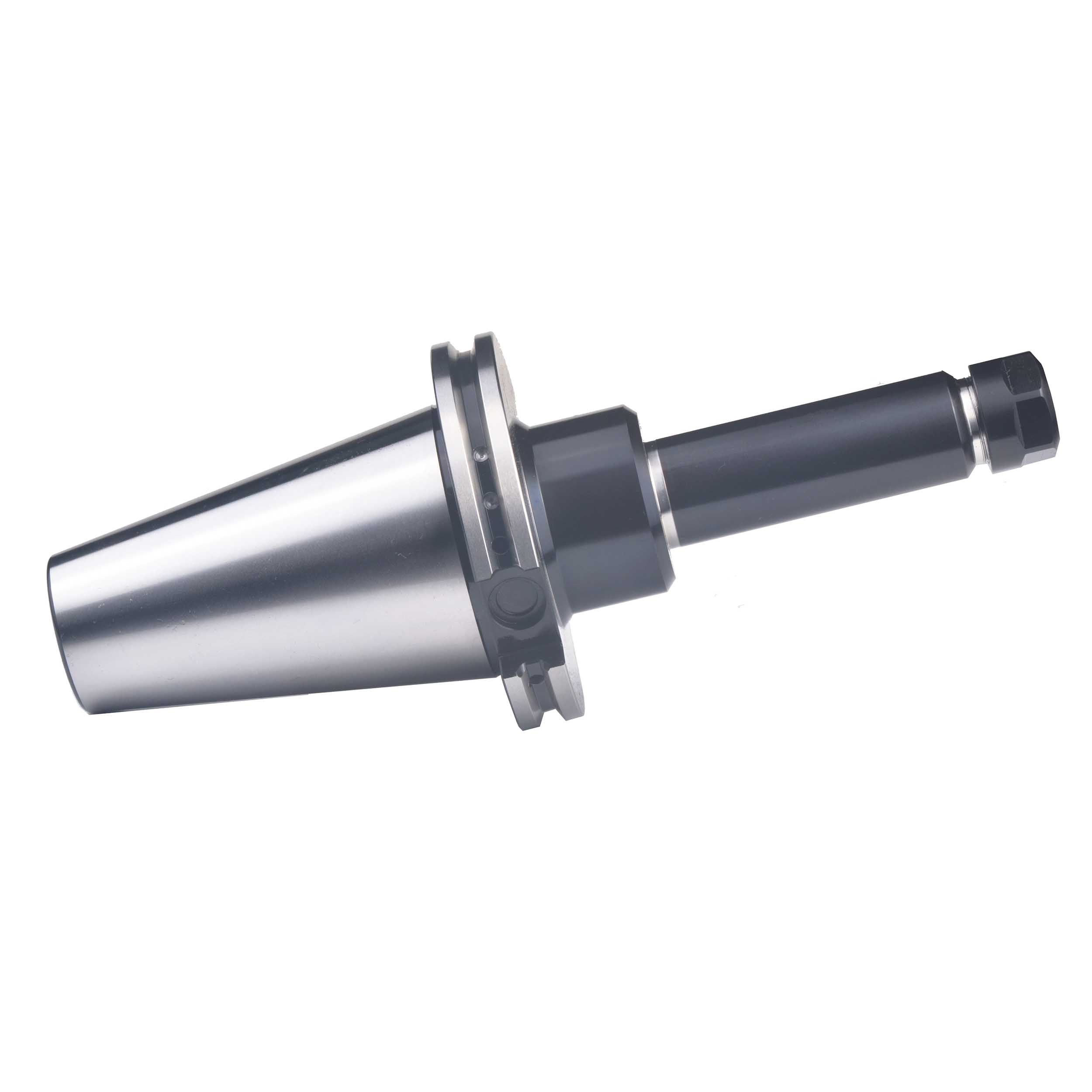

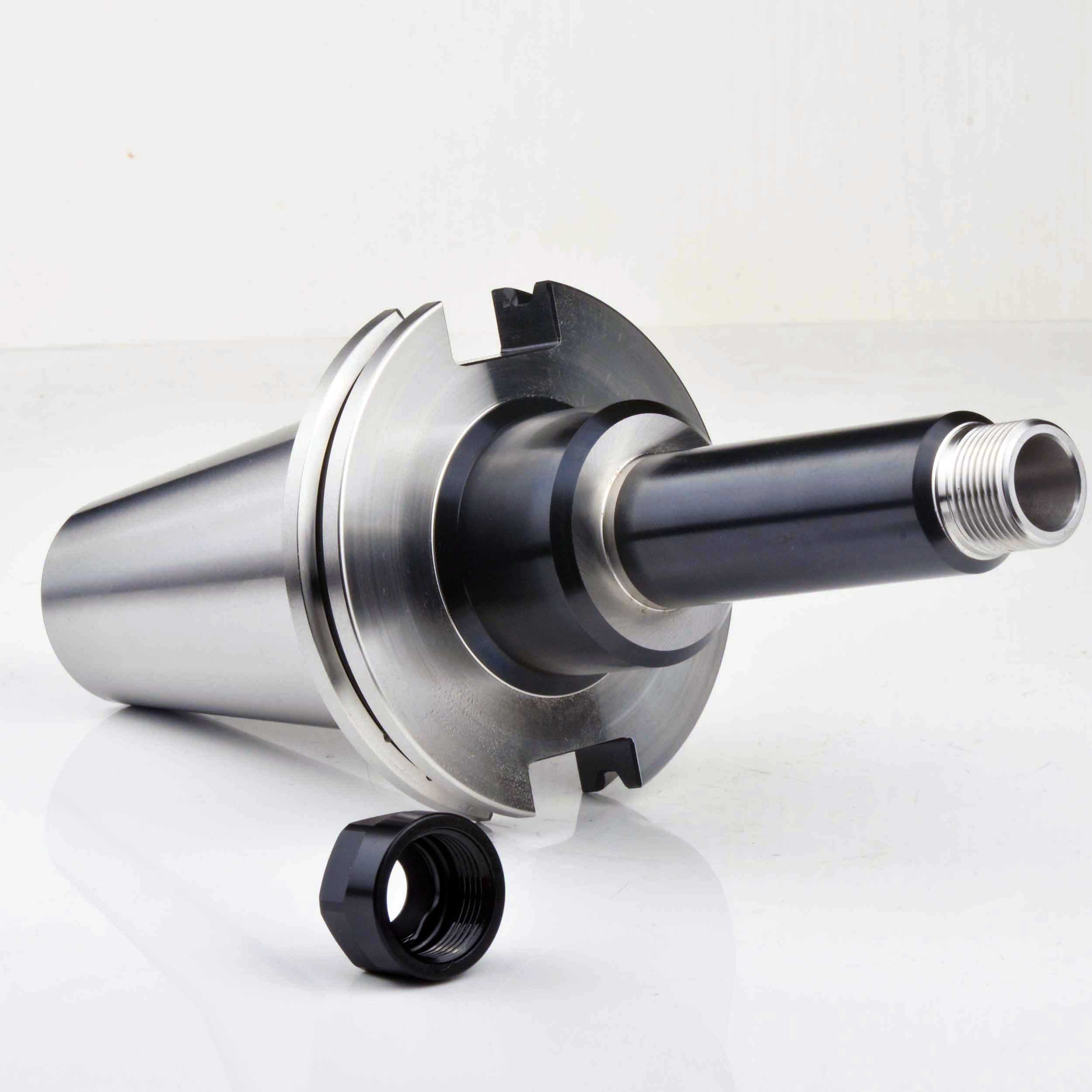

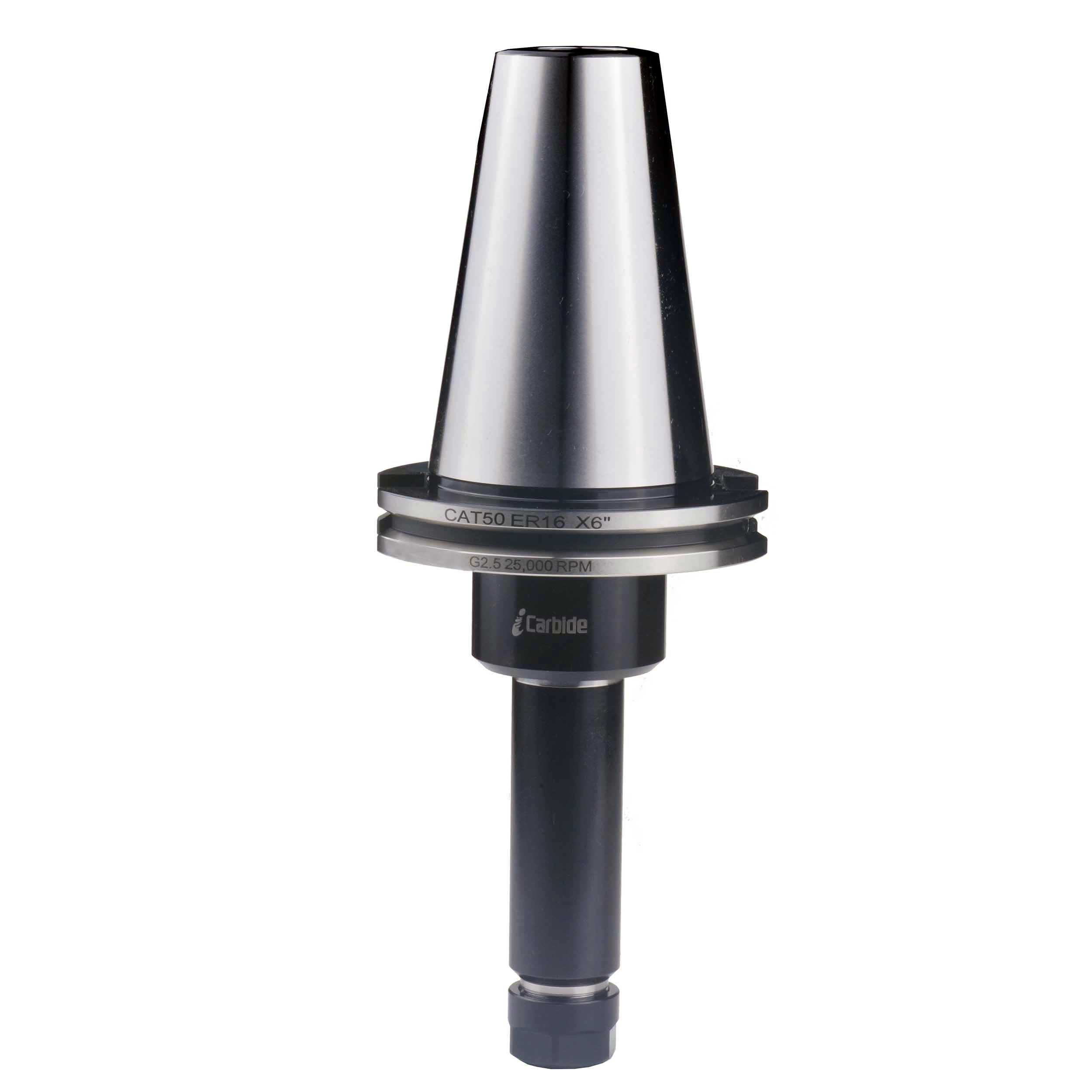

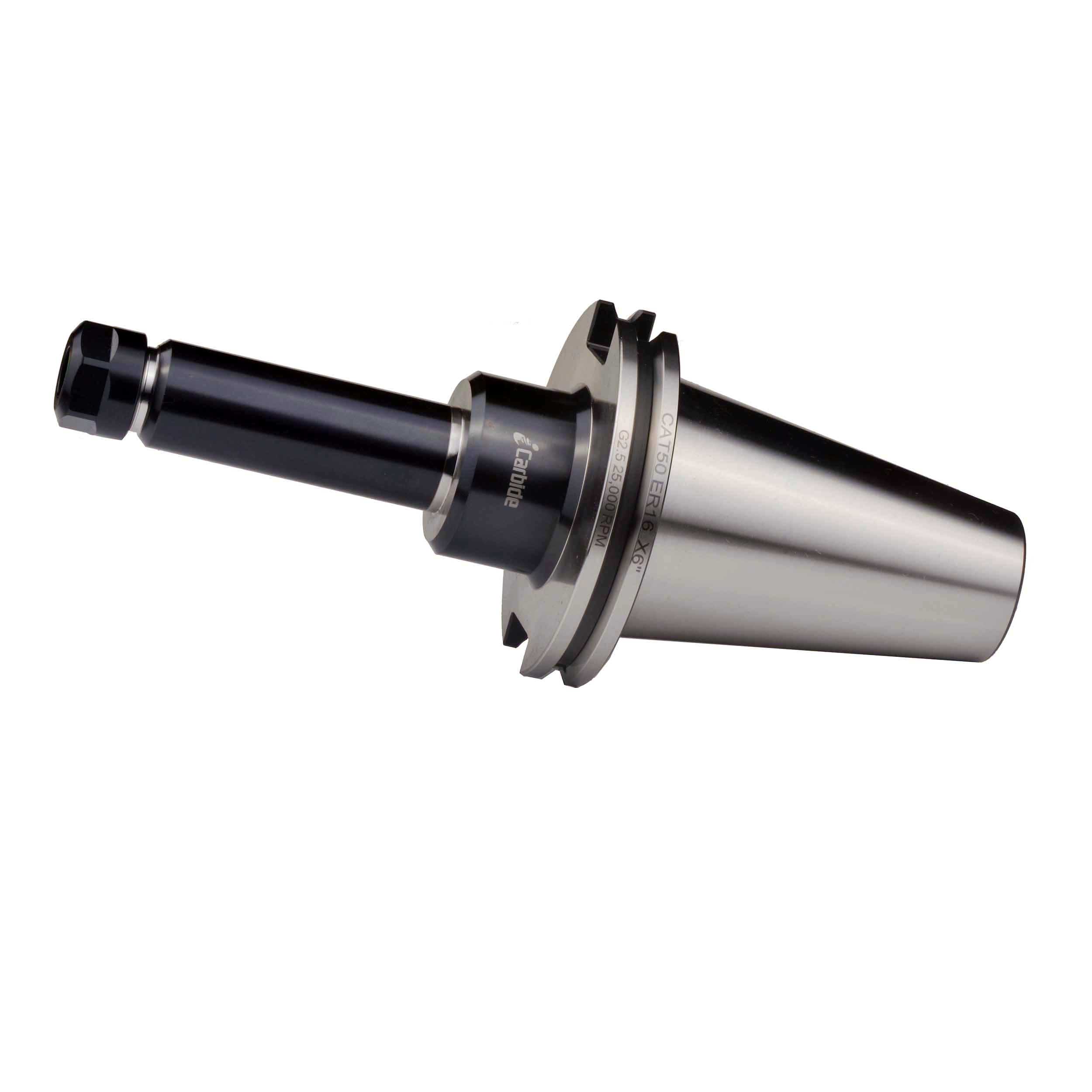

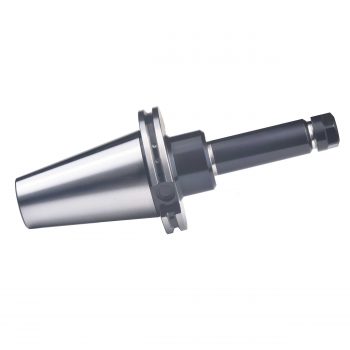

CAT50 ER16 6″ Collet Chuck Tool Holder

Out of stock

SKU: BCAT50ER16600

$69.99

For all CAT50 Spindle Machine Collet Chuck Tool Holder

High-Speed Cutting (G2.5 25000rpm) Balance Available

High Precision Runout: TIR  5μm or 0.00015 ”



Out of stock

Compare

CAT50 ER16 6″ Collet Chuck Tool Holder

MODEL CAT50-ER16-6″  RUN OUT (TIR) 0.00015″ NECK  DIAMETER D 1.2″
HOLDER TYPE ER COLLET CHUCK CLAMPING RANGE  3/32-3/8″ CLAMPING SIZE ER16
SHANK TYPE CAT50 DRAWBAR THREAD 1-8″ COLLET NUT ER16 HEX
BALANCE G2.5 25000rpm Gage Length 2.5″ COOLANT YES



High-Speed Cutting (G2.5 25000rpm) Balance

High Precision Runout: TIR  5μm or 0.00015

Hardened:  surface HRC58 inside is HRC45

Protection: oxide black



Automatically grinding outside arbor and er collet taper



Drawings & Parameters Table



CAT50 TAPER TAPER D1 L1 FLANGE D
DRAWBAR THREAD CAT40 5/8-11 UNC 2.75″ 6″ 3.8″
