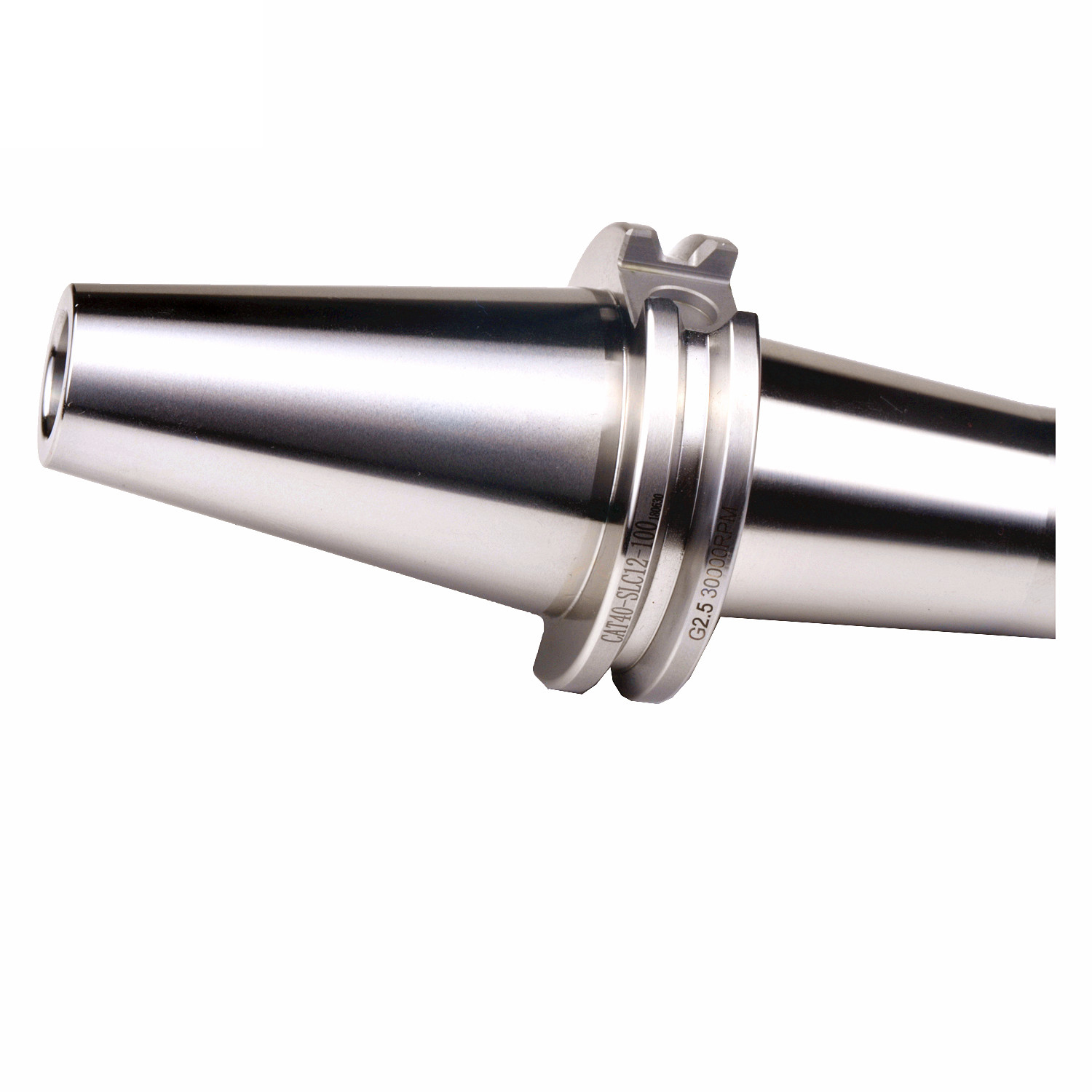

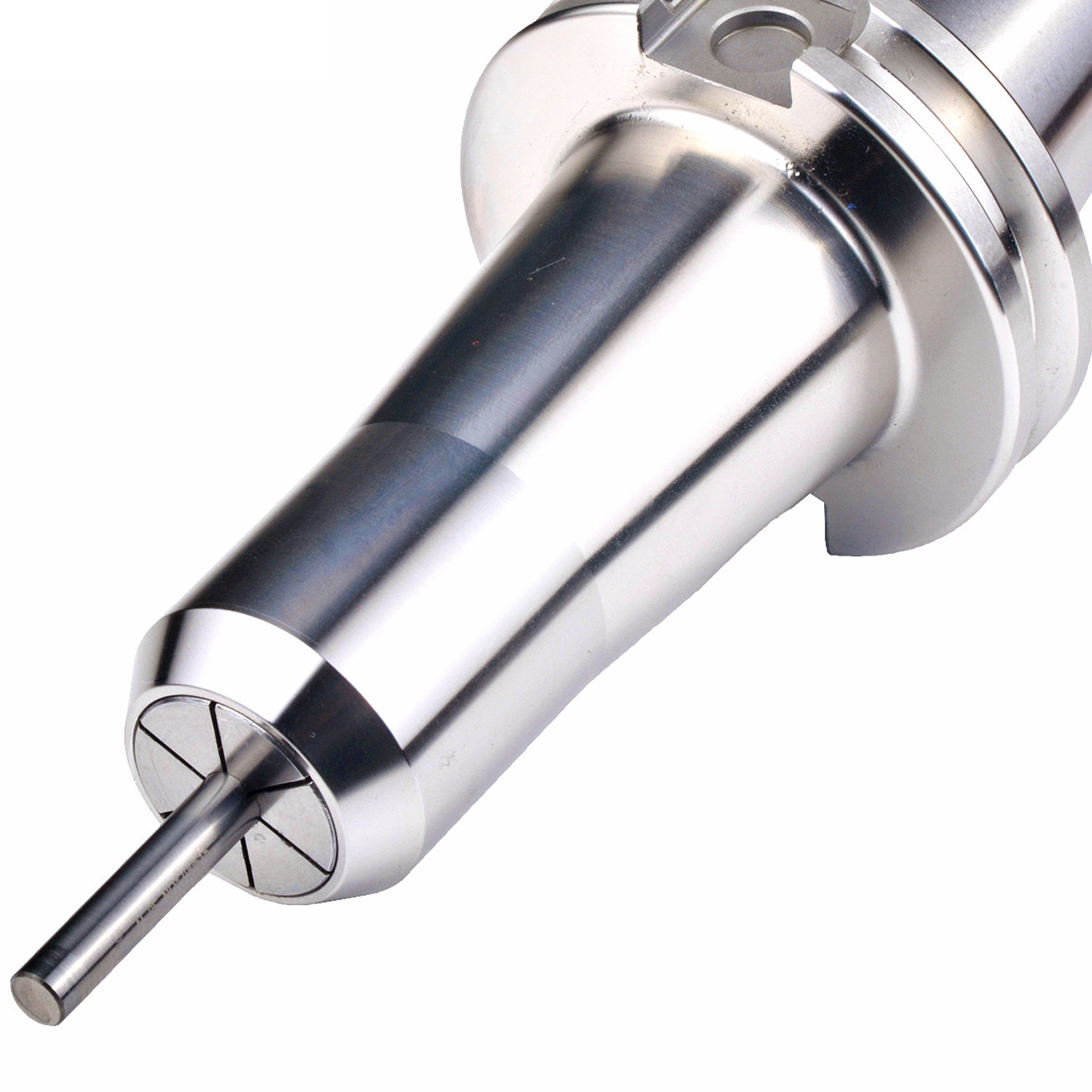

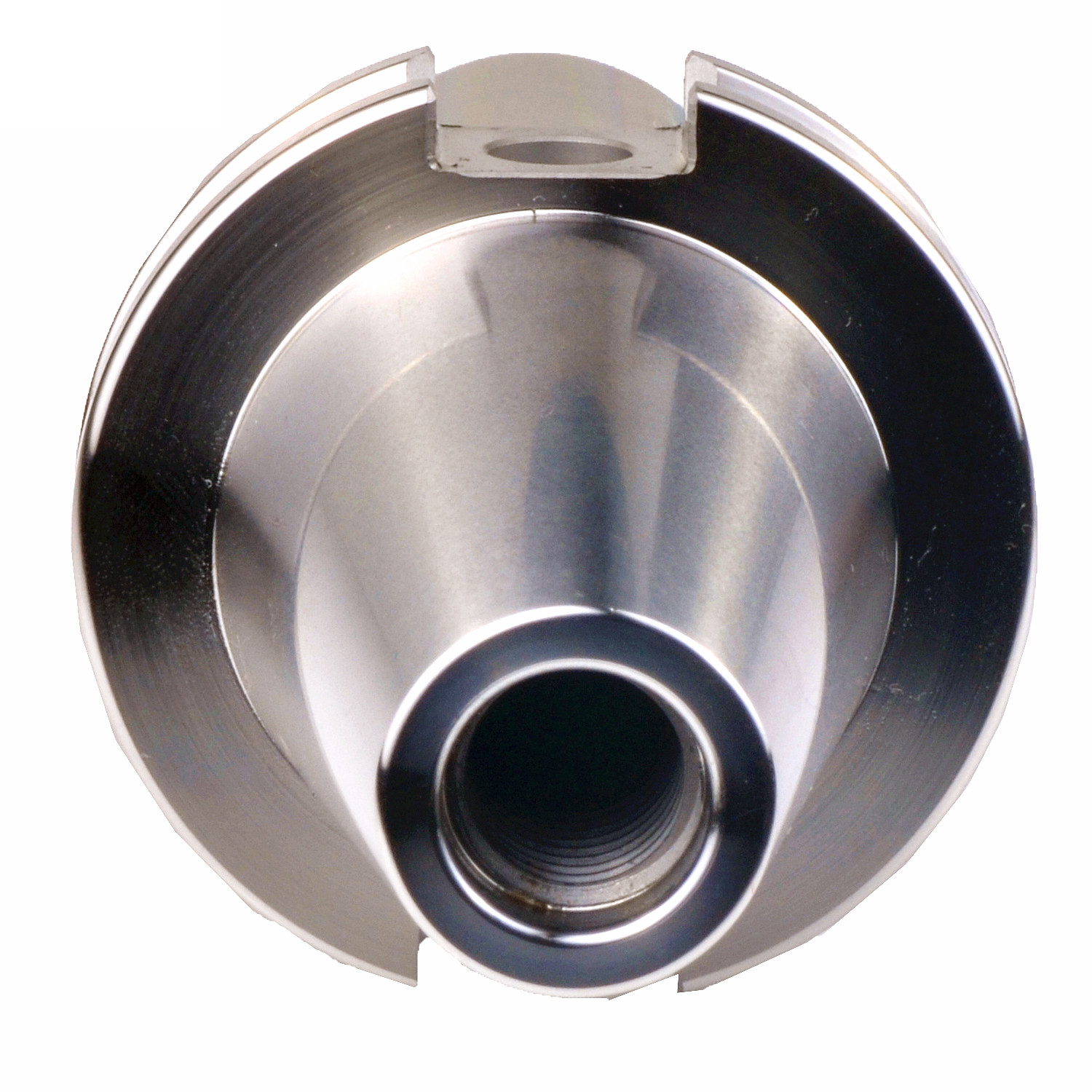

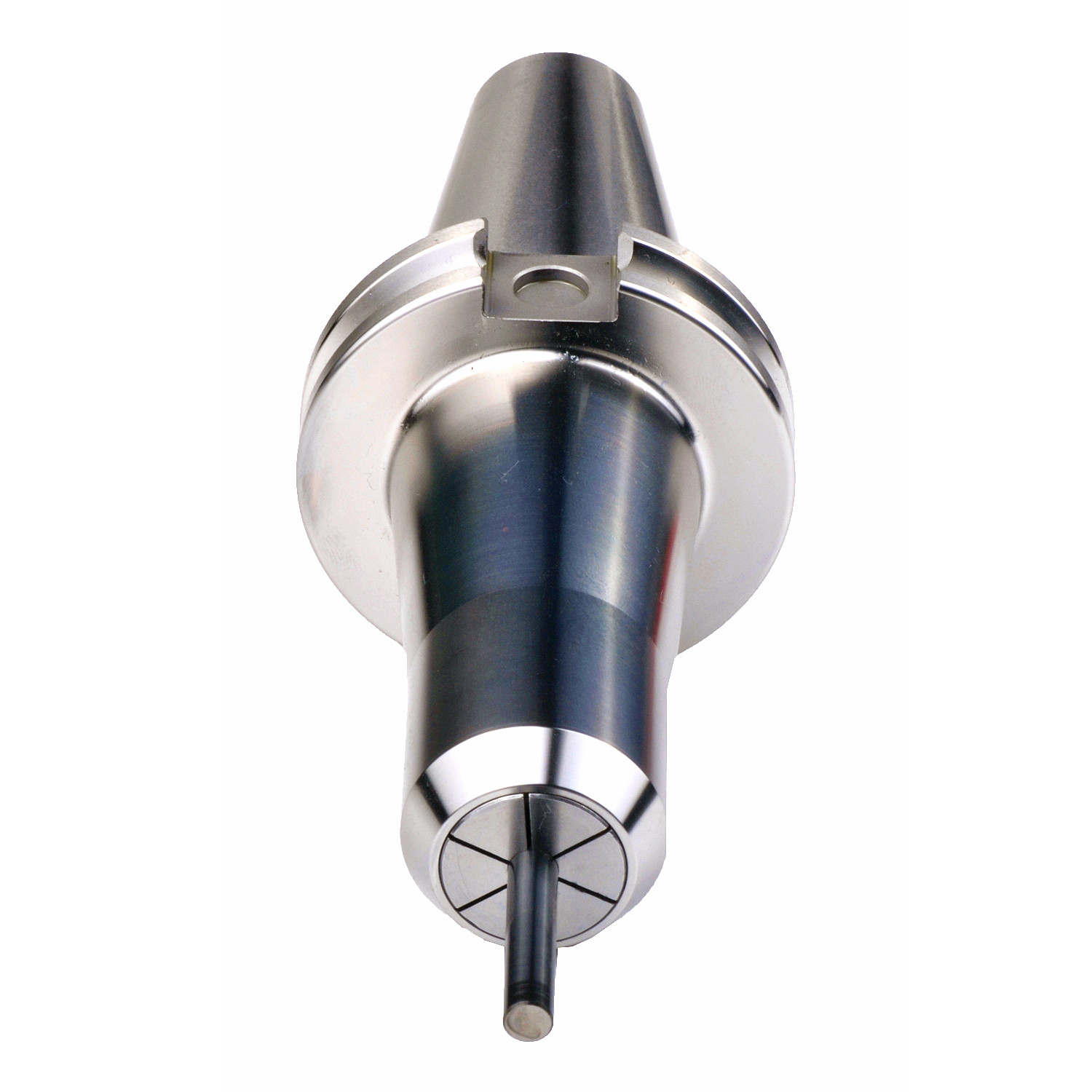

CAT40 SLIM FIT COLLET CHUCK TOOL HOLDER AND 5pcs SLM COLLET 4-12MM

In Stock

SKU: CAT40SLM1205

$149.99

For all CAT40 Spindle Machine Collet Chuck Tool Holder

High-Speed Cutting (G2.5 25000rpm) Balance Available

High Precision Runout: TIR  5μm or 0.00015 ”



Qty
Compare

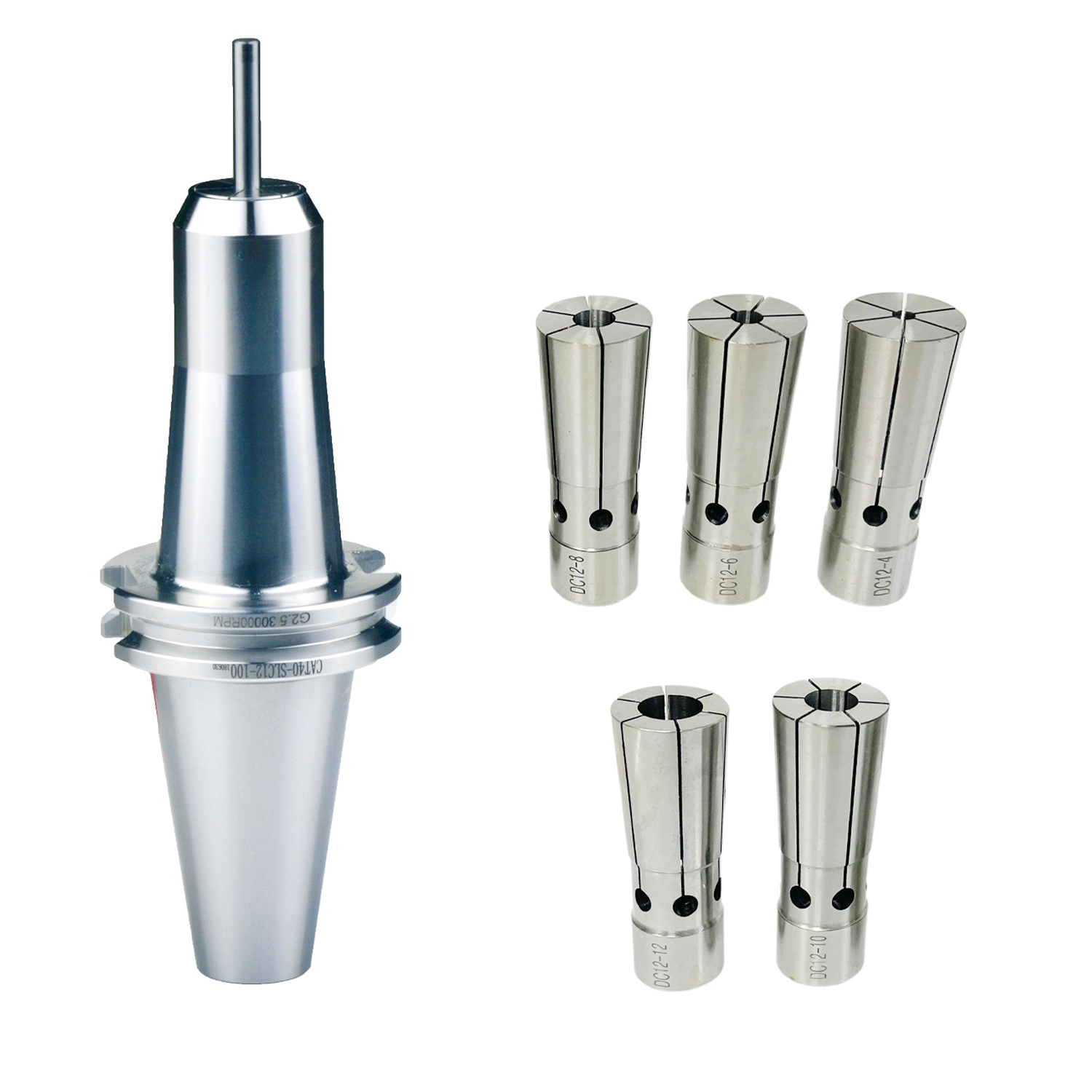

CAT40 SLIM FIT COLLET CHUCK TOOL HOLDER +5pcs COLLET

MODEL CAT50-SLM12 4.0  RUN OUT (TIR) 0.0002″ NECK  DIAMETER D 1.40″
HOLDER TYPE SLM COLLET CHUCK CLAMPING RANGE  0.125-0.5 CLAMPING SIZE SLM12
SHANK TYPE CAT50 DRAWBAR THREAD 5/8-11 T thread M12
BALANCE G2.5 25000rpm Gage Length 4.0″ COOLANT YES



High-Speed Cutting (G2.5 25000rpm) Balance

High Precision Runout: TIR  5μm or 0.00015

Hardened:  surface HRC58 inside is HRC45

Protection: silver color

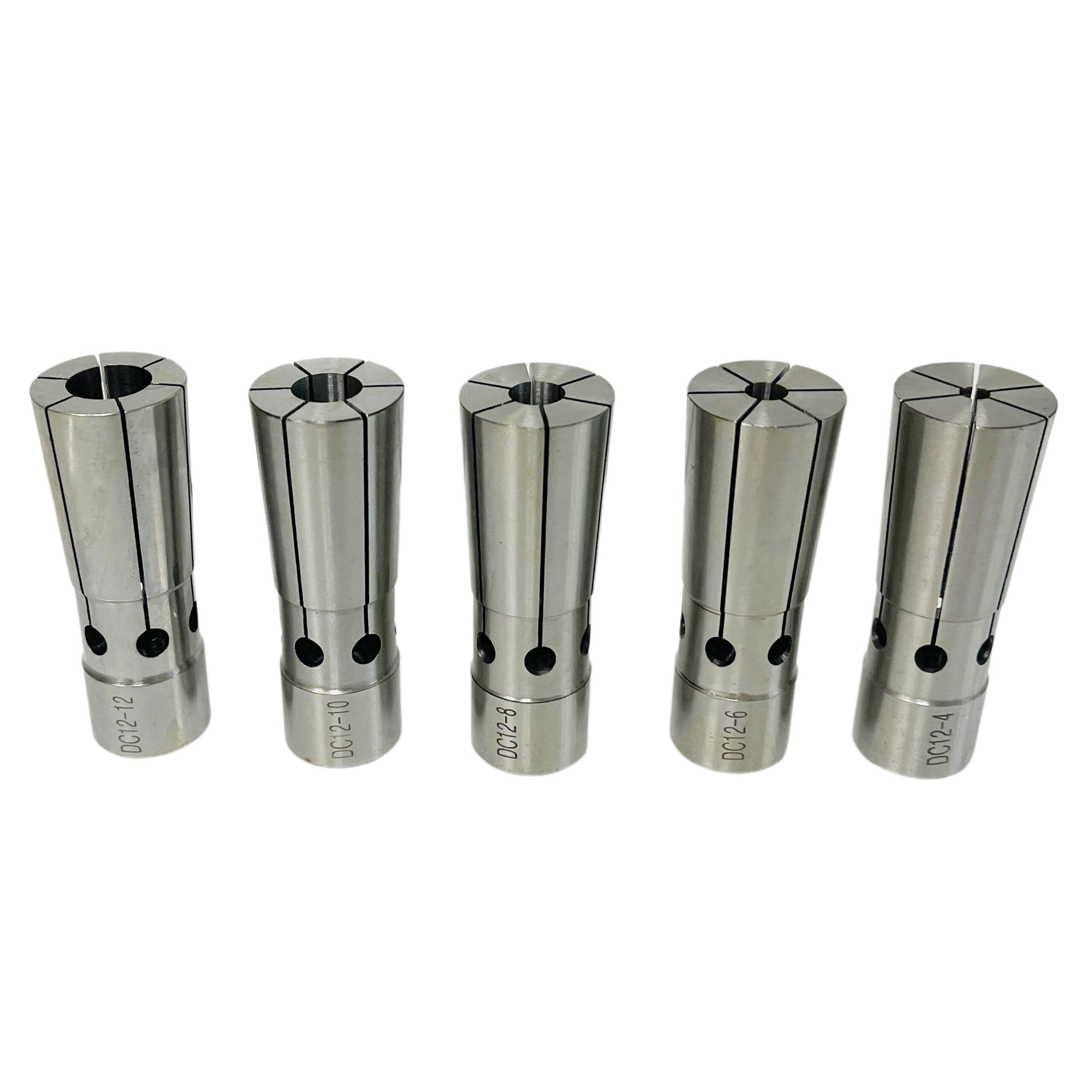

5pcs collet include 4,6,8,10,12mm

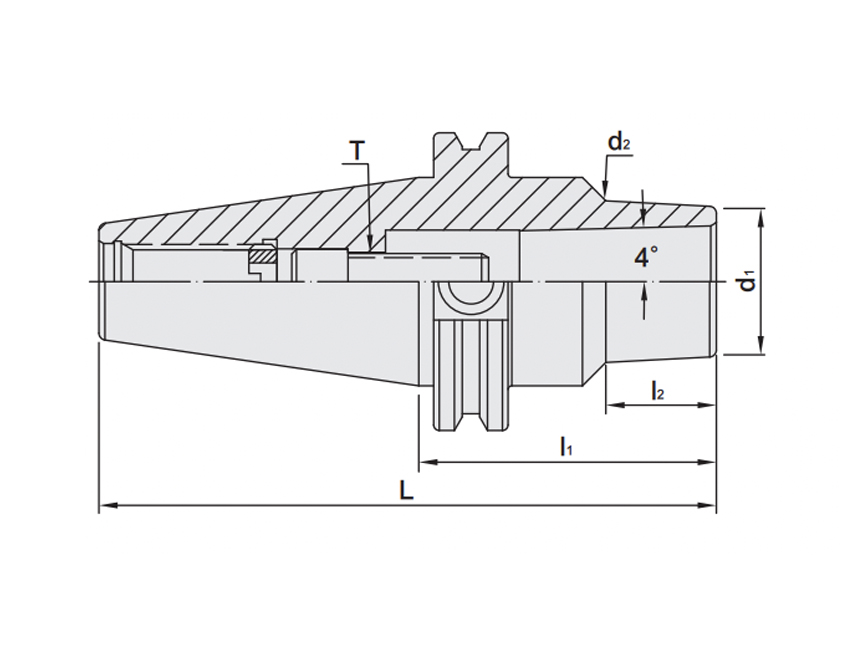

Drawings & Parameters Table



CAT50 TAPER TAPER D1 L1 FLANGE D
DRAWBAR THREAD CAT40 5/8-11 UNC 2.75″ 4″ 3.8″



Related Tool Holder

TYPEL1d1TClamping RangeWeightORDER NO
CAT40 SLM06 3.030.55M6x1.0P0.125-0.251IGSL7200
CAT40 SLM06 4.040.55M6x1.0P0.125-0.251.2IGSL7201
CAT40 SLM06 6.060.55M6x1.0P0.125-0.251.3IGSL7202
CAT40 SLM08 4.040.787M8x1.25P0.125-0.31251.1IGSL7203
CAT40 SLM08 6.060.787M8x1.25P0.125-0.31251.3IGSL7204
CAT40 SLM012 2.52.51.02M10x1.5p0.125-0.51.2IGSL7205
CAT40 SLM012 4.041.02M10x1.5p0.125-0.51.4IGSL7206
CAT40 SLM012 6.061.02M10x1.5p0.125-0.51.6IGSL7207
CAT40 SLM020 3.031.37M12x1.750.125-0.751.45IGSL7208
CAT40 SLM020 5.051.37M12x1.750.125-0.751.5IGSL7209
CAT40 SLM020 6.061.37M12x1.750.125-0.751.6IGSL7210

 Material Application

a. Quenched and tempered structural steel: The carbon content of this type of steel is generally about 0.25% to 0.55%. For structural parts of a given cross-sectional size, when quenched and tempered along the cross-section during quenching and tempering (quenching and tempering), the mechanics.The performance is good. If the hardening is not penetrated and free ferrite appears in the microstructure, the toughness decreases. For steels with a tendency to temper brittleness, such as manganese steel, chromium steel, nickel-chromium steel, etc., they should be cooled quickly after tempering. The quenching critical diameter of this type of steel increases with the increase in grain size and alloying element content. For example, 40Cr and 35SiMn steel are about 30-40mm, and 40CrNiMo and 30CrNi2MoV steel is about 60-100mm, which is often used in manufacturing Structural parts such as shafts and connecting rods with large loads.cat40 end mill holder

b. Surface hardened structural steel: used to manufacture hard and wear-resistant surface parts and flexible parts, such as gears and shafts. In order to increase the toughness of the core of the part, the carbon content in the steel should be low, generally 0.12 to 0.25%, and there is also an appropriate amount of alloy elements to ensure proper hardenability. Nitrided steel also needs to add alloy elements (such as Al, Cr, Mo, etc.) that are easy to form nitrides. Carburized or carbonitrided steel, after carburizing or carbonitriding at 850~950℃, quenched and used under low-temperature tempering (about 200℃). The nitrided steel is directly treated by nitriding (480~580℃), and it is no longer quenched and tempered.

Weight 2.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Metric (mm)

Sales Unit

set

Product Category

Slim-fit Tool Holder

Collet Series

SLIM

Holder Type

CAT40
