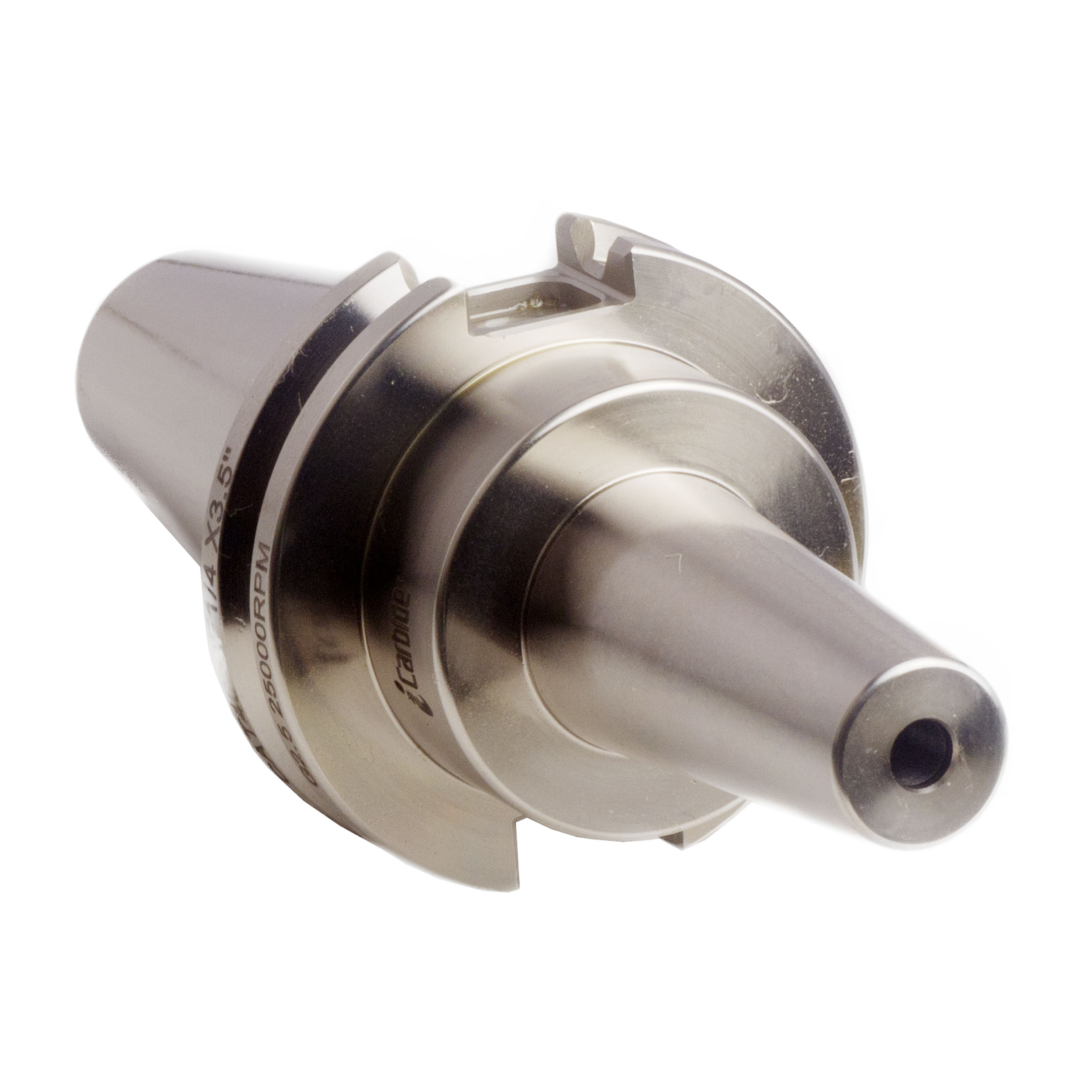

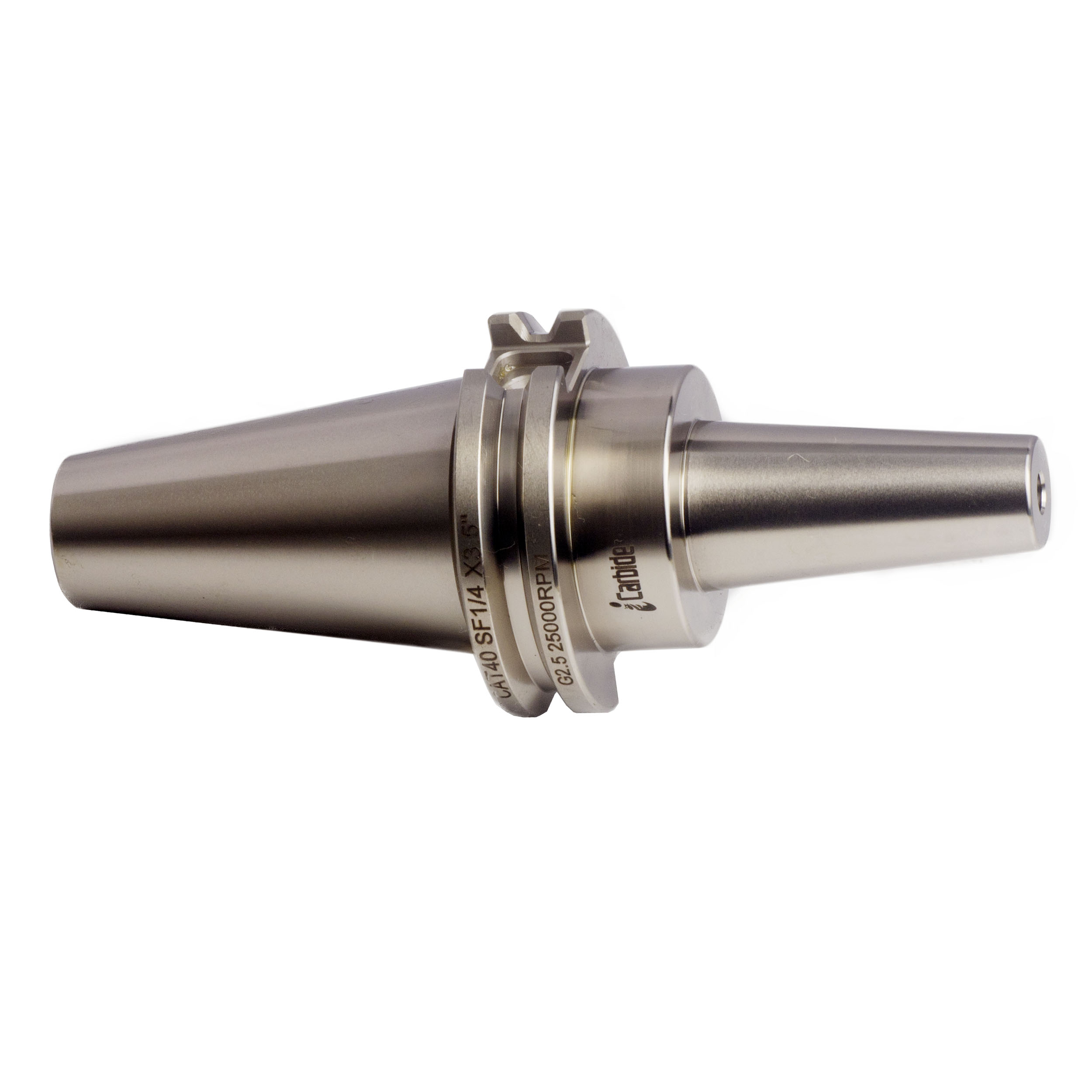

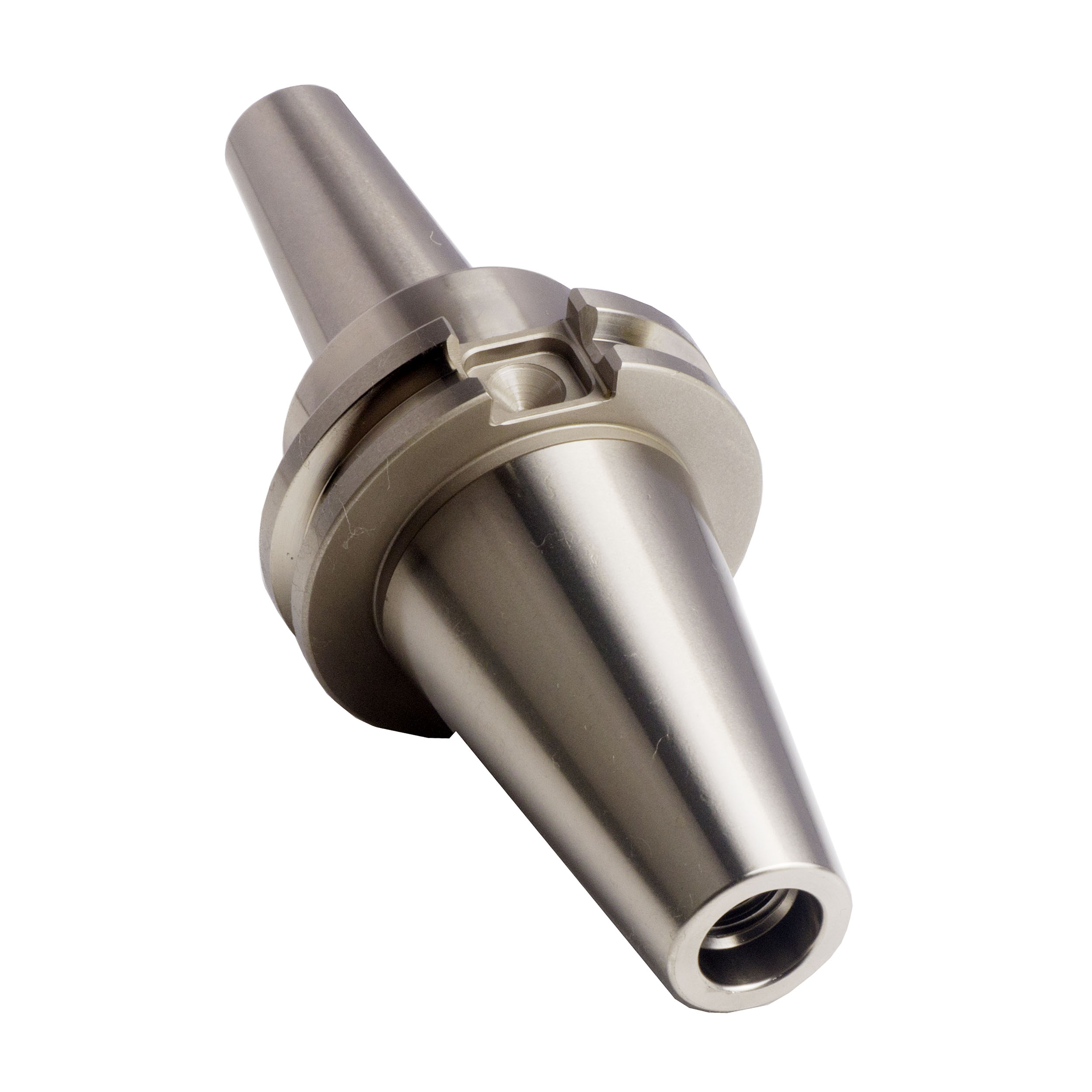

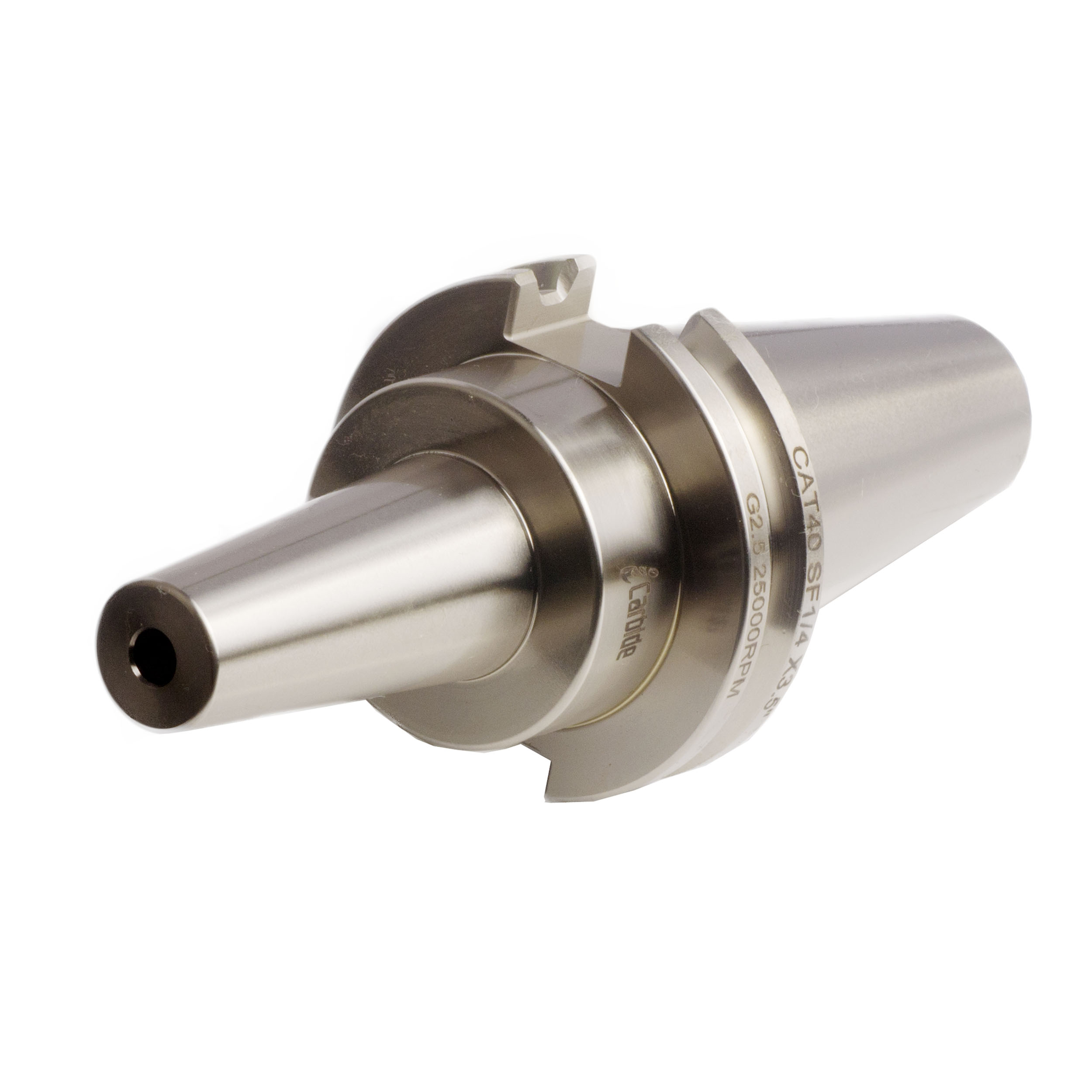

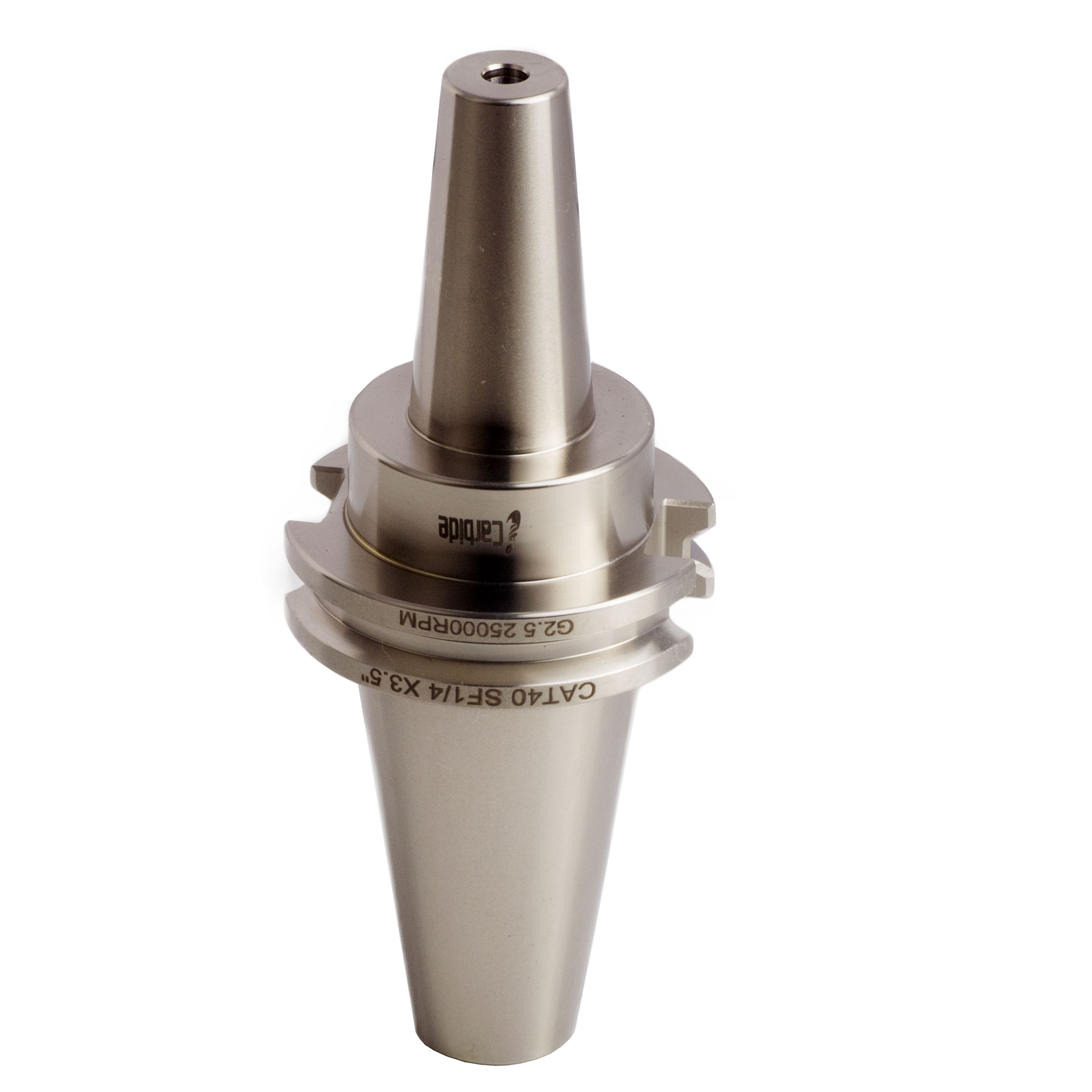

CAT40 1/4 x3.5″ SHRINK FIT TOOL HOLDER

In Stock

SKU: CAT40EM025350

$99.99

For all CAT40 Spindle Tool Holder

High Precision Run-out: TIR 2μm or 0.0001″

Hardened:  HRC58

Bore Diameter: 1/4 ”

Balance: G2.5 25000rpm

Shank Nose Diameter: 1″

Rear thread: 5/8-11

Coolant Thru : No

Gage length: 3.5″

Qty
Compare

CAT40 SHRINK FIT TOOL HOLDER HEAT HOLDER COOLANT

MODEL CAT40  1/4 X3.5″  RUN OUT (TIR) 0.0001″ NOSE  DIAMETER D 1.06″
HOLDER TYPE SHRINK FIT BORE DIAMETER 1/4″ BORE DEPTH 1.0″
SHANK TYPE CAT40 DRAWBAR THREAD 5/8-11″ NOSE  DIAMETER d 0.70″
BALANCE G2.5 25000rpm Gage Length 3.5″ COOLANT NO

Shrink fit tool holder  for all CAT40 spindle tool holder

The quality reach HAIMER shrink fit holder

Advantages of shrink tool holders:
1. Fast loading and unloading of tools, using heat shrinking machine to heat, 13KW high power can complete the tool installation and clamp within 5 seconds, cooling only 30 seconds, the unique water cooling device can prevent the accuracy of the tool holder from deteriorating.
2. High precision and small runout. The tool installation part does not have components such as nuts and collets required by collet chucks, simple and effective, cold shrinkage clamping is strong and stable, tool deflection ≤3μ, reducing tool wear and ensuring high precision during high-speed machining.

heat holder socks heat holder gloves heat holder thermal socks heat holder socks walmart ,High precision run out saving your cost-effective haimer shrink fit



Related Tool Holder

ORDER NOSHRINK FIT TOOL HOLDERBALANCESTOCK
Y /N
RUN OUT
TIR(INCH)
PRICE
IG6250CAT50 SF1.0 - 6"G2.5 25000rpmY0.0001139.99
IG6251CAT50 SF1.25 -4"G2.5 25000rpmY0.0001139.99
IG6252CAT50 SF1.5 - 6"G2.5 25000rpmN0.0001149.99
IG6253CAT50 SF3/4 - 6"G2.5 25000rpmN0.0001149.99
IG6254CAT40 SF1/2 - 3.5"G2.5 25000rpmY0.000199.99
IG6255CAT40 SF3/8 - 3.5"G2.5 25000rpmY0.000199.99
IG6256CAT40 SF1/4 - 3.5"G2.5 25000rpmY0.000199.99
IG6257CAT40 SF1/4 - 6"G2.5 25000rpmY0.0001129.99
IG6258CAT40 SF1/8 - 3.5"G2.5 25000rpmY0.0001119.99
IG6259CAT40 SF3/4 - 3.5"G2.5 25000rpmY0.000199.99
IG6260CAT40 SF3/16 - 3.5"G2.5 25000rpmY0.000199.99
IG6261SFC3/4 X 6" X Ф1/4 Y0.000179.99
IG6262SFC3/4 X 6" X Ф3/8Y0.000179.99
IG6263SFC5/8" x 6“X Ф1/8 Y0.000189.99
IG6264SFC5/8" x 6“X Ф3/16Y0.000189.99
IG6265SFC5/8" x 6“X Ф1/4Y0.000179.99
IG6266SFC1" x 6“X Ф1/4Y0.000189.99
IG6267SFC1" x 6“X Ф1/2Y0.000189.99
IG6268CAT40 SF1/2 -3.5" COOLANTG2.5 25000rpmY0.0001139.99
IG6269CAT40 SF3/8 - 3.5" COOLANTG2.5 25000rpmY0.0001139.99

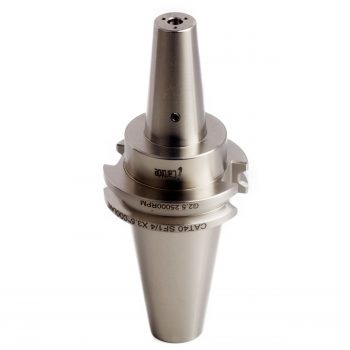

IG6270CAT40 SF1/4 -3.5" COOLANTG2.5 25000rpmY0.0001139.99
IG6271CAT40 SF1/4 -6" COOLANTG2.5 25000rpmY0.0001149.99
IG6272CAT40 SF1/8 -3.5" COOLANTG2.5 25000rpmN0.0001149.99
IG6273CAT40 SF1/8 -6" COOLANTG2.5 25000rpmN0.0001149.99

Quality Control

















Material Application

H13 steel is the most widely used and most distinctive hot work die steel. Its main characteristics are:
(1) It has high hardenability and high compensation;
(2) Excellent thermal crack resistance, water cooling can be added in the workplace;
(3) It has medium abrasion resistance, and can also use infiltration carbon or nitriding process to increase its surface hardness, but it should slightly reduce the thermal crack resistance;
(4) Due to its reduced carbon content, the secondary hardening ability during tempering is poor;
(5) It can resist softening at higher temperatures, but the hardness drops rapidly when the use temperature is higher than 540°C (1000°F) (that is, the working temperature is 540°C);

Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Inch (in)

Sales Unit

single

Product Category

Shrink Fit Tool Holder

Bore Diameter

1/4"

Holder Type

CAT40
