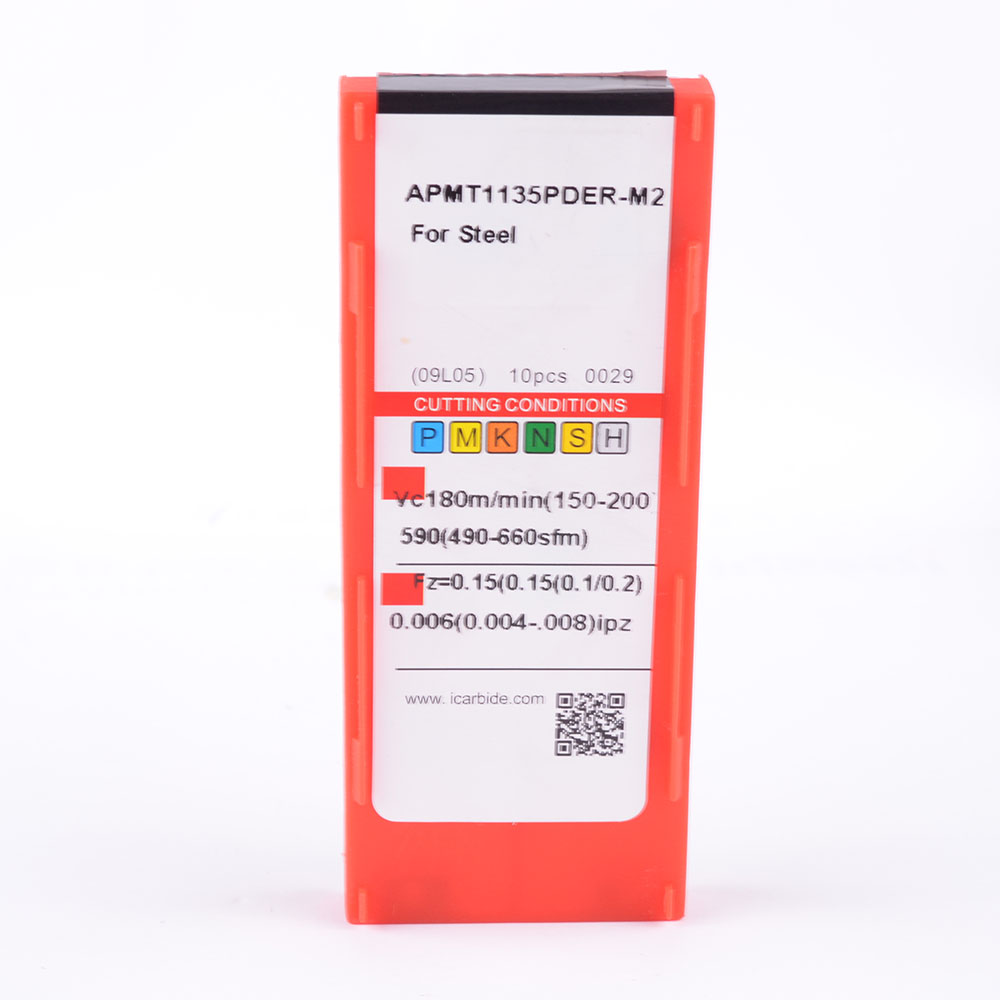

APMT1135 M2 CARBIDE INSERT MILL INSERTS

In Stock

SKU: ICM1135PD

$29.99

APMT1135M2 CARBIDE INSERT MILL INSERTS

To be used on different materials ( Alloy steel, die-casting steel, iron, carbon steel, aluminum steel, brass, Inconel)

Qty
Compare
ORDER NO ICM1135PD MATERIAL carbide
CUTTING TYPE Shoulder mill inserts INSERT SIZE 1135
INSERT TYPE APMT  LENGTH 0.44
FINISHING COATE PVD THICKNESS 0.137
ISO STANDARD NO APMT1135M2 THRU HOLE 0.11
ANSI NO APKT1135PDER CORNER RADIUS 0.03
CHIP BREAKER PM INSERT WIDTH 0.33
BRAND iCarbide PACK 10PCS

APMT1135M2 CARBIDE INSERT MILL INSERTS

The end face and outer circle of the face milling cutter perpendicular to the tool holder have cutting edges, which are mainly used for plane milling. The outer cutting edge is the main cutting edge, and the cutting edge on the end face plays the same role as the scraper. Compared with sleeve end mills, face milling cutters have a shorter edge.

High-speed steel face milling cutters are generally used to machine flat surfaces of medium width. The standard milling cutter diameter ranges from 2″ to 10″. The cutting efficiency and machining quality of cemented carbide face milling cutters are higher than that of high-speed steel milling cutters. Therefore, cemented carbide face milling cutters are widely used to process planes.

carbide insert MILL INSERTS CARBIDE BITS

Cutting Grade and Condition

KMPSN
Cast IronStainless steelcarbon steelHeat-resistance alloyNonferrous steel
Workpiece materialCarbide Insert GradeV(SFPM)fn(mm/rev)
low carbon steel
soft steel
IG701
IG601
900(700-1200) 0.006(0.004-0.008)
stainless steelIG701700(600-1000) 0.006(0.004-0.008)
Tool steel IG701
IG201
700(600-1000) 0.006(0.004-0.008)
Cast ironIG701
IG601
IG201
700(400-1000) 0.006(0.004-0.008)
inconel steel IG701800(600-1000) 0.006(0.004-0.008)
ALumimum ,brass ,plastic, solf steelIG101900(80--1300) 0.008(0.004-0.008)

Tungsten Material Tungsten  (WC+Co) hard alloy (YG)


It has high toughness of flexural strength and good thermal conductivity, but has a poor heat resistance and wear resistance. It is mainly used for processing cast iron and non-ferrous metals. Fine-grained YG cemented carbide  (such as YG3X, YG6X), when the cobalt content is the same, its hardness and wear resistance are higher than  YG3 and YG6, and its strength and toughness are slightly worse. It is suitable for processing hard cast iron and austenitic stainless steel. , Heat-resistant alloy, hard bronze, etc.











Ionbond provides thin-film coating services and operates, includes PVD, PACVD, CVD, CVA, and CVI technologies,
including a broad range of DLC coatings. Please contact us for further information.

We look forward to serving you

carbide inserts carbide bit,vbmt insert,tcmt insert,dcmt insert
mill inserts,sandvik inserts,carbide insert chart,apmt1135,apkt1135
apmt1604 /wnmg/tnmg insert,ccmt insert,ccmt060204,
carbide insert cnmg insertkennametal inserts,dcmt070204

Weight 0.2 lbs
Dimensions 15 × 45 × 65 in
Sales Unit

set

Product Category

Square Milling insert
