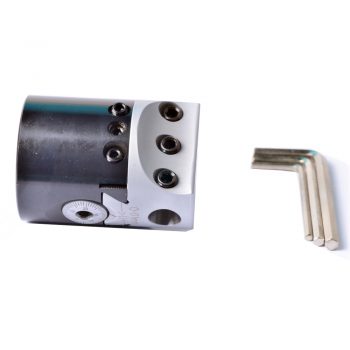

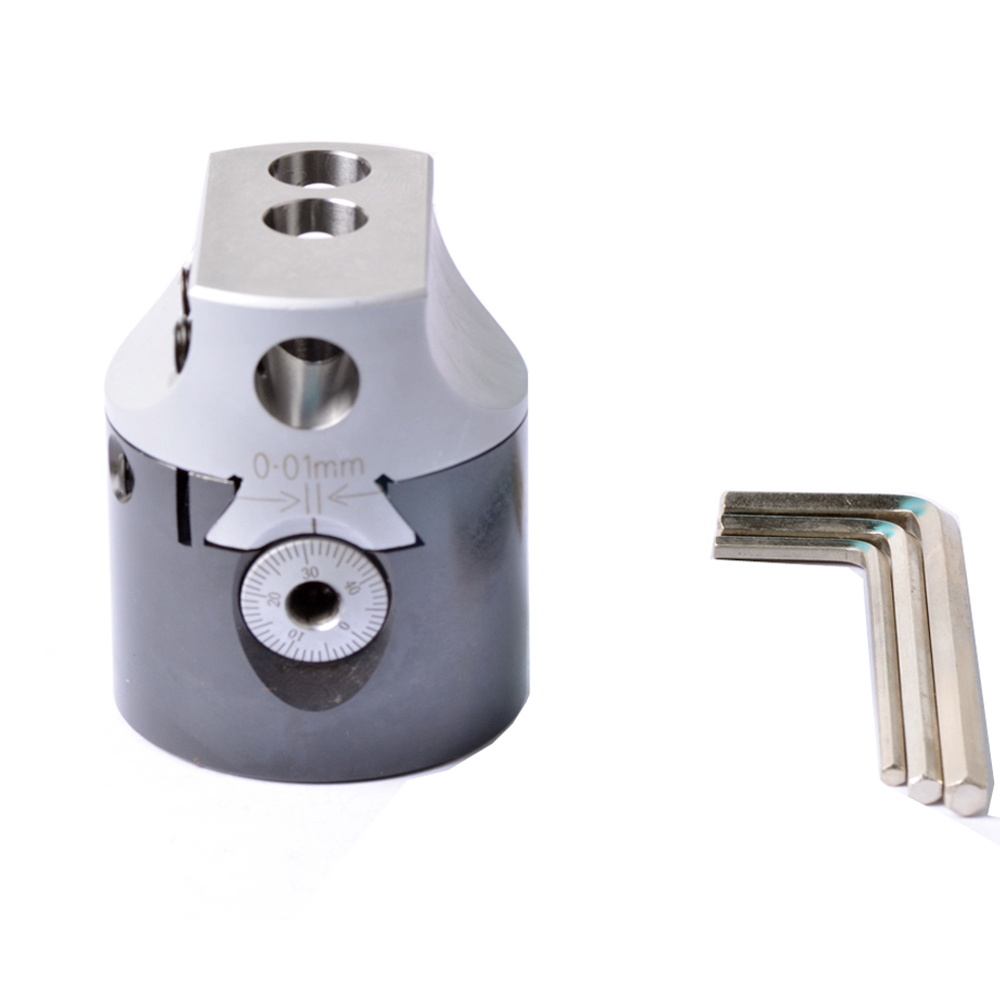

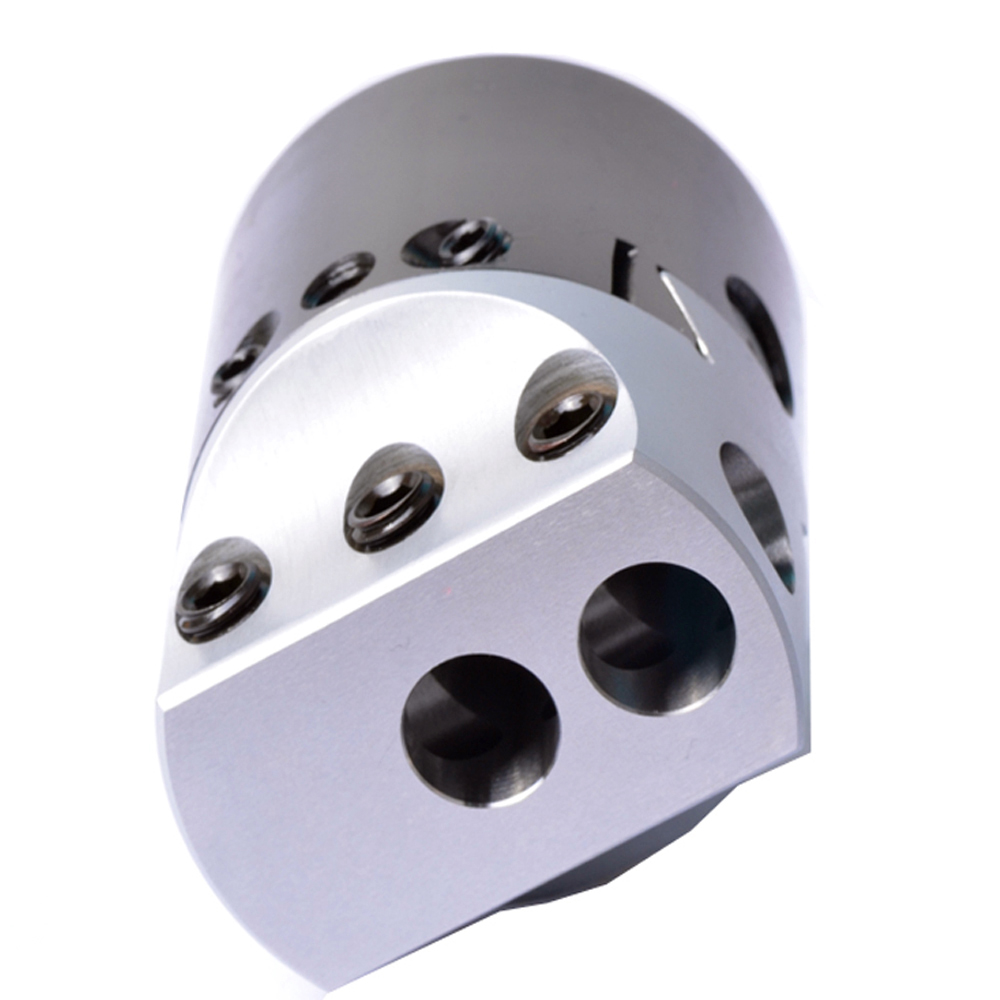

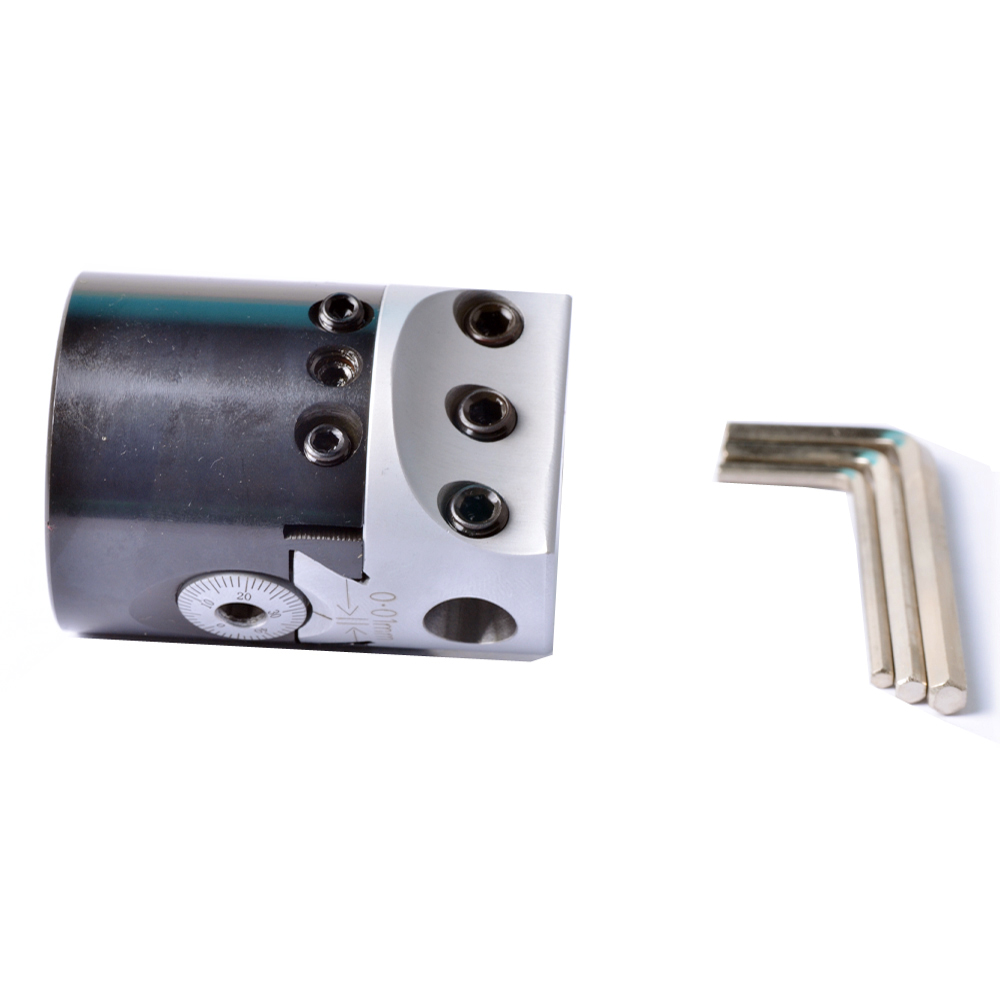

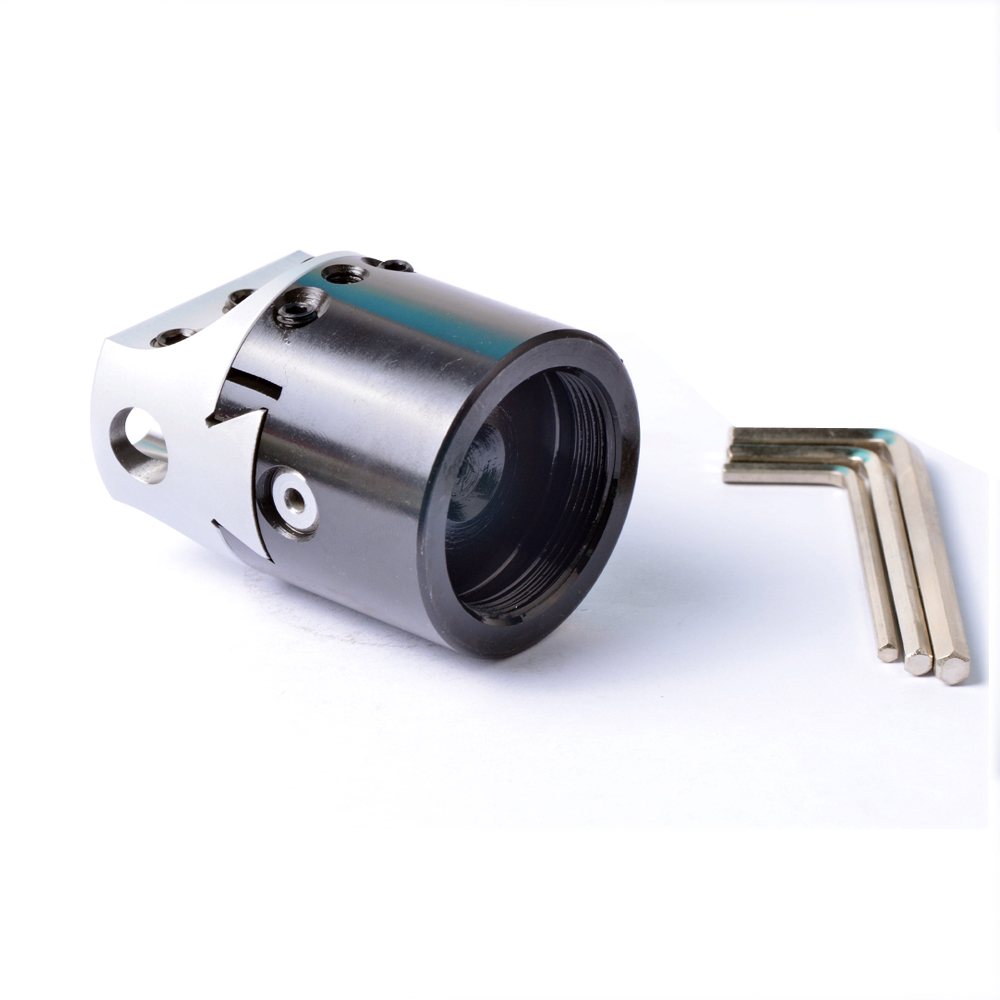

75MM PRECISION BORING HEAD BORING TOOL 0.01MM

In Stock

SKU: 75MMHEAD

$69.99

75MM PRECISION BORING HEAD BORING TOOL

Qty
Compare

75MM PRECISION BORING HEAD BORING TOOL

MODEL PRECISION BORING HEAD  RUN OUT (TIR) 0.01MM
HOLDER TYPE BORING  TOOL HOLDER HOLE ACCEPT 18mm
SHANK TYPE ACCEPT F1 BORING HEAD  DRAWBAR THREAD 1-1/2-18UNF
CUTTING FLUTE 1 GRADUATION 0.01mm
BORING RANGE 1-150mm MAX OFFSET 25MM

4inch boring head

Adjustable rough boring head

Boring graduation 0.01MM   increased

            NO             MODEL BORING RANGE

Hole Accept



    ACCEPT  THREAD  L   L1
F1 2″  1/2-4″  1/2 1-1/2-18 2″ 2″
F1 3″ 3/4-6″  3/4 1-1/2-18 3″ 3″
F1 4″ 1.0″x 10″  1.0″ 1-1/2-18 4″ 4″
F1 50MM 12-100MM 12 1-1/2-18 50 50
F1 75MM 18-150MM 18 1-1/2-18 75 75
F1 100MM 25-200MM 25 1-1/2-18 100 100



 Material Application

a. Quenched and tempered structural steel: The carbon content of this type of steel is generally about 0.25% to 0.55%. For structural parts of a given cross-sectional size, when quenched and tempered along the cross-section during quenching and tempering (quenching and tempering), the mechanics.The performance is good. If the hardening is not penetrated and free ferrite appears in the microstructure, the toughness decreases. For steels with a tendency to temper brittleness, such as manganese steel, chromium steel, nickel-chromium steel, etc., they should be cooled quickly after tempering. The quenching critical diameter of this type of steel increases with the increase in grain size and alloying element content. For example, 40Cr and 35SiMn steel are about 30-40mm, and 40CrNiMo and 30CrNi2MoV steel is about 60-100mm, which is often used in manufacturing Structural parts such as shafts and connecting rods with large loads.cat40 end mill holder

b. Surface hardened structural steel: used to manufacture hard and wear-resistant surface parts and flexible parts, such as gears and shafts. In order to increase the toughness of the core of the part, the carbon content in the steel should be low, generally 0.12 to 0.25%, and there is also an appropriate amount of alloy elements to ensure proper hardenability. Nitrided steel also needs to add alloy elements (such as Al, Cr, Mo, etc.) that are easy to form nitrides. Carburized or carbonitrided steel, after carburizing or carbonitriding at 850~950℃, quenched and used under low-temperature tempering (about 200℃). The nitrided steel is directly treated by nitriding (480~580℃), and it is no longer quenched and tempered.

Weight 1.5 lbs
Dimensions 15 × 45 × 65 in
Measurement system

Metric (mm)

Sales Unit

single

Product Category

Boring Head

Boring Diameter

75mm
