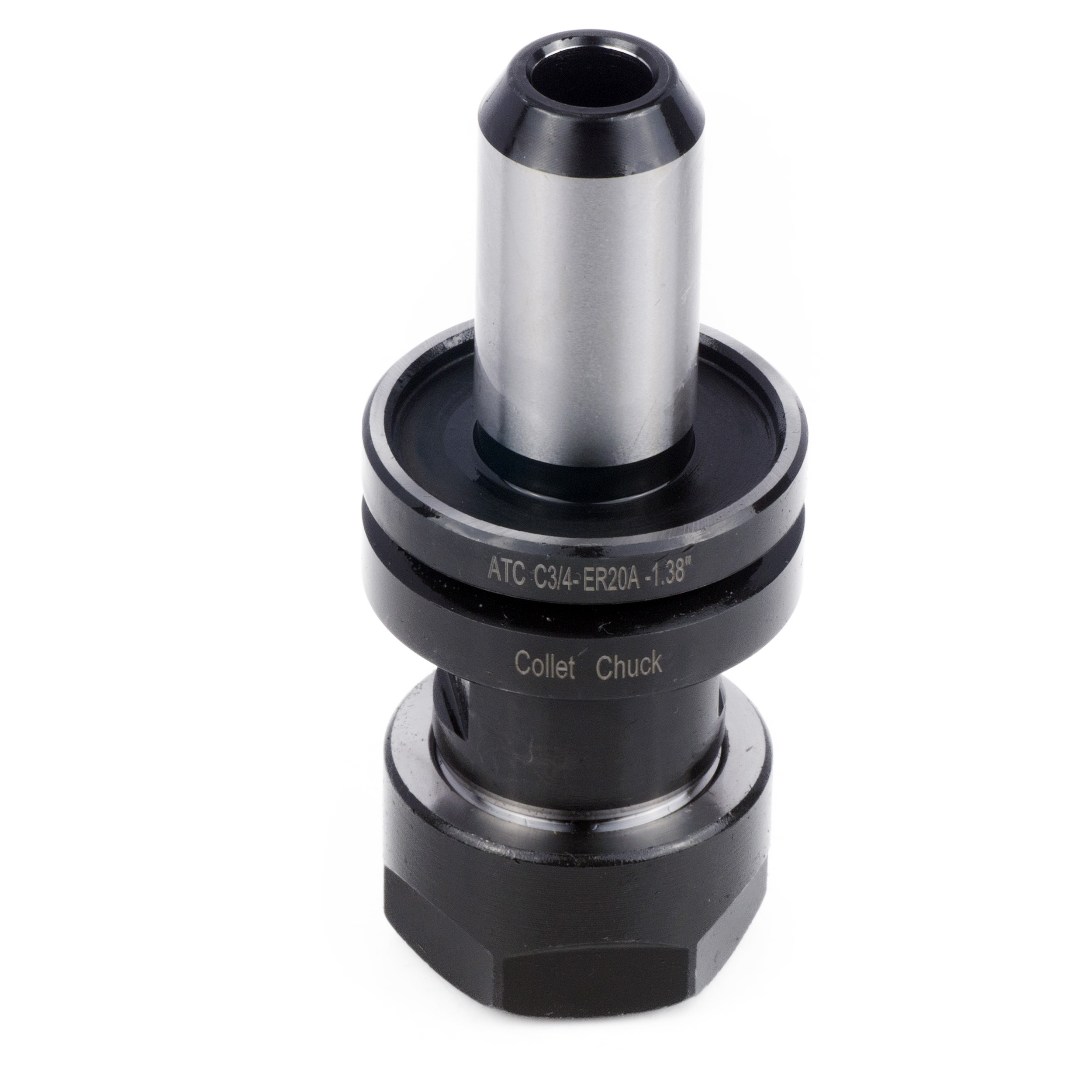

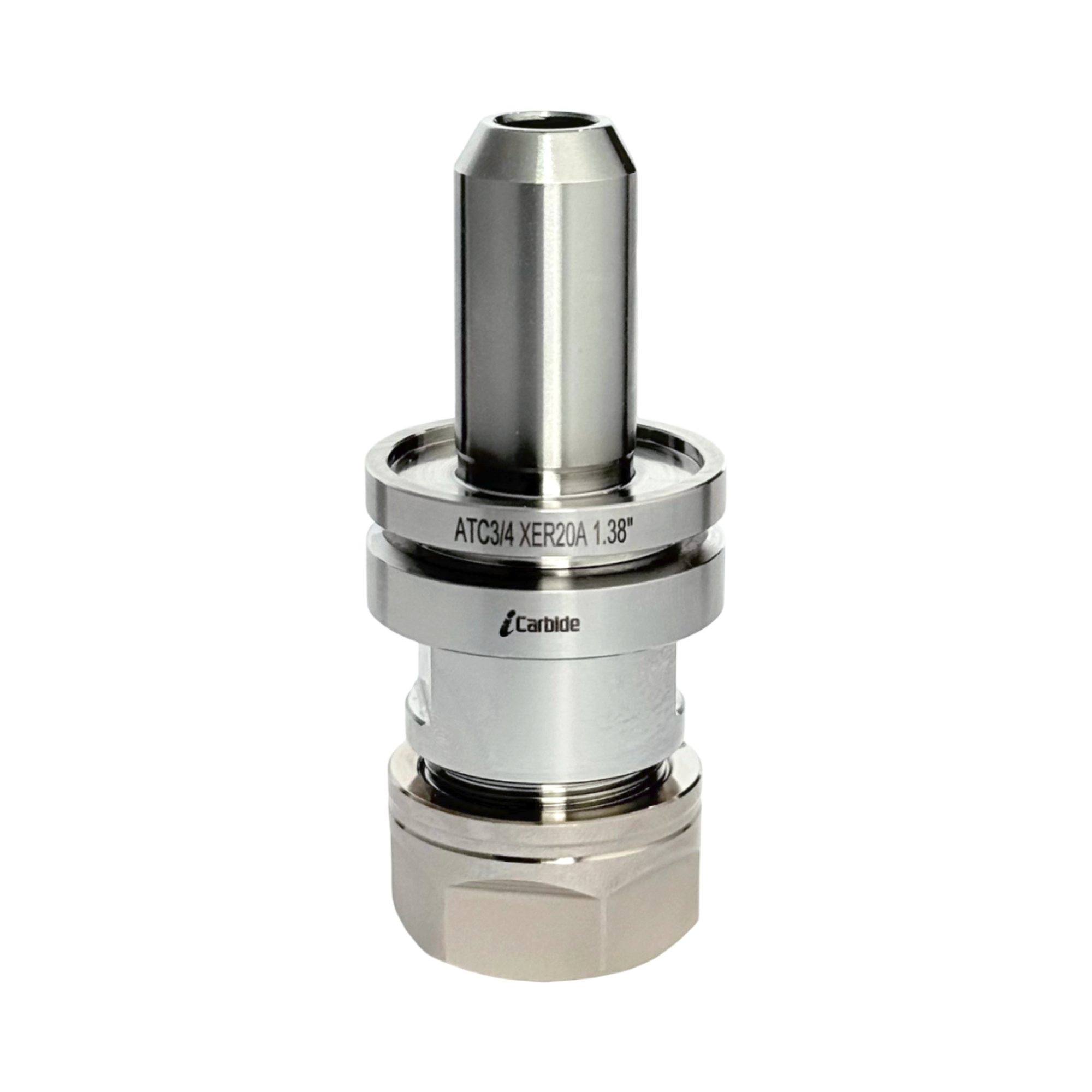

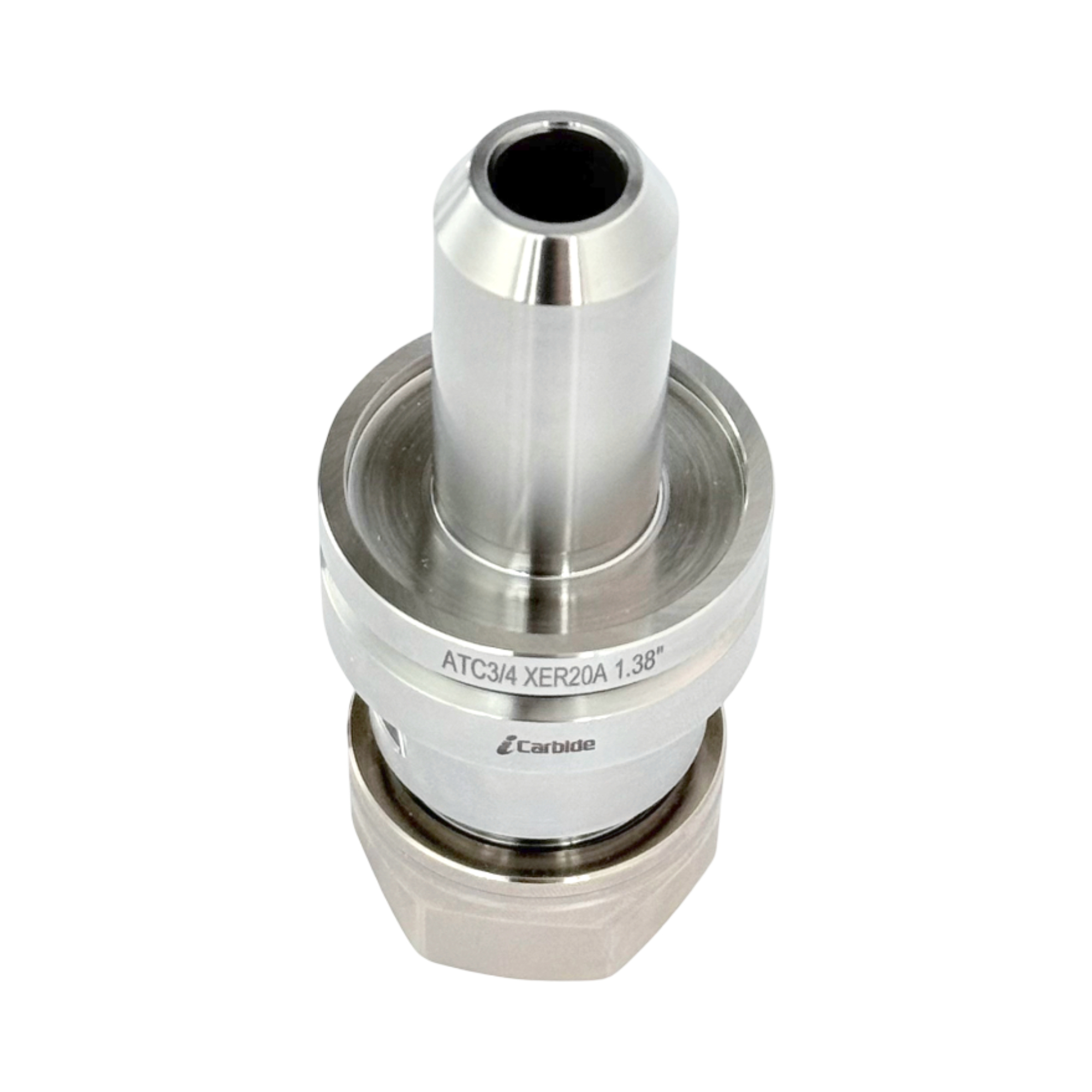

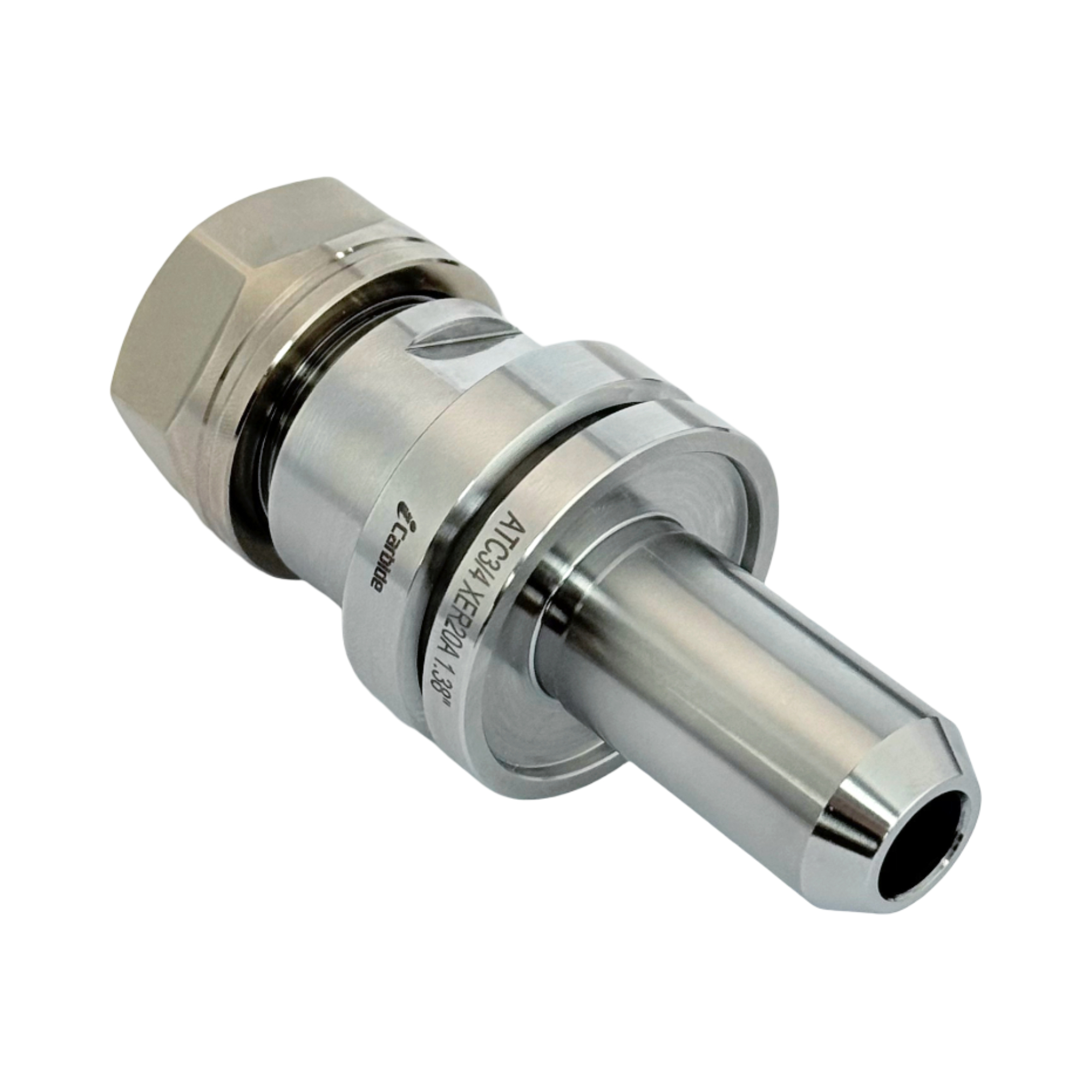

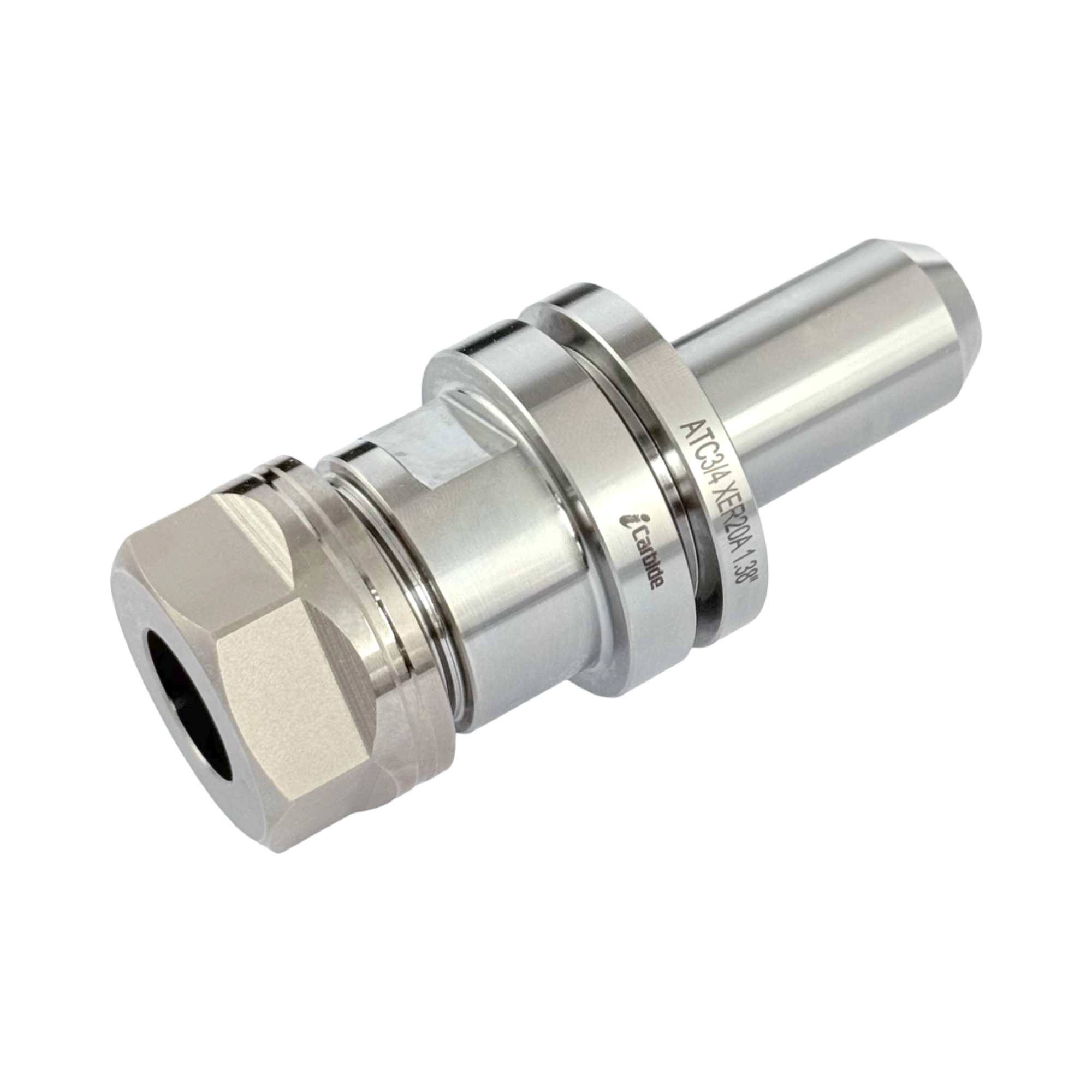

3/4″ X 1.38″ ER20 STRAIGHT SHANK COLLET CHUCK EXTENSION HOLDER
| MODEL | ER25 COLLET CHUCK | RUN OUT (TIR) | 0.0002″ | FLANGE DIAMETER | 1.1″ |
| HOLDER TYPE | ER COLLET CHUCK | CLAMPING RANGE | 3/16-1/2″ | CLAMPING SIZE | ER20 |
| SHANK TYPE | STRAIGHT TOOL HOLDER | DRAWBAR THREAD | NO | COLLET NUT | ER20 UM |
| BALANCE | MAX 12,000RPM | SHANK DIAMETER | 3/4 | COLOR | oxide black |
| OVERALL LENGTH | 2.88″ | SHANK LENGTH | 1.38″ | ATC GROOVE | YES |
STRAIGHT SHANK COLLET CHUCK EXTENSION HOLDER
For all er20 collets

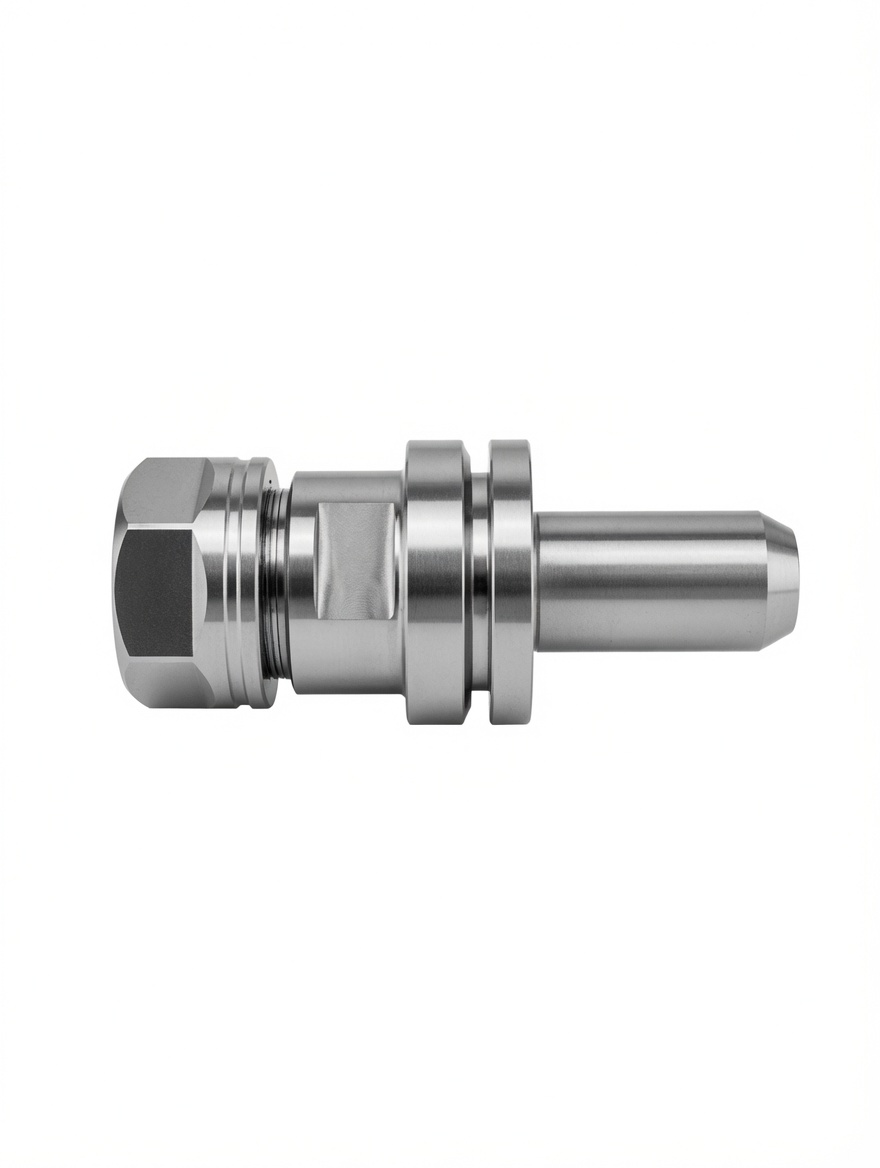

Flange is 1.5″ with groove for TTS Tormach machine
Made from alloy steel and hardness is HRC55
Coolant thru all the shank with M16 drawbar thread

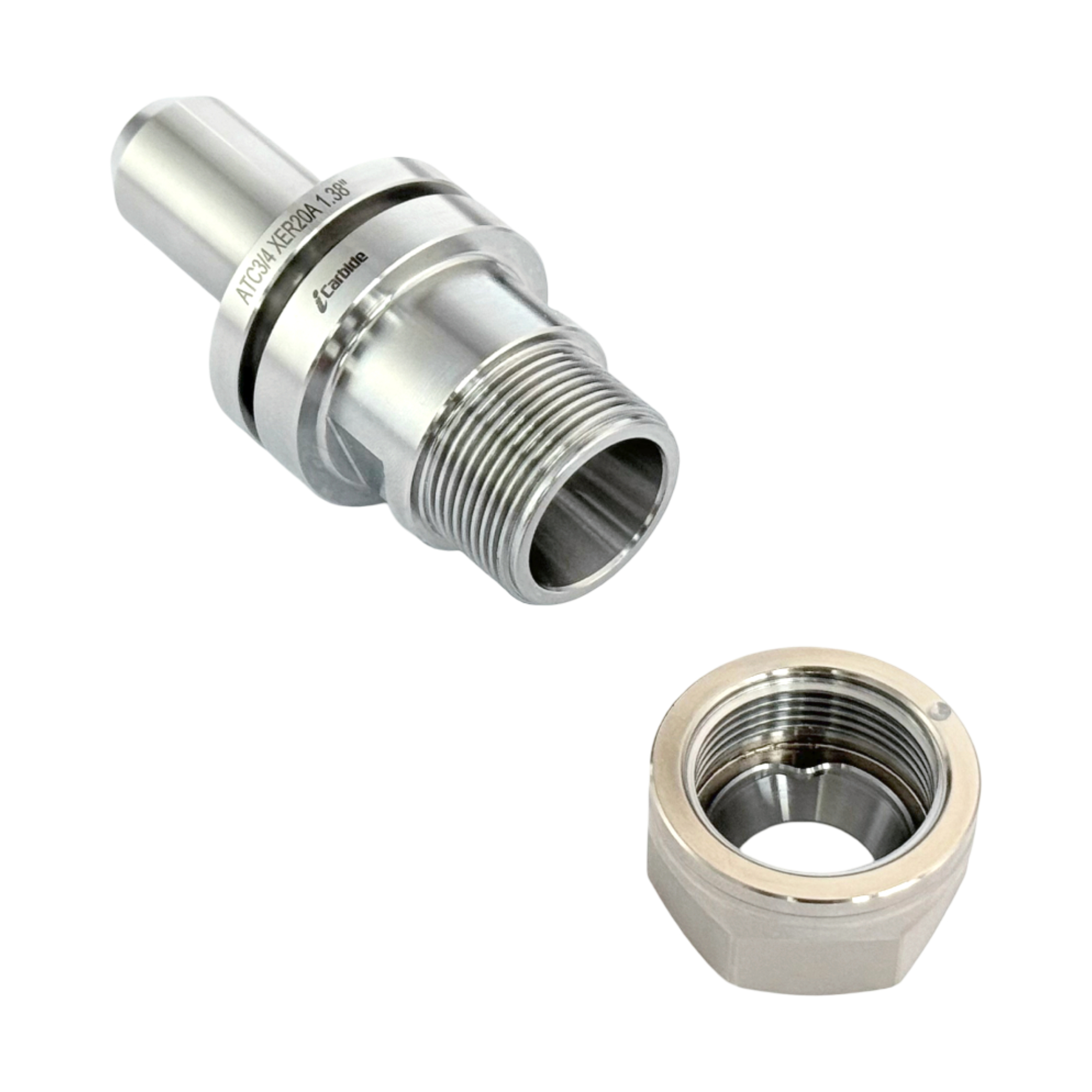

Nut included
